TRICONEX 3604E Replacement for Tricon TMR Series

Product Overview

TRICONEX 3604E Replacement for Tricon TMR Series: Smooth Migration & Legacy System Upgrade

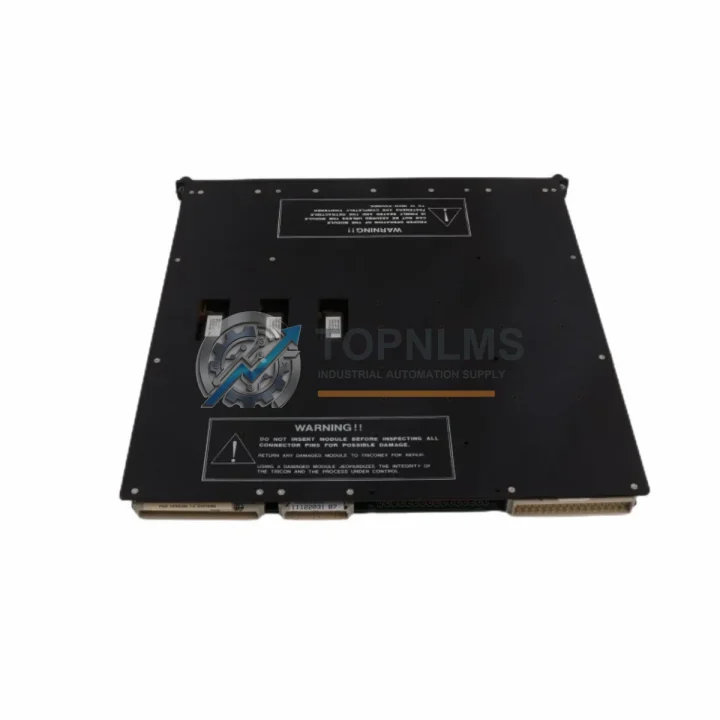

The TRICONEX 3604E is a 32-channel digital output module designed for the Tricon Triple Modular Redundant (TMR) safety system platform. As aging Tricon systems approach end-of-life or as facilities undertake safety instrumented system (SIS) modernization projects, the 3604E serves as a direct replacement or upgrade path for discontinued output modules such as the 3604 and 3601. Whether your plant is running a legacy Tricon v9 or v10 controller chassis, this module integrates without requiring rewiring of field termination assemblies, significantly reducing planned maintenance windows and unplanned downtime.

The 3604E maintains backward compatibility with the standard Tricon main chassis and expansion chassis configurations. Field wiring connected to the associated TRICONEX 3703E or 3721 termination panels remains intact during module swap, as the 3604E uses the same 32-point output mapping and connector pinout as its predecessors. This is a critical advantage for brownfield retrofit projects where modifying field cable schedules would introduce unacceptable schedule risk or require re-validation of the safety loop.

For facilities migrating from older Tricon systems to a modernized architecture, the 3604E is frequently deployed alongside the TRICONEX 3008 main processor module and the TRICONEX 3503E digital input module to form a complete I/O refresh without replacing the entire controller chassis. In multi-chassis configurations, the module communicates over the Tricon high-speed backplane bus, maintaining synchronization across all three redundant legs — a fundamental requirement for IEC 61511 SIL 2 and SIL 3 certified loops.

When upgrading communication infrastructure in parallel with I/O modernization, the TRICONEX 4351B or 4352A communication modules can be installed in the same chassis to enable Modbus TCP or OPC DA/UA connectivity to the DCS historian or SCADA layer — without interrupting the safety function of the 3604E output channels. This architecture is common in oil & gas, petrochemical, and LNG facilities where the safety layer must remain isolated from the process control network while still providing diagnostic data to the control room.

Physical installation of the 3604E follows the standard Tricon hot-swap procedure. The module can be inserted and removed under power in a redundant chassis without affecting the other two legs, provided the replacement is completed within the system’s configured fault-tolerant window. No special tools are required beyond a standard flat-blade screwdriver for the module locking tab. The module draws power from the chassis backplane, supplied by the TRICONEX 8312 or 8310 power supply modules — no separate field power wiring to the module itself is needed.

For facilities that have already migrated their Tricon main processors to the Tricon CX platform, the 3604E remains compatible with the legacy I/O chassis when used in a mixed-generation architecture. This allows a phased migration strategy: upgrade the controller first, validate the safety functions, then replace I/O modules on a planned maintenance schedule rather than a forced outage basis. The TRICONEX 3625 or 3664 analog output modules can be refreshed in the same maintenance window if the project scope includes analog loop modernization.

From a procurement and supply chain perspective, the 3604E is available from stock with lead times significantly shorter than OEM factory orders for new production units. Each unit shipped by TOPNLMS undergoes functional verification testing prior to dispatch, including output channel continuity checks and backplane interface validation. Units are shipped in anti-static packaging with full documentation. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete Tricon TMR system modernization typically involves more than a single module swap. When replacing the 3604E, engineers commonly address adjacent components in the same maintenance window to maximize system reliability and minimize future outage risk. The TRICONEX 3503E digital input module is the natural counterpart to the 3604E in a mixed I/O refresh, providing 32-channel TMR digital input capability on the same chassis backplane. For facilities with analog measurement loops, the TRICONEX 3703E termination panel and TRICONEX 3625 analog output module are frequently replaced in parallel to standardize the I/O generation across the chassis.

Main processor upgrades are often scoped alongside I/O refreshes. The TRICONEX 3008 main processor module provides enhanced diagnostic capability and extended firmware support compared to earlier 3006 or 3007 variants, and is compatible with the same chassis accepting the 3604E. Power supply integrity is equally critical in a TMR architecture — the TRICONEX 8312 power supply module should be inspected and replaced if it has exceeded its recommended service interval, as power supply failures are a leading cause of spurious trips in aging Tricon systems.

For sites adding network connectivity during the modernization, the TRICONEX 4351B communication module enables Modbus TCP integration to the plant DCS or SCADA without compromising the safety layer isolation. Programming cable sets compatible with the Tricon TriStation 1131 engineering workstation are also available to support on-site configuration verification and loop testing following module replacement.

Retrofit Guidance FAQ

Q: Do I need to rewire field cables when replacing a 3604 with a 3604E?
A: No. The 3604E uses the same termination panel interface (3703E or 3721) and the same 32-point output mapping. Field wiring remains unchanged.

Q: Is a program download required after module replacement?
A: In a hot-swap scenario within a running TMR chassis, no program download is required. The replacement module synchronizes automatically with the other two legs via the backplane.

Q: Is the 3604E compatible with both Tricon v9 and v10 chassis?
A: Yes. The 3604E is compatible with standard Tricon main chassis and expansion chassis across v9 and v10 generations. Verify chassis firmware revision against the module compatibility matrix in the Tricon Hardware Reference document.

Q: What communication protocols does the Tricon system support when using the 3604E?
A: The 3604E itself is an I/O module and does not handle communication protocols directly. Protocol support (Modbus RTU, Modbus TCP, OPC) is managed by the communication modules (e.g., 4351B, 4352A) installed in the same chassis.

Q: Will the 3604E fit in the same slot as the original 3604?
A: Yes. The 3604E occupies a standard Tricon I/O slot and has the same physical form factor as the 3604, requiring no chassis modification.

Q: How do I verify the module is functioning correctly after installation?
A: Use the TriStation 1131 engineering workstation to monitor module status and output channel diagnostics. The Tricon system will report any channel faults or communication errors via the main processor diagnostic interface.

Warranty Assurance

Every TRICONEX 3604E unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including output channel continuity testing and backplane interface checks. Units are packaged in anti-static, shock-resistant materials suitable for international air and sea freight.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection confirming the failure is not due to mishandling, incorrect installation, or operation outside specified parameters. Our technical team is available to support pre-installation verification, on-site commissioning questions, and post-installation diagnostic review.

For urgent replacement requirements — including unplanned outages and emergency maintenance windows — expedited shipping is available from our Xiamen warehouse to destinations worldwide. Most in-stock units can be dispatched within 24 hours of order confirmation.

Contact our industrial automation procurement team for volume pricing, lead time confirmation, and technical compatibility verification before placing your order.
