TRICONEX 3501E Replacement/Upgrade Solution for Tricon TMR

Product Overview

TRICONEX 3501E Replacement/Upgrade Solution for Tricon TMR: Smooth Migration from Legacy Safety Systems

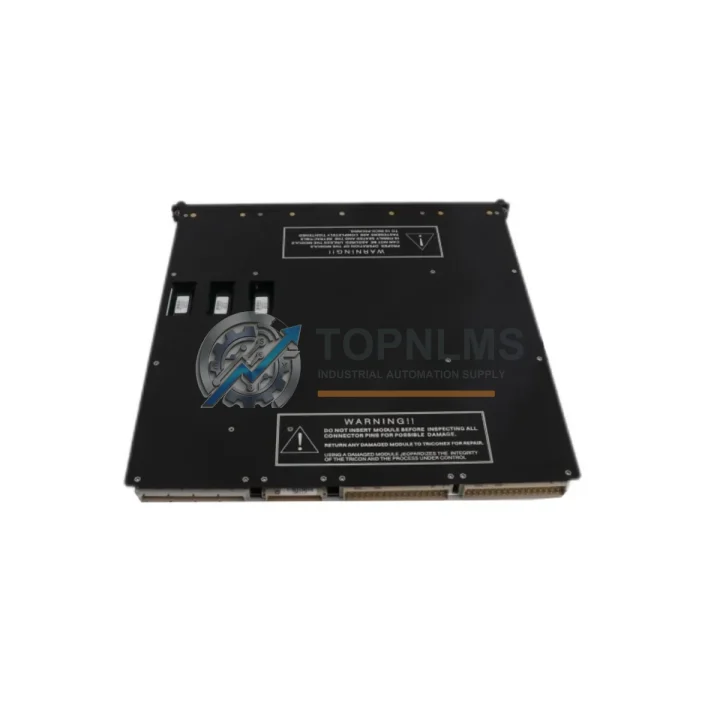

The TRICONEX 3501E is a 32-channel digital input module designed for the Tricon Triple Modular Redundant (TMR) safety system platform, rated to SIL 3 under IEC 61511. As aging Tricon installations approach end-of-support milestones, plant engineers and reliability teams are actively planning migration paths that preserve existing wiring infrastructure, minimize control-cabinet rework, and avoid extended process shutdowns. This page provides a structured upgrade and replacement guide for facilities transitioning away from discontinued or aging Tricon I/O modules to the 3501E — or sourcing a verified replacement unit to maintain an operational spare pool.

The 3501E occupies a standard Tricon I/O slot and accepts 32 discrete 24 VDC digital input signals across its field wiring terminals. Its TMR architecture internally votes across three independent input channels, delivering fault-tolerant signal acquisition without requiring external voting logic. When replacing a failed or end-of-life TRICONEX 3501 or 3503E module, the 3501E is a direct slot-compatible substitute — no backplane rewiring, no chassis modification, and no firmware re-parameterization of the safety application is required in most Tricon v9 and v10 controller configurations.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Tricon system migration rarely involves a single module swap. In practice, upgrading to the 3501E is part of a broader I/O refresh that may also involve replacing adjacent modules within the same chassis. Facilities commonly pair the 3501E with the TRICONEX 3601E digital output module to maintain a consistent SIL 3 I/O layer across the same rack. Where analog process signals feed into the safety loop, the TRICONEX 3700A analog input module provides the corresponding upgrade path for 4–20 mA field instruments.

Communication between the Tricon controller and the distributed control system (DCS) or SCADA layer typically runs over the Tricon Communication Module (TCM) — commonly the 4351B or 4352 variant — which handles Modbus TCP, OPC, and proprietary Triconex protocols. Ensuring the TCM firmware is current before performing an I/O module swap prevents protocol handshake issues during post-replacement loop checks. For installations where the Tricon Main Processor (MP) — such as the 3008 — is also approaching end-of-life, a coordinated MP and I/O upgrade reduces total downtime compared to sequential replacements.

Field wiring termination is handled through the Tricon Terminal Panel (TP) or marshalling cabinet, which in most brownfield installations can be retained without modification when swapping to the 3501E. Where signal conditioning is required — for example, when integrating legacy 2-wire sensors that previously connected to a non-TMR I/O subsystem — a signal isolator or barrier module (such as a Pepperl+Fuchs or MTL Zener barrier) may be inserted at the marshalling level without altering the Tricon backplane configuration. Power supply continuity is maintained through the existing Tricon Power Module (e.g., 8310), which supports the 3501E’s power draw within standard chassis loading limits.

For facilities running a hybrid architecture — where the Tricon safety system interfaces with a Honeywell Experion, Emerson DeltaV, or Yokogawa CENTUM DCS — the upgrade path for the 3501E does not require changes to the DCS configuration, as the safety system presents the same logical I/O map to the DCS gateway after module replacement. Programming tools such as TriStation 1131 are used to verify I/O channel assignments and force-test individual input channels during commissioning, without requiring a full application re-download in most cases.

Retrofit Guidance FAQ

Q: Can I replace the 3501E online without shutting down the process?
A: Yes. The Tricon TMR architecture supports online module replacement (hot-swap) while the safety application continues to execute. The remaining two legs of the TMR triad maintain voted output integrity during the swap window. Follow the Triconex hot-swap procedure and verify all three legs are healthy before and after replacement.

Q: Do I need to re-download the TriStation application after installing the 3501E?
A: In most Tricon v9 and v10 configurations, no re-download is required. The controller automatically recognizes the replacement module and resumes normal I/O scanning. Confirm module type recognition in the TriStation I/O status screen before returning the loop to automatic control.

Q: Is the field wiring compatible — can I reuse existing terminal connections?
A: Yes. The 3501E uses the same Tricon terminal panel interface as the 3501. Existing 24 VDC discrete wiring, cable shields, and terminal block assignments are retained without modification.

Q: What communication protocols does the 3501E support?
A: As a digital input module, the 3501E communicates exclusively over the Tricon internal backplane bus. External protocol handling (Modbus, OPC-DA/UA, HART) is managed by the TCM and is unaffected by an I/O module replacement.

Q: Will the 3501E fit in the same chassis slot as the 3501 or 3503E?
A: Yes. The 3501E conforms to the standard Tricon I/O module form factor and occupies the same slot position. No chassis modification, slot adapter, or additional mounting hardware is required.

Q: How do I verify the replacement module before installation?
A: TOPNLMS performs outgoing functional testing on all Tricon modules prior to shipment. Upon receipt, inspect the module for physical damage, verify the part number label, and use TriStation to confirm module recognition in a bench test chassis or the live system before committing to the hot-swap procedure.

Warranty Assurance

Every TRICONEX 3501E unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Pre-shipment testing includes functional verification of all 32 input channels, backplane connector integrity inspection, and firmware version confirmation. If a unit exhibits any defect in materials or workmanship within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost to the buyer.

Our procurement assurance program is designed for industrial buyers who require documented traceability: each unit ships with a test report, and serialized units include original manufacturer labeling. Lead times are confirmed at order placement, with standard shipment from Xiamen within 3–5 business days for in-stock units. Expedited air freight is available for emergency breakdown situations. For large-volume spare pool orders or blanket purchase agreements, contact our sales team directly to discuss pricing, staggered delivery schedules, and consignment options.

TOPNLMS supports B2B buyers across petrochemical, oil & gas, power generation, water treatment, and discrete manufacturing sectors. Our technical team can assist with cross-reference verification, compatibility confirmation, and retrofit planning documentation upon request.
