TOSHIBA MG50Q2YS91 Ruggedized IGBT Power Module

Product Overview

TOSHIBA MG50Q2YS91 Ruggedized IGBT Power Module for Harsh Industrial Environments

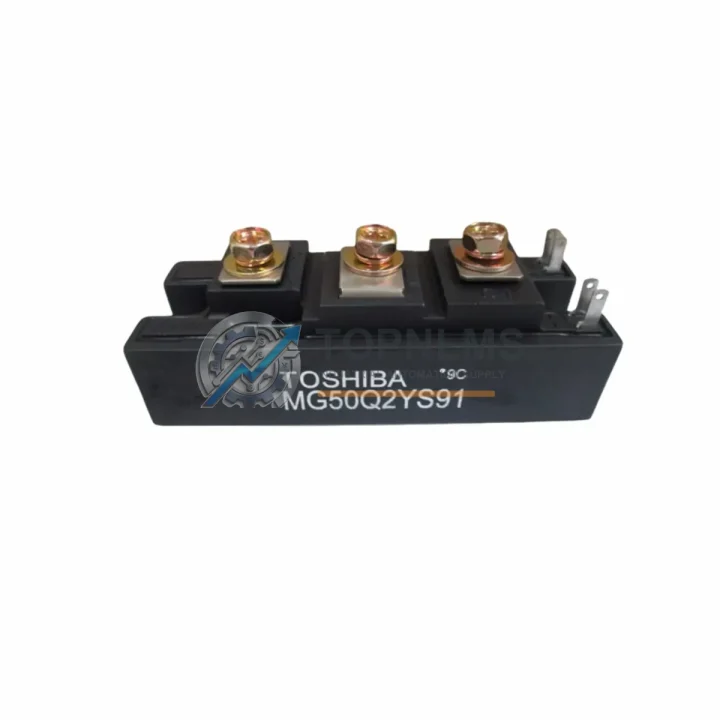

The TOSHIBA MG50Q2YS91 is a 600V / 50A half-bridge IGBT power module engineered for continuous, reliable operation in the most demanding industrial environments. Designed under TOSHIBA’s proven MG-Series platform, this module delivers exceptional switching performance, thermal stability, and electromagnetic immunity — making it the preferred choice for engineers and procurement specialists who cannot afford unplanned downtime in critical production systems.

Whether deployed in high-temperature foundry floors, high-humidity coastal processing plants, dust-laden mining tunnels, or vibration-intensive heavy machinery, the MG50Q2YS91 maintains stable gate-drive response and low switching losses across its full operating range. Its ruggedized ceramic substrate and hermetically sealed package resist moisture ingress, particulate contamination, and mechanical shock — key requirements for IEC 61508-compliant safety architectures and SIL-rated control systems.

In modern industrial automation, the MG50Q2YS91 serves as the power switching core within variable frequency drives (VFDs), servo amplifiers, and regenerative braking units. When integrated into a control cabinet alongside a TOSHIBA or third-party PLC — such as a Siemens S7-300 CPU or Mitsubishi MELSEC Q-series controller — this module ensures that the power conversion stage remains stable even as the logic layer responds to real-time process demands. Its half-bridge topology is directly compatible with three-phase inverter configurations commonly used in motor control, UPS systems, and active front-end rectifiers.

The MG50Q2YS91 is frequently paired with complementary components to form a complete, hardened power and control solution. Gate driver boards such as the Concept 2SD315AI or Semikron SKHI22A provide the isolated drive signals required for safe IGBT switching. On the DC bus side, film capacitors rated at 700V or higher — from manufacturers such as EPCOS or Vishay — buffer the intermediate voltage rail and suppress voltage spikes that could otherwise stress the module’s collector-emitter junction. Snubber networks and bus bar assemblies further reduce parasitic inductance, protecting the MG50Q2YS91 during high-speed switching transients.

Within the broader control architecture, the MG50Q2YS91 operates in close coordination with I/O modules, safety relay modules, and communication gateways. In a typical DCS or SCADA-integrated plant, the drive inverter housing this module receives speed and torque references via PROFIBUS-DP, DeviceNet, or Modbus RTU from the supervisory controller. Fault signals — including over-temperature, over-current, and desaturation events — are fed back through digital I/O terminals to the PLC safety layer, enabling rapid protective shutdown without operator intervention. This closed-loop safety architecture is essential in oil refinery pump stations, chemical reactor agitator drives, and steel mill rolling mill applications where a single uncontrolled stop can trigger cascading process failures.

For facilities operating under IEC 60079 (ATEX) or NEC 505 hazardous area classifications, the MG50Q2YS91 is typically housed within IP54 or IP65-rated enclosures with positive-pressure purging, ensuring that flammable gas or dust cannot reach the power electronics. In these installations, the module works alongside intrinsically safe barriers, Zener diode isolators, and certified terminal blocks to maintain the integrity of the Ex-rated zone boundary. Its low on-state voltage drop (V_CE(sat)) minimizes heat generation inside sealed enclosures, reducing the thermal load on enclosure cooling systems and extending the service life of adjacent components such as contactors, miniature circuit breakers, and power supplies.

Procurement teams sourcing the MG50Q2YS91 as a spare part or direct replacement will find it fully interchangeable with earlier MG-Series variants in the same footprint class. The module’s standard isolated base plate and screw-terminal layout allow drop-in replacement without PCB modification, significantly reducing mean time to repair (MTTR) in field service scenarios. TOPNLMS maintains verified stock of the MG50Q2YS91, with each unit subjected to pre-shipment functional testing including gate threshold voltage verification, leakage current measurement, and insulation resistance testing to IEC 60747-9 standards.

Rugged Specifications Table

Comprehensive Protection Solutions

The MG50Q2YS91 is most effective when integrated as part of a layered protection and control architecture. In a typical industrial drive cabinet, the module operates alongside a dedicated gate driver board — such as the Concept 2SD315AI or Semikron SKHI22A — which provides the isolated PWM signals and desaturation protection essential for safe IGBT operation. On the AC input side, a line reactor or EMC filter (e.g., Schaffner FN3258 series) attenuates conducted emissions and protects the module from upstream voltage disturbances caused by large motor starts or capacitor bank switching.

DC bus protection is provided by high-energy film capacitors and fast-acting semiconductor fuses rated for the 600V bus voltage. Surge protection devices (SPDs) at the cabinet entry point — compliant with IEC 61643-11 — clamp transient overvoltages before they can reach the IGBT module. Temperature monitoring is handled by NTC thermistors or PT100 RTD sensors mounted on the module’s base plate, with readings fed to the PLC’s analog input module or a dedicated thermal management controller. In multi-axis servo systems, the MG50Q2YS91 may be used in parallel with TOSHIBA MG75Q2YS91 (75A variant) or MG100Q2YS91 (100A variant) modules to scale output current for higher-power axes, maintaining a consistent MG-Series footprint across the entire drive rack.

Communication between the drive controller and the plant DCS is typically handled via a PROFIBUS-DP communication module or an EtherNet/IP adapter card installed in the drive’s option slot. Safety functions — including Safe Torque Off (STO) and Safe Stop 1 (SS1) per IEC 62061 — are implemented through a dedicated safety relay module or a TÜV-certified safety PLC, which monitors the MG50Q2YS91’s fault output signals and initiates controlled shutdown sequences without requiring the main controller to intervene. This architecture ensures that even in the event of a PLC communication fault, the power module and its associated drive hardware fail safely.

Application in Critical Infrastructure

The TOSHIBA MG50Q2YS91 has established a strong track record across the most demanding sectors of critical infrastructure. In oil and gas facilities — including offshore platforms, onshore compression stations, and pipeline pump skids — the module drives submersible pump motors and gas compressor drives that must operate continuously for months without maintenance access. Its wide junction temperature range and low thermal resistance (R_th(j-c)) allow it to sustain full-load switching cycles even when ambient temperatures inside the drive enclosure approach 50°C during summer operations in desert or tropical climates.

In mining and mineral processing plants, the MG50Q2YS91 powers conveyor belt drives, ball mill motors, and slurry pump VFDs that operate in environments saturated with coal dust, silica particles, and corrosive moisture. The module’s robust package construction and high isolation voltage rating ensure that even in the presence of conductive dust contamination on external surfaces, the internal semiconductor junctions remain protected. Planned maintenance intervals can be extended significantly when the module is paired with condition monitoring systems that track junction temperature trends and switching energy losses over time.

In electric power generation and transmission substations, the MG50Q2YS91 is used in static VAR compensators (SVCs), active power filters, and STATCOM units that regulate grid voltage and power factor. These applications demand extremely high switching reliability and consistent gate-drive response across thousands of operating hours. The module’s tight parameter matching within the MG-Series family simplifies parallel operation and ensures balanced current sharing in multi-module converter legs.

In water and wastewater treatment facilities, the module drives aeration blower motors, centrifugal pump drives, and UV disinfection system power supplies. These installations often operate in high-humidity environments with aggressive chemical atmospheres, making the MG50Q2YS91’s hermetically sealed construction and corrosion-resistant base plate particularly valuable. In metallurgical and steel production plants, the module is found in rolling mill main drives, ladle furnace electrode regulators, and continuous casting machine drives — applications where millisecond-level response to torque demand changes is critical to product quality and process safety.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All MG50Q2YS91 units shipped by TOPNLMS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, premature parameter degradation, and functional failure under normal operating conditions as defined by TOSHIBA’s published datasheet. In the event of a warranty claim, TOPNLMS will arrange return logistics, conduct failure analysis, and provide a replacement unit or full refund within an agreed service window. Warranty documentation is issued with every shipment and traceable to the specific batch and test record.

Q2: What pre-shipment testing is performed on each unit?
Every MG50Q2YS91 unit undergoes a structured pre-shipment inspection protocol before dispatch. This includes gate threshold voltage (V_GE(th)) measurement, collector-emitter leakage current (I_CES) verification, insulation resistance testing at 500V DC, and visual inspection for package integrity, terminal condition, and labeling authenticity. Units that fail any parameter threshold are quarantined and not shipped. Test records are available upon request for quality-critical procurement processes.

Q3: Is the MG50Q2YS91 compatible with my existing drive or inverter platform?
The MG50Q2YS91 is a standard MG-Series half-bridge module with an industry-common isolated base plate footprint and screw-terminal layout. It is directly interchangeable with other 600V / 50A half-bridge modules sharing the same package dimensions, making it suitable for drop-in replacement in a wide range of OEM drive platforms from TOSHIBA, Fuji Electric, Mitsubishi, and compatible third-party manufacturers. If you require confirmation of compatibility with a specific drive model or inverter board, TOPNLMS technical support can assist with cross-reference verification prior to order placement.

Q4: Can TOPNLMS support long-term or repeat supply of the MG50Q2YS91?
Yes. TOPNLMS maintains a dedicated inventory management program for MG-Series IGBT modules to support customers with ongoing maintenance contracts, planned shutdown spares, and emergency replacement requirements. For customers with high-volume or scheduled procurement needs, framework agreements with reserved stock allocation and priority shipment are available. Contact our technical sales team to discuss long-term supply arrangements, lead time commitments, and volume pricing structures.
