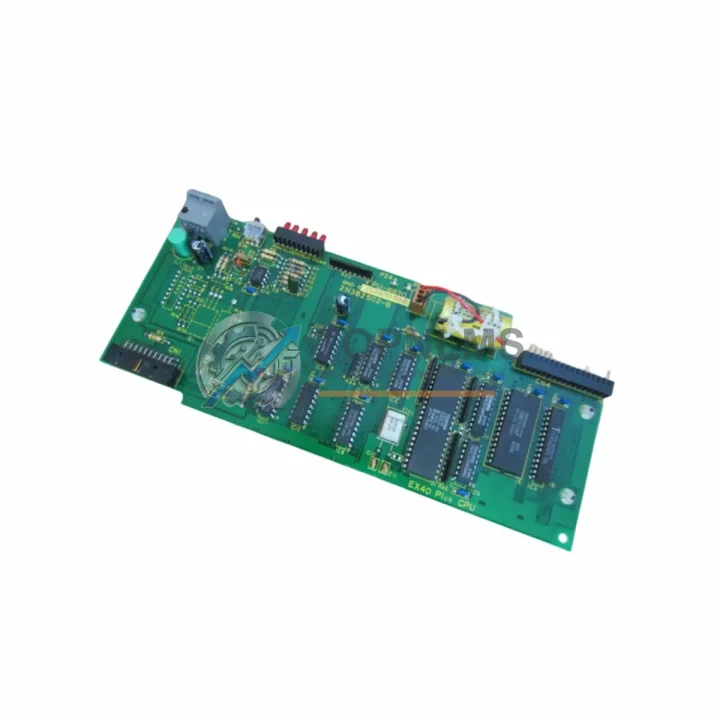

TOSHIBA 2N3B2502-B Replacement Solution for T Series

Product Overview

TOSHIBA 2N3B2502-B Replacement Solution for T Series: Smooth Migration & Legacy System Compatibility

The TOSHIBA 2N3B2502-B is a PLC Sequence Control Module originally designed for TOSHIBA’s T Series programmable logic controller platform. As industrial facilities face increasing pressure to maintain aging automation infrastructure, sourcing a reliable replacement or upgrade path for the 2N3B2502-B has become a critical procurement priority. Whether your existing system is approaching end-of-life, experiencing hardware failure, or simply requires a verified spare for continuity of operations, TOPNLMS provides factory-tested 2N3B2502-B units with full compatibility assurance and a 12-month warranty.

The 2N3B2502-B functions as a sequence control module within the TOSHIBA T Series PLC architecture, handling discrete logic execution, I/O coordination, and inter-module communication across the control rack. In many legacy installations, this module operates alongside the TOSHIBA T2E or T3 series CPU units, sharing a common backplane bus and communicating via TOSHIBA’s proprietary parallel I/O bus protocol. Facilities running TOSHIBA EX Series or S2 Series controllers in adjacent control cabinets may also reference the 2N3B2502-B as part of a broader distributed control architecture.

When planning a direct replacement, engineers typically verify three key compatibility dimensions: physical form factor and rack slot alignment, backplane bus signal pinout, and firmware or program compatibility with the resident CPU. The 2N3B2502-B occupies a standard T Series module slot and connects via the rear backplane connector — no rewiring of field I/O terminals is required in a like-for-like swap. Field wiring connected to associated TOSHIBA terminal modules (such as the 2N3B1001 or equivalent I/O terminal blocks) remains undisturbed, significantly reducing installation time and the risk of wiring errors during the changeover.

For facilities upgrading from older TOSHIBA T1 or T2 series racks to a T Series platform incorporating the 2N3B2502-B, the migration process typically involves remapping I/O addresses in the ladder logic program using TOSHIBA’s TOSDIC or equivalent programming software. The sequence control logic itself — including timer, counter, and interlock rungs — is generally portable with minor address offset adjustments. TOPNLMS recommends performing a full offline simulation of the migrated program before live commissioning to validate scan cycle timing and output sequencing.

Power supply compatibility is another consideration during retrofit. The 2N3B2502-B operates on the standard T Series DC bus supplied by the rack power supply unit, typically a 24 VDC regulated module such as the TOSHIBA 2N1P0024 or equivalent PSU. If the existing power supply is also being replaced as part of the upgrade, ensure the new PSU’s current rating accommodates the full rack load including any newly added communication modules or expansion I/O modules.

Communication protocol compatibility is particularly relevant when the 2N3B2502-B is integrated into a larger SCADA or DCS environment. Many T Series installations interface with upstream systems via RS-232C or RS-485 serial links using TOSHIBA’s proprietary TOSLINE-S20 or TOSLINE-F10 communication protocols. If the host SCADA system has been upgraded to Modbus RTU or PROFIBUS DP, a protocol converter or a TOSHIBA communication module such as the 2N3C0001 serial interface module may be required to bridge the legacy field bus to the modern network layer. This is a common scenario in partial modernization projects where the PLC hardware is retained but the supervisory layer is upgraded.

Physical installation space within the control cabinet should also be assessed. The 2N3B2502-B fits within the standard T Series rack enclosure without modification. However, if the cabinet also houses third-party components such as signal isolators, relay output modules, or an HMI panel for local operator interface, ensure adequate clearance for heat dissipation and cable routing. TOPNLMS can advise on compatible rack configurations upon request.

For customers managing multi-site operations or maintaining a strategic spare parts inventory, TOPNLMS offers quantity pricing on the 2N3B2502-B and related T Series components. Each unit is individually tested prior to shipment, and documentation including test reports and packing lists is provided upon request. Standard lead time from our Xiamen warehouse is 3–7 business days for international orders, with expedited options available for urgent plant shutdowns or unplanned failures.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the TOSHIBA 2N3B2502-B rarely involves a single module in isolation. In practice, the replacement project encompasses a coordinated set of components that together ensure system continuity. The 2N3B2502-B slots into the same T Series rack that houses the CPU module — commonly a TOSHIBA T2E CPU or T3 series processor — and shares the backplane with I/O modules handling both digital and analog field signals. If the digital output modules (such as TOSHIBA 2N3D series transistor output modules) or analog input modules are also aging, this is an opportune moment to replace them concurrently to avoid a second planned outage.

The rack power supply unit is another component worth evaluating during the upgrade. A TOSHIBA 2N1P series PSU that has been in service for over a decade may exhibit capacitor degradation, and replacing it alongside the 2N3B2502-B eliminates a common root cause of intermittent module faults. Similarly, the TOSHIBA programming cable (typically a USB-to-RS-232C adapter compatible with TOSDIC software) should be verified functional before commissioning, as communication failures during program upload are a frequent source of commissioning delays.

For sites integrating the T Series PLC with a modern HMI panel — such as a TOSHIBA V Series or a third-party touch panel — the serial communication link between the HMI and the CPU should be tested post-replacement to confirm that the 2N3B2502-B’s sequence outputs are correctly reflected in the HMI’s data registers. If the site is also upgrading the HMI, ensure the new panel’s PLC driver supports the TOSHIBA T Series communication protocol.

In distributed architectures where the T Series rack communicates with remote I/O stations via a TOSLINE-F10 field bus, the 2N3B2502-B replacement should be followed by a full network scan to verify that all remote nodes are recognized and responding. A TOSHIBA 2N3C series communication interface module, if present in the rack, should also be inspected for firmware compatibility with the replacement sequence control module.

Signal isolators installed between the PLC’s I/O modules and field instrumentation — particularly in environments with high electrical noise from variable frequency drives or motor starters — should be checked for correct channel mapping after the module swap. These isolators, while passive in most configurations, can mask wiring errors if not verified against the updated I/O address map.

Retrofit Guidance FAQ

Q: Can I replace the 2N3B2502-B without modifying field wiring?
A: Yes. The 2N3B2502-B is a backplane-connected module. Field wiring terminates at the I/O terminal modules, not at the sequence control module itself. A like-for-like replacement requires no field wiring changes.

Q: Do I need to reload the PLC program after replacing the module?
A: In most cases, the program resides in the CPU module’s memory, not in the 2N3B2502-B. However, if the module contains local parameter settings or configuration data, these should be backed up from the original unit (if still functional) and restored to the replacement using TOSDIC software before going live.

Q: Is the 2N3B2502-B compatible with PROFIBUS DP or Modbus TCP networks?
A: The 2N3B2502-B itself communicates via the T Series backplane bus. Network-level protocols (PROFIBUS DP, Modbus RTU/TCP) are handled by dedicated communication modules in the rack. The sequence control module is protocol-agnostic at the field network level.

Q: What is the physical installation clearance requirement?
A: The 2N3B2502-B fits the standard T Series module slot. Ensure a minimum of 50mm clearance above and below the rack for ventilation, consistent with TOSHIBA T Series installation guidelines.

Q: Can TOPNLMS provide a test report for the unit before shipment?
A: Yes. All units undergo functional testing prior to dispatch. Test reports and packing documentation are available upon request at the time of order.

Q: What if the replacement module does not resolve the fault?
A: TOPNLMS offers a 12-month warranty covering manufacturing defects and functional failures. If the replacement unit does not resolve the issue, our technical team will assist with diagnosis and arrange a replacement or refund per our warranty policy.

Warranty Assurance

Every TOSHIBA 2N3B2502-B supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers functional failures attributable to manufacturing defects or component quality issues under normal operating conditions consistent with TOSHIBA T Series installation specifications.

Prior to shipment, each unit undergoes a multi-point functional test including power-on verification, backplane interface continuity check, and I/O signal response validation. Units that do not pass testing are quarantined and not dispatched. A test record is maintained for each serialized unit and can be provided to the customer upon request.

In the event of a warranty claim, TOPNLMS will respond within 2 business days of receiving the defective unit and supporting documentation (fault description, installation photos, and test results if available). Resolution options include direct replacement from stock, repair, or full refund depending on the nature of the fault and customer preference.

For customers requiring extended coverage or on-site support agreements, TOPNLMS can discuss tailored service arrangements. Our procurement team is available via email and phone to support urgent replacement requirements, bulk orders, and long-term supply agreements for MRO (Maintenance, Repair & Operations) inventory programs.
