TOPNLMS 6ES7135-6TD00-0CA1 Ruggedized HART Output Module

Product Overview

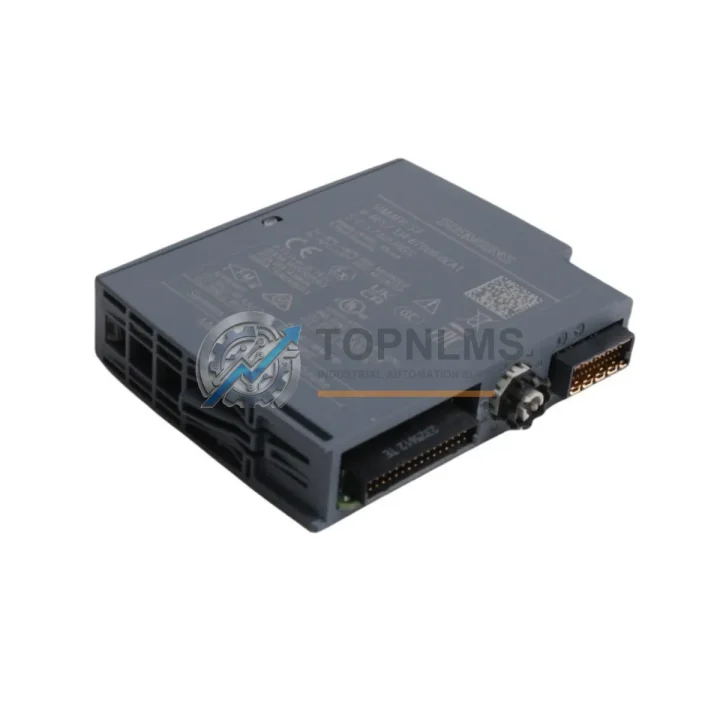

TOPNLMS 6ES7135-6TD00-0CA1 Ruggedized HART Output Module: Industrial Resilience for Harsh Environments

The Siemens 6ES7135-6TD00-0CA1 is a 4-channel analog HART output module engineered for the ET 200SP distributed I/O system — one of Siemens’ most compact and field-proven peripheral platforms. Designed to operate reliably in environments characterized by extreme temperature fluctuations, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference, this module delivers uncompromising signal integrity and process safety across the most demanding industrial installations.

At TOPNLMS, we stock, test, and ship the 6ES7135-6TD00-0CA1 with a full 12-month quality warranty, backed by pre-shipment functional verification and professional technical support. Whether you are maintaining a continuous production line, replacing a failed component in a critical control cabinet, or building out a new automation architecture, this module is a trusted, specification-accurate solution.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6ES7135-6TD00-0CA1 does not operate in isolation — it is a precision component within a broader, tightly integrated control architecture. In a typical ET 200SP station, this HART output module is mounted alongside analog input modules such as the 6ES7134-6GD01-0BA1 (4-channel analog input, ±10 V / 0–20 mA) and digital I/O modules like the 6ES7131-6BF01-0BA0 (8-channel digital input, 24 V DC), all sharing a common backplane bus powered through a dedicated 6ES7193-6BP00-0DA0 BaseUnit.

The station is typically managed by a SIMATIC S7-1500 CPU — for example, the CPU 1516-3 PN/DP (6ES7516-3AN02-0AB0) — communicating over PROFINET IO with deterministic cycle times suited to safety-critical process control. In installations where functional safety is mandated, the ET 200SP architecture supports the integration of F-modules such as the 6ES7136-6DC00-0CA0 fail-safe digital output module, enabling SIL 2 / SIL 3 compliance within the same compact rail-mounted station.

For power conditioning and surge protection in harsh field environments, the 6ES7135-6TD00-0CA1 is commonly deployed alongside Siemens SITOP PSU8200 series power supplies (e.g., 6EP1334-2BA20), which provide stabilized 24 V DC with integrated diagnostics and load-segment monitoring. In high-EMI environments such as variable frequency drive (VFD) panels or motor control centers, additional shielding via 6ES7390-5AA00-0AA0 cable shields and proper grounding through the ET 200SP shield terminal 6ES7193-6PA00-0AA0 ensures signal fidelity on all four HART channels.

Communication integrity is further reinforced when the ET 200SP station is connected through a SCALANCE X208 (6GK5208-0BA10-2AA3) managed industrial Ethernet switch, which provides PROFINET-compliant ring redundancy (MRP) and port-level diagnostics — critical for continuous production environments where network downtime is not an option. For legacy installations requiring PROFIBUS DP integration, the IM 155-6 DP HF (6ES7155-6BA01-0CN0) interface module bridges the ET 200SP station seamlessly into existing PROFIBUS architectures.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the 6ES7135-6TD00-0CA1 is deployed to drive HART-enabled control valves, positioners, and flow transmitters across wellhead automation panels and pipeline SCADA systems. Its extended operating temperature range and vibration tolerance make it suitable for outdoor skid-mounted enclosures exposed to desert heat, arctic cold, and continuous mechanical stress from compressor stations.

In coal-fired and gas-fired power generation plants, this module manages analog setpoint outputs to turbine governor systems, boiler feedwater control valves, and combustion air damper actuators — applications where a single channel failure can trigger a costly unplanned shutdown. The module’s channel-level diagnostics and wire-break detection enable predictive maintenance strategies that reduce mean time to repair (MTTR) and extend plant availability.

In municipal and industrial water treatment facilities, the 6ES7135-6TD00-0CA1 controls dosing pump drives, chemical feed valves, and aeration blower VFDs via 4–20 mA HART signals, with the HART secondary variable capability allowing simultaneous process monitoring without additional wiring. Its IP20 rating, combined with deployment inside IP65-rated control cabinets, meets the ingress protection requirements of wet process environments.

In metallurgical and heavy manufacturing plants — including steel rolling mills, aluminum smelters, and cement production lines — the module withstands the intense electromagnetic interference generated by large induction furnaces, high-current bus bars, and multi-megawatt drive systems. Its compliance with IEC 60068-2-6 vibration standards ensures reliable operation even when mounted in close proximity to heavy rotating machinery.

In mining operations, including underground coal mines and open-pit mineral extraction sites, the module supports remote I/O stations in conveyor control systems, crusher automation panels, and ventilation management systems — environments where dust ingress, humidity, and mechanical shock are constant operational realities.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide for the 6ES7135-6TD00-0CA1?
All units shipped by TOPNLMS carry a 12-month full functional warranty from the date of delivery. If the module fails under normal operating conditions within the warranty period, we provide a free replacement or full refund. Our warranty covers manufacturing defects and functional failures — not physical damage caused by incorrect installation or overvoltage events.

Q2: How is each unit tested before shipment?
Every 6ES7135-6TD00-0CA1 unit undergoes pre-shipment functional verification at our Xiamen facility. Testing includes power-on diagnostics, channel output verification across the 4–20 mA range, HART communication handshake confirmation, and visual inspection for physical integrity. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is this module compatible with my existing S7-1500 or S7-300 system?
Yes. The 6ES7135-6TD00-0CA1 is fully compatible with SIMATIC S7-1500 controllers via PROFINET IO and with S7-300 systems via the appropriate ET 200SP interface module (IM 155-6 PN ST or IM 155-6 DP HF). Configuration is performed in TIA Portal V13 SP1 or later. For legacy Step 7 environments, compatibility depends on the interface module firmware version — contact our technical team for guidance.

Q4: Can TOPNLMS guarantee long-term supply and replacement support?
Yes. TOPNLMS maintains a dedicated inventory of Siemens ET 200SP modules, including the 6ES7135-6TD00-0CA1, to support both planned maintenance schedules and emergency replacement requirements. We offer same-day quotation, rapid order processing, and international express shipping to minimize plant downtime. For customers with recurring procurement needs, we offer priority stock reservation and volume pricing agreements.
