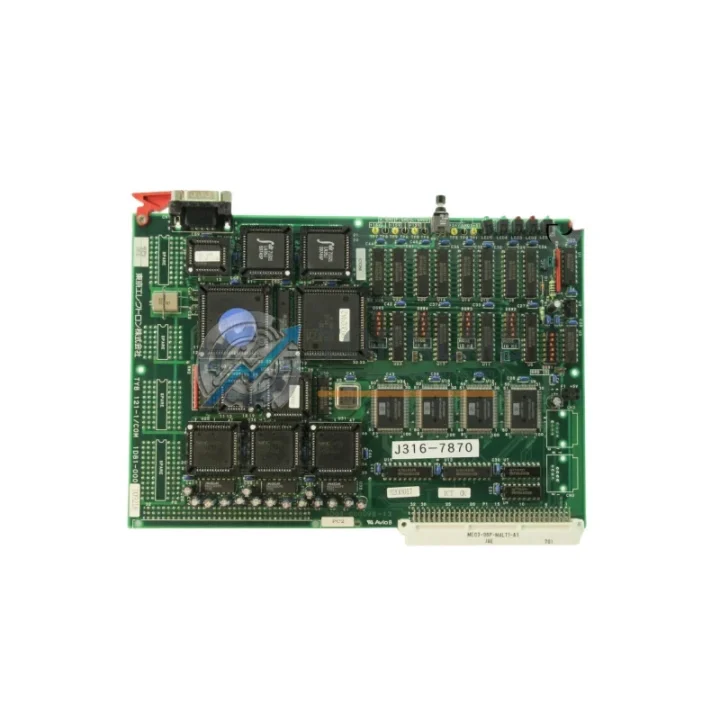

Tokyo RCP2-SA5R-I-42P-12-750 Replacement Solution

Product Overview

Tokyo RCP2-SA5R-I-42P-12-750 Replacement Solution: Smooth Transition from Legacy Servo Systems

Migrating away from an end-of-life or discontinued servo control platform is one of the most operationally sensitive tasks in industrial automation. The Tokyo TYB 121-1/COM RCP2-SA5R-I-42P-12-750-P1-R05-ML-SG servo controller has served as a core motion-control component in a wide range of IAI RCP2-series actuator systems, and its replacement demands careful attention to wiring compatibility, communication protocol continuity, physical mounting constraints, and program migration. TOPNLMS supplies this unit as a verified drop-in replacement, fully tested before shipment, and backed by a 12-month warranty — giving procurement teams and maintenance engineers the confidence to execute a controlled cutover with minimal production downtime.

The RCP2-SA5R-I-42P-12-750-P1-R05-ML-SG is a single-axis servo controller designed for IAI’s RCP2 rod-type electric actuator family. It operates at 12 V DC input, delivers 750 mm stroke control, and communicates via the IAI SIO serial protocol — a point-to-point or multi-drop RS-485 variant commonly used across the RCP2 and RCP3 platform generations. When replacing a failed or obsolete TYB 121-1/COM board, engineers must verify that the replacement unit carries the same axis-address configuration, the same I/O connector pinout (42-pin), and the same motor encoder feedback type. All units supplied by TOPNLMS are pre-inspected against these parameters before dispatch from our Xiamen warehouse.

In practice, most RCP2-SA5R retrofit projects originate from one of three scenarios: a controller board failure in a running production cell, a planned upgrade from an older RCP2-S or RCP2-SA3 variant to the SA5R specification for higher thrust or longer stroke, or a system-wide migration from a legacy relay-logic panel to a modern PLC-based architecture. In all three cases, the physical installation footprint of the RCP2 controller — its DIN-rail mounting clip, 42-pin I/O connector, and SIO communication port — remains consistent, which means the mechanical changeover can typically be completed within a single maintenance window without cabinet re-wiring.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful RCP2-SA5R migration rarely involves a single component in isolation. In most control cabinets running IAI actuator systems, the servo controller works alongside a coordinated set of supporting hardware. The RCP2 gateway unit (such as the PCON-GW or equivalent fieldbus gateway) bridges the IAI SIO network to upstream PLCs communicating over PROFIBUS-DP, DeviceNet, or EtherNet/IP — and must be verified for firmware compatibility when the controller board is replaced. Similarly, the ACON or PCON series controller variants used in adjacent axes of the same control cabinet should be checked for consistent SIO address assignments to avoid bus conflicts after the swap.

On the power supply side, the 24 V DC panel power supply feeding the I/O logic circuits and the 12 V DC servo power supply driving the motor stage should both be load-tested before commissioning the replacement unit — a degraded power supply is a common root cause of premature controller failure and can damage a new board if left unaddressed. If the cabinet uses a terminal block module (such as a Phoenix Contact or Weidmüller I/O terminal strip) to distribute the 42-pin I/O signals to field devices, inspect the terminal labeling against the RCP2-SA5R wiring diagram to confirm signal polarity and common-ground continuity.

For systems where the RCP2 controller is supervised by a Mitsubishi MELSEC Q-series or iQ-R series PLC via a serial communication module (such as the QJ71C24N or RJ71C24), the PLC ladder program’s axis-address parameters and baud-rate settings (typically 38400 bps, 8N1) must match the replacement controller’s factory defaults. If the upstream controller is an Omron CJ2M or NX1P2 with a serial option board, the same verification applies. In either case, no re-programming of the actuator’s position table is required if the original data file is retained — the position data is re-uploaded to the new controller via IAI’s PC software over the SIO port using a standard RS-232C-to-SIO programming cable.

Where the retrofit involves upgrading from an older RCP2-SA3R or RCP2-SA4R controller to the SA5R specification, engineers should note the increased maximum thrust rating and confirm that the mechanical end-stop and overload detection parameters are re-tuned accordingly. The RCP2 teaching pendant (CON-T or IA-T-X3) can be used on-site for manual jog, position registration, and alarm history review without requiring a laptop, which significantly reduces commissioning time in field environments with limited access.

Retrofit Guidance FAQ

Q: Can I reuse the existing 42-pin wiring harness?
Yes. The RCP2-SA5R-I-42P uses the same 42-pin connector pinout as the TYB 121-1/COM board. No rewiring is required; disconnect the harness from the old board and reconnect to the replacement unit.

Q: Do I need to re-enter position data after replacement?
Yes, but the process is straightforward. Connect a PC running IAI’s PC software to the SIO port via the programming cable, load the previously saved position data file, and upload it to the new controller. If no backup file exists, positions must be re-taught manually using the teaching pendant.

Q: Is the SIO communication protocol identical to the original board?
Yes. The RCP2-SA5R uses the same IAI SIO RS-485 protocol at 38400 bps, 8N1. The axis address (set via DIP switch on the controller) must be configured to match the original unit’s address before connecting to the bus.

Q: Will the replacement fit in the same DIN-rail slot?
Yes. The RCP2 controller housing dimensions are standardized across the SA-series variants. No cabinet modification or bracket adaptation is needed.

Q: What if my PLC program uses specific I/O bit assignments for this axis?
The 42-pin I/O signal map is identical to the original TYB 121-1/COM specification. PLC I/O assignments, including start, home, zone output, and alarm signals, remain valid without modification.

Q: How long does shipping take?
Units are dispatched from our Xiamen warehouse within 1–3 business days of order confirmation. International express delivery (DHL / FedEx) typically reaches most destinations within 3–7 business days. Expedited options are available on request.

Warranty Assurance

Every RCP2-SA5R-I-42P-12-750-P1-R05-ML-SG unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional pre-shipment inspection covering power-on self-test, communication port verification, I/O signal continuity, and encoder feedback validation. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response time is within 24 hours on business days. We maintain buffer stock of common RCP2-series controllers to support rapid replacement without extended lead times. Procurement teams requiring documentation — including test reports, packing lists, or certificates of conformity — may request these at the time of order.

For volume orders, blanket purchase agreements, or urgent emergency replacement requirements, contact our sales team directly. We support net-30 payment terms for qualified industrial buyers and can provide formal quotations for ERP/procurement system submission.
