TOKYO E2B213-11 Ruggedized Circuit Board Module for Harsh Environments

Product Overview

TOKYO E2B213-11 Ruggedized Circuit Board Module for Harsh Environments

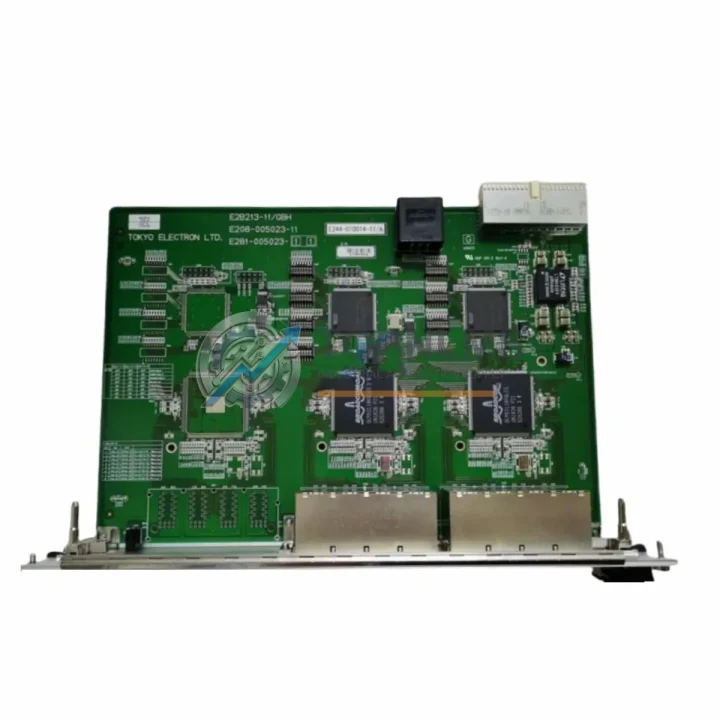

The TOKYO E2B213-11 is a ruggedized industrial circuit board module engineered for continuous, fault-tolerant operation in the most demanding automation environments. As part of the proven TOKYO E2B Series, this module delivers exceptional signal integrity, thermal stability, and electromagnetic immunity — making it a trusted backbone component in PLC-based and DCS-integrated control architectures across heavy industry worldwide.

Designed to withstand ambient temperatures ranging from -10°C to +60°C, high-humidity conditions up to 95% RH (non-condensing), and mechanical vibration levels consistent with IEC 60068-2-6 standards, the E2B213-11 maintains stable logic processing and I/O communication even in environments subject to dust ingress, corrosive atmospheres, and continuous mechanical stress. Its onboard EMI shielding and surge suppression circuitry protect against transient voltage spikes and radiated interference — critical in facilities where variable frequency drives (VFDs), high-current motor starters, and large transformer banks operate in close proximity to control panels.

In continuous production lines — whether in automotive stamping, chemical processing, or food-grade packaging — unplanned downtime caused by a failed circuit board can cost tens of thousands per hour. The E2B213-11 is engineered to eliminate that risk. Its multi-layer PCB construction uses conformal coating on all exposed traces, providing resistance to moisture, flux residue, and airborne particulates that are endemic to foundry floors, cement plants, and offshore platforms.

Rugged Specifications Table

Comprehensive Protection Solutions

The E2B213-11 does not operate in isolation — it is a critical node within a broader control architecture. In a typical industrial control cabinet, it interfaces directly with TOKYO E2B Series I/O expansion modules and E2B analog input cards, enabling precise process variable acquisition from field instruments such as thermocouples, pressure transmitters, and flow meters. The module’s backplane communication bus is fully compatible with standard TOKYO E2B rack assemblies, allowing hot-swap replacement without full system shutdown in supported configurations.

For power conditioning, the E2B213-11 is routinely paired with 24VDC industrial DIN-rail power supplies — typically in the 10A to 20A range — to ensure clean, regulated voltage delivery free from ripple that could corrupt logic states. In facilities where power quality is a concern, an upstream industrial UPS module or surge protection device (SPD) is recommended to protect the entire control rack.

Communication integrity is maintained through TOKYO E2B Series communication modules supporting PROFIBUS-DP, Modbus RTU, or proprietary serial protocols, depending on the system generation. These communication cards sit adjacent to the E2B213-11 on the same backplane, sharing the rack’s internal bus for low-latency data exchange with SCADA systems and HMI panels.

Safety-critical installations often incorporate safety relay modules and emergency stop relay assemblies in the same cabinet, with the E2B213-11 providing the logic backbone that monitors safety loop status and triggers controlled shutdowns. Complementary terminal block modules and marshalling panels provide the field wiring interface, ensuring clean signal segregation between intrinsically safe and non-IS circuits. For installations requiring redundancy, a secondary TOKYO E2B CPU module in hot-standby configuration can be deployed alongside the E2B213-11 to achieve sub-second failover.

Application in Critical Infrastructure

In oil and gas upstream operations, the E2B213-11 is deployed in wellhead control panels and pipeline SCADA nodes where ambient temperatures fluctuate dramatically between day and night cycles, and where hydrogen sulfide (H₂S) atmospheres demand components with robust corrosion resistance. Its conformal-coated PCB has demonstrated reliable service life in such environments without derating.

In coal and hard-rock mining, the module is installed in explosion-proof enclosures or pressurized control rooms managing conveyor drive systems, ventilation fan controls, and hoisting machinery. The E2B213-11’s vibration tolerance is particularly valued in these applications, where structural vibration from blasting and heavy equipment is a constant factor.

At thermal and hydroelectric power stations, the module participates in turbine governor control loops and boiler management systems, where millisecond-level response times and zero tolerance for spurious trips are non-negotiable. Its EMI immunity ensures that high-voltage bus switching events do not induce false signals in the control logic.

In municipal water treatment and wastewater facilities, the E2B213-11 manages pump sequencing, chemical dosing control, and SCADA telemetry — often in high-humidity pump houses where condensation is a persistent threat. The module’s humidity rating and conformal coating make it well-suited for these installations without additional environmental enclosure upgrades.

In steel and aluminum smelting, where radiated heat from furnaces and induction heaters creates extreme thermal gradients, the E2B213-11’s extended operating temperature range and thermal management design allow it to function reliably in control rooms adjacent to process areas, reducing the need for costly air-conditioned enclosures.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The TOKYO E2B213-11 carries a 12-month warranty from the date of shipment. This covers manufacturing defects, premature component failure under normal operating conditions, and functional non-conformance to published specifications. Warranty claims are supported by our technical team with RMA processing and priority replacement dispatch. Units damaged by incorrect installation, overvoltage events beyond rated limits, or unauthorized modification are excluded.

Q2: How is each unit tested before shipment?
Every E2B213-11 unit undergoes functional verification prior to dispatch. This includes power-on self-test (POST) validation, I/O channel continuity checks, and communication bus integrity testing where applicable. For refurbished or tested-surplus units, additional burn-in testing is performed to screen for early-life failures. A test report is available upon request for critical infrastructure procurement.

Q3: Is the E2B213-11 compatible with my existing TOKYO E2B rack system?
Yes. The E2B213-11 is designed for direct slot-in compatibility with standard TOKYO E2B Series rack assemblies. It conforms to the E2B backplane pinout and bus protocol, making it a drop-in replacement for failed or end-of-life units in existing installations. If you are integrating into a mixed-generation system or a third-party rack, please contact our technical team with your rack model and firmware version for a compatibility confirmation before ordering.

Q4: Can you guarantee long-term supply and replacement support?
TOPNLMS maintains dedicated stock of the E2B213-11 and other TOKYO E2B Series components to support long-term maintenance contracts and emergency breakdown scenarios. We source from verified supply chains and can provide certificates of conformance on request. For customers managing aging automation infrastructure, we offer proactive spare-parts planning consultation to ensure critical components are available before they are needed — not after a line-down event.
