TOKYO COMPUTER MSM020B-0300-NN-M0-CC0 Original Industrial Spare PLANAPO

Product Overview

TOKYO COMPUTER MSM020B-0300-NN-M0-CC0 Original Industrial Spare PLANAPO: System Stability & Maintenance Value

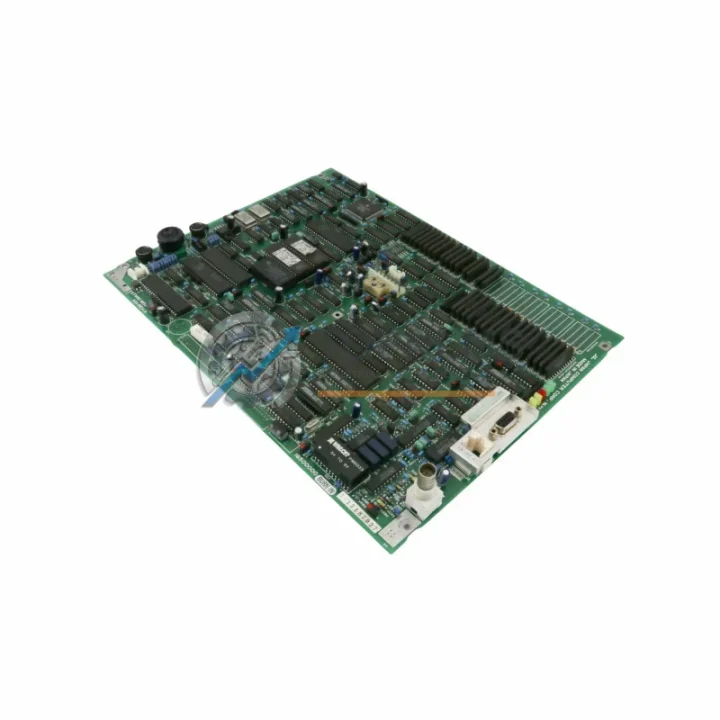

In high-demand industrial environments, the integrity of your motion control and servo drive systems is non-negotiable. The TOKYO COMPUTER MSM020B-0300-NN-M0-CC0 is an original PCB assembly from the PLANAPO / XTMM M05 series, engineered for precision servo motion control applications. With reference number R911295566 and a rated output of 200W / 0.95A, this board is a critical component in maintaining the operational continuity of CNC machining centers, automated assembly lines, robotic workcells, and precision motion platforms.

When a servo drive PCB fails unexpectedly, the consequences extend far beyond the cost of the part itself. Unplanned downtime in a production environment can cost thousands of dollars per hour. Having a verified, original-source replacement like the MSM020B-0300-NN-M0-CC0 on hand — or sourcing it rapidly from a reliable supplier — is the cornerstone of any mature industrial maintenance strategy. This unit has been inspected, function-tested, and is ready for immediate deployment.

Critical Technical Specs Table

Preventive Maintenance Strategy

A servo drive PCB failure rarely occurs in isolation. In most industrial control cabinets, the MSM020B-0300-NN-M0-CC0 operates within a tightly integrated ecosystem of components that share thermal load, power supply rails, and communication buses. A disciplined preventive maintenance (PM) program should treat this board as part of a broader inspection scope — not a standalone replacement event.

During scheduled downtime or annual cabinet inspections, maintenance engineers should simultaneously evaluate the servo drive axis power supply module that feeds the PLANAPO board. Degraded DC bus voltage is a leading cause of premature PCB failure and often goes undetected until a board-level fault occurs. The feedback encoder cable assembly connecting the motor to the MSM020B-0300-NN-M0-CC0 should be inspected for insulation wear, connector oxidation, and signal integrity — encoder signal errors frequently manifest as board-level fault codes before the cable itself is identified as the root cause.

The XTMM M05 axis communication module and associated SERCOS or PROFIBUS interface card within the same control cabinet should be checked for firmware version alignment and connector seating. Mismatched firmware between the axis board and the communication module is a common source of intermittent faults in aging PLANAPO systems. While the cabinet is open, inspect the 24VDC logic power supply output voltage under load — a sagging logic rail will cause erratic behavior on the MSM020B-0300-NN-M0-CC0 long before triggering a power fault alarm.

Terminal blocks and I/O terminal strip assemblies within the servo cabinet should be re-torqued and visually inspected for discoloration or micro-arcing, particularly on high-cycle enable and fault-reset signal lines. The brake resistor module or dynamic braking unit associated with the servo axis should be tested for resistance drift, as a degraded braking resistor places additional thermal stress on the drive PCB during deceleration cycles. If the system includes a safety relay module for STO (Safe Torque Off) or SS1 functions, verify its response time and contact integrity as part of the same PM event.

For facilities managing multiple PLANAPO axes, it is advisable to maintain a minimum stock of one spare MSM020B-0300-NN-M0-CC0 per production line, alongside a spare axis power module and a set of pre-crimped encoder connector assemblies. This three-part spare kit covers the majority of servo axis failure modes and enables same-shift restoration without waiting for expedited freight. Facilities running 24/7 operations should also consider stocking a spare HMI operator panel and CNC controller backplane to cover the full scope of control cabinet failure scenarios.

Strategic Replacement Solutions

The TOKYO COMPUTER PLANAPO series has been deployed in industrial environments for over two decades, and many facilities continue to operate legacy XTMM M05 motion control systems that are no longer supported by the OEM’s standard service contracts. For these sites, sourcing original spare PCB assemblies like the MSM020B-0300-NN-M0-CC0 is the most cost-effective path to system life extension — far less disruptive and expensive than a full CNC control retrofit.

Unlike aftermarket or remanufactured alternatives, an original TOKYO COMPUTER MSM020B-0300-NN-M0-CC0 maintains full parameter compatibility with the existing servo amplifier firmware, motor feedback configuration, and axis tuning data stored in the CNC controller. This means replacement can be completed without re-commissioning the axis from scratch, dramatically reducing the skill level required for field replacement and cutting mean time to repair (MTTR) from days to hours.

For facilities transitioning from older PLANAPO variants to current-generation servo platforms, the MSM020B-0300-NN-M0-CC0 serves as a bridge component — keeping the legacy axis operational while the broader system modernization is planned and budgeted. This approach protects capital investment, maintains production throughput, and gives engineering teams the time needed to execute a controlled migration rather than a crisis-driven replacement.

All units supplied by TOPNLMS are sourced from verified industrial channels, inspected upon receipt, and function-tested before shipment. Each unit ships with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Expedited shipping options are available for urgent maintenance requirements.

Support FAQ

Q1: What does the 12-month warranty cover for the MSM020B-0300-NN-M0-CC0?
All units carry a 12-month warranty from the date of shipment. Coverage includes functional failure and manufacturing defects under normal industrial operating conditions. Units that fail within the warranty period are eligible for replacement or refund subject to inspection. Warranty claims should be initiated by contacting [email protected] with the order reference and a description of the fault.

Q2: How is each unit tested before shipment?
Each MSM020B-0300-NN-M0-CC0 undergoes function testing prior to dispatch. Testing verifies power-on initialization, communication interface response, and output stage integrity. A test report is available upon request for critical procurement applications or quality audit requirements.

Q3: Is this board compatible with all PLANAPO series servo drives, or only specific variants?
The MSM020B-0300-NN-M0-CC0 is designed for the PLANAPO 200W / 0.95A axis configuration within the XTMM M05 platform. Compatibility with adjacent PLANAPO variants — such as different power ratings or encoder configurations — should be verified against the OEM wiring diagram and axis parameter file before installation. Contact our technical team with your cabinet nameplate data for confirmation before ordering.

Q4: What is the recommended spare inventory strategy for facilities running multiple PLANAPO axes?
For facilities with three or more PLANAPO axes, we recommend maintaining at least one MSM020B-0300-NN-M0-CC0 per production line as a cold spare. Pair this with a spare axis power supply module and encoder cable set to cover the most common failure modes. For high-criticality lines running 24/7, a hot-swap spare stored in the cabinet room reduces MTTR to under one hour and eliminates the risk of production loss due to freight delays.
