TMEIC ARND-3119 Replacement for TMdrive Series: Smooth Transition & Legacy System Compatibility

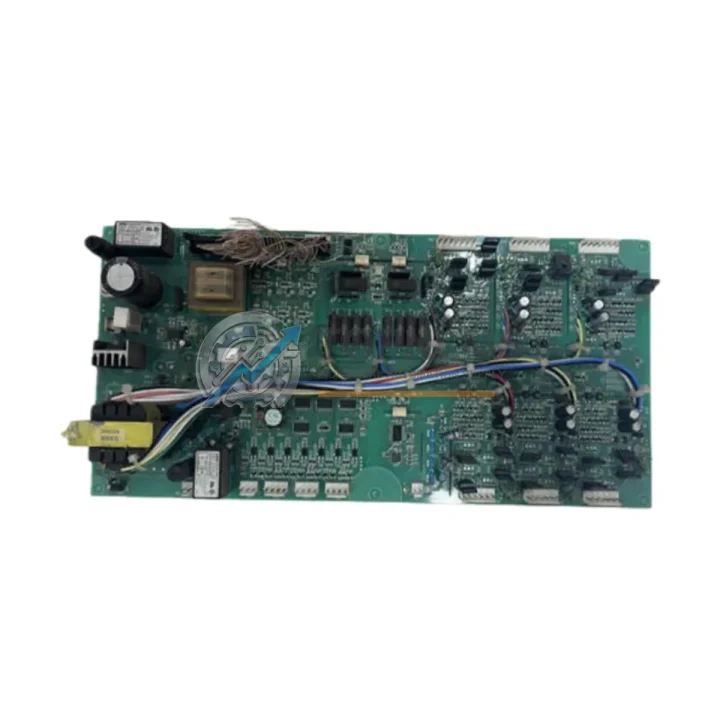

The TMEIC ARND-3119 is the master control board at the heart of the TMdrive series medium-voltage variable frequency drive platform — one of TMEIC’s most widely deployed industrial drive architectures across steel mills, cement plants, petrochemical facilities, and large-scale HVAC systems. As the TMdrive platform matures and original ARND-3119 boards reach end-of-service life, procurement teams and maintenance engineers face a critical challenge: sourcing a verified, wiring-compatible replacement that eliminates extended downtime and avoids costly full-drive replacements.

TOPNLMS stocks the ARND-3119 as a direct drop-in replacement board, fully tested prior to shipment, and backed by a 12-month warranty. Whether you are executing a planned retrofit, responding to an unplanned board failure, or building a strategic spare-parts inventory, this listing is designed to support your procurement decision with complete technical transparency.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ARND-3119 board replacement rarely happens in isolation. In most TMdrive retrofit projects, the master control board swap is one step within a broader system stabilization or modernization effort. Based on field experience with TMdrive-series installations, the following components are commonly addressed in the same maintenance window or upgrade cycle.

The TMEIC ARND-3118 gate driver interface board works in direct coordination with the ARND-3119 and is frequently replaced as a paired set when gate signal integrity issues are diagnosed. Similarly, the ARND-3120 power supply board — which provides regulated 24 VDC logic power to the control section — should be inspected and replaced if capacitor aging is suspected, as power rail instability is a common root cause of ARND-3119 faults.

For facilities running TMdrive units integrated into a broader DCS or SCADA architecture via PROFIBUS-DP or Modbus RTU communication modules, verifying the integrity of the communication interface card (such as the TMEIC ARND-3200 series communication option board) is essential before commissioning the replacement control board. A degraded communication card can mask the true source of drive faults and lead to repeat board failures.

On the I/O side, the TMEIC ARND-3150 analog I/O expansion board — used for speed reference, torque feedback, and process variable signals — should be confirmed operational, as signal noise or ground loop issues on the I/O layer can stress the master control board. Facilities using older TMEIC TMdrive operator panels (HMI keypads) may also find that panel firmware updates are required after a control board swap to ensure parameter read/write compatibility.

Where the TMdrive cabinet shares a common DC bus or is part of a multi-drive system, the TMEIC ARND-3300 series DC bus interface module and associated pre-charge resistor assemblies should be verified for continuity and thermal integrity. In retrofit scenarios involving older TMdrive-10 units being upgraded to TMdrive-30 architecture, terminal block adapters and signal isolation modules are often required to bridge legacy wiring harnesses to the updated control board pinout.

Finally, for sites where the TMdrive system interfaces with upstream Yokogawa CENTUM VP DCS controllers or Siemens S7-300/S7-400 PLC racks via hardwired analog or digital I/O, confirming signal scaling and loop integrity after the board replacement is a critical commissioning step that should be documented in the site’s change management records.

Retrofit Guidance FAQ

Q: Does replacing the ARND-3119 require re-wiring the control cabinet?
A: No. The ARND-3119 uses the same connector layout and pinout as the original OEM board. All existing wiring harnesses, ribbon cables, and terminal block connections can be reused without modification. Verify cable seating and inspect for insulation degradation before powering up.

Q: Will the replacement board retain existing drive parameters?
A: Drive parameters are typically stored in the operator panel (HMI) or in a separate parameter memory module, not on the control board itself. Before removing the failed ARND-3119, upload and save all parameters using the TMdrive programming tool or operator panel backup function. Restore parameters to the new board during commissioning.

Q: Is the ARND-3119 compatible with all TMdrive variants?
A: The ARND-3119 is the master control board used across the TMdrive-10, TMdrive-30, and TMdrive-70 platforms. Confirm your drive’s nameplate model and control section revision before ordering. Contact TOPNLMS with your drive serial number if you require cross-reference verification.

Q: What communication protocols does the TMdrive support after board replacement?
A: The TMdrive platform supports PROFIBUS-DP, Modbus RTU, and TMEIC’s proprietary internal communication bus. The ARND-3119 replacement board does not alter the drive’s communication configuration. Existing fieldbus settings, node addresses, and baud rates are preserved through the parameter restore process.

Q: How much physical space is required for installation?
A: The ARND-3119 is a direct slot-in replacement with an identical form factor to the original board. No cabinet modifications, additional DIN rail space, or mounting hardware changes are required. Ensure the cabinet is de-energized and properly isolated before board removal and installation.

Q: What is the typical commissioning time after board replacement?
A: For experienced drive technicians, board swap and parameter restore typically requires 2–4 hours, including functional testing. Sites with complex multi-drive or DCS-integrated configurations should allocate additional time for communication verification and loop testing.

Warranty Assurance

Every TMEIC ARND-3119 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each board undergoes a multi-point functional inspection including visual examination for component damage, power-on continuity testing, and communication interface verification. Boards that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement board or full refund based on the nature of the fault and the customer’s preference. Our after-sales response target is within 24 hours of claim submission. Warranty coverage applies to manufacturing defects and functional failures under normal operating conditions; it does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with each shipment. Export packaging is designed for international air and sea freight, with anti-static protection, foam cushioning, and moisture barrier sealing as standard.

Stock availability is updated regularly. For urgent requirements or bulk procurement inquiries, contact our technical sales team directly to confirm lead time and arrange priority dispatch.
