Teradyne LA768 950-601-02 Replacement for SE300 TLiIQ

Product Overview

Teradyne LA768 950-601-02 Replacement for SE300 TLiIQ: Seamless ATE System Upgrade

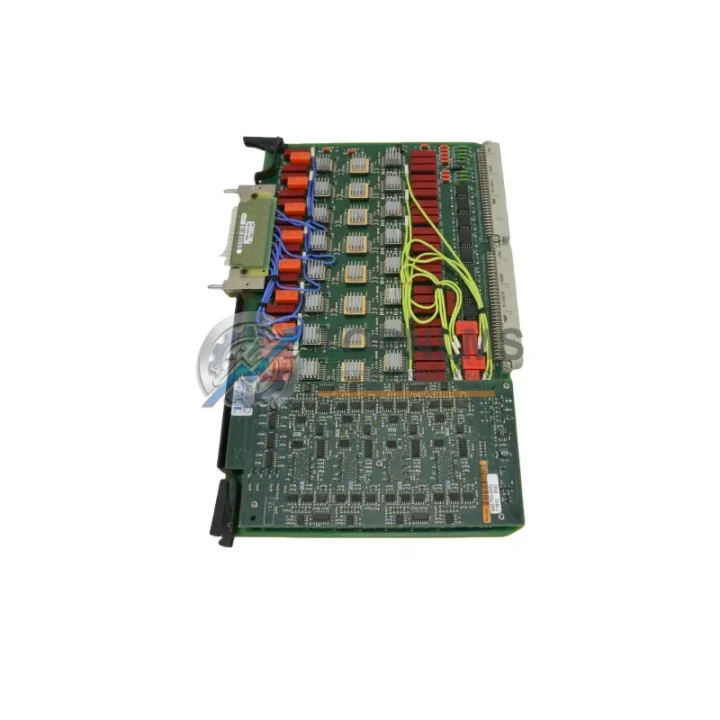

The Teradyne LA768 (part number 950-601-02) is a logic analyzer board designed for the SE300 TLiIQ Automatic Test Equipment (ATE) platform. As Teradyne progressively phases out legacy SE300-series hardware, procurement teams and test engineers face increasing pressure to source verified replacement boards before production lines are impacted by unplanned downtime. TOPNLMS stocks the LA768 950-601-02 as a direct replacement module, fully tested and shipped with a 12-month warranty to support your retrofit or emergency swap-out program.

The SE300 TLiIQ system is a high-throughput ATE platform widely deployed in semiconductor and electronics manufacturing environments. Its modular architecture — built around a standardized backplane and card-cage assembly — means that individual boards such as the LA768 logic analyzer can be replaced without requiring a full system overhaul. This modularity is a key advantage when managing aging test infrastructure: rather than retiring an entire SE300 chassis, engineers can extend system life by selectively replacing end-of-life or failed boards like the 950-601-02.

When migrating from a failed or obsolete LA768 board, the physical installation follows the SE300 card-cage slot assignment. The 950-601-02 uses the same edge connector pinout as its predecessor variants (including the 949-769-00D and 949-768-65 sub-assemblies referenced in the full SKU string), ensuring backward compatibility with existing backplane wiring and signal routing. No re-cabling of the test head interface or DUT board connections is required in a like-for-like swap. Engineers should verify the slot address configuration via the system’s TLiIQ software environment before powering up, as slot-address jumpers on the board must match the original configuration to avoid resource conflicts with co-resident modules such as the SE300 pin electronics cards or the digital subsystem controller.

From a software and communication protocol perspective, the LA768 interfaces with the SE300 host controller via the system’s internal VME-based or proprietary parallel bus, depending on the chassis revision. The TLiIQ test executive communicates with the logic analyzer board through a device driver layer; replacing the 950-601-02 with a verified equivalent does not require driver reinstallation provided the firmware revision on the replacement board matches or is forward-compatible with the installed TLiIQ software version. TOPNLMS can confirm the firmware revision of the shipped unit upon request, allowing your software team to validate compatibility before the board arrives on-site.

The upgrade path from a degraded or intermittently failing LA768 also intersects with adjacent SE300 subsystems. In many field cases, logic analyzer board failures co-occur with issues in the SE300 timing and synchronization module, the pattern generator card, or the parametric measurement unit (PMU) — all of which share the same backplane power rails and clock distribution network. When sourcing the 950-601-02 replacement, it is prudent to audit the health of these neighboring modules. TOPNLMS maintains inventory of complementary SE300-series boards and can assist with multi-board procurement to support a comprehensive system refresh rather than a single-point repair.

Power supply compatibility is another critical consideration. The LA768 950-601-02 draws regulated DC power from the SE300 chassis power distribution assembly. If the chassis power supply has been operating beyond its rated service life, a board swap alone may not resolve intermittent failures. Verifying that the SE300 power supply module delivers stable voltages within specification — particularly on the +5V and ±12V rails — is a recommended pre-installation step. In systems where the power supply has already been replaced or upgraded, confirm that the replacement unit’s output current capacity covers the aggregate load of all installed boards including the new LA768.

For facilities managing multiple SE300 TLiIQ systems across a production floor, a common strategy is to maintain a cold-spare LA768 board to minimize mean time to repair (MTTR). Given the increasing scarcity of original Teradyne SE300-series spares through authorized channels, sourcing verified replacement stock from specialist distributors like TOPNLMS provides a cost-effective alternative to OEM pricing — typically at a significant discount while maintaining equivalent functional performance. Each unit shipped by TOPNLMS undergoes functional verification and visual inspection prior to dispatch.

Compatibility Comparison Table

*Firmware revision compatibility should be confirmed with TOPNLMS prior to installation if the TLiIQ software version has been updated since the original board was installed.

Seamless Upgrade Solutions

A successful SE300 TLiIQ board replacement rarely involves a single component in isolation. When replacing the LA768 950-601-02 logic analyzer board, the following related modules and assemblies are commonly addressed as part of the same maintenance or upgrade event:

The SE300 pattern generator card shares the same backplane slot group as the logic analyzer and is subject to similar aging failure modes — particularly capacitor degradation and connector wear. If the LA768 is being replaced due to intermittent logic capture errors, the pattern generator should be inspected concurrently. Similarly, the SE300 parametric measurement unit (PMU) relies on stable timing references distributed across the backplane; a failing logic analyzer board can introduce clock skew that manifests as PMU measurement drift, making it a natural companion item for inspection.

The SE300 timing and synchronization module is another high-priority item during any logic analyzer board swap. This module distributes the master clock to all installed cards, and its health directly affects the accuracy of logic capture on the LA768. In systems where the 950-601-02 has been flagged for replacement due to timing-related test failures, the synchronization module should be verified — or replaced proactively — to ensure the new board operates within specification from day one.

On the connectivity side, the SE300 test head interface cable assembly and DUT interface board should be inspected for pin damage or insulation degradation, particularly in high-cycle production environments. These components are mechanical wear items that are often overlooked during board-level repairs but can cause intermittent failures that are incorrectly attributed to the logic analyzer board itself.

For facilities planning a broader SE300 infrastructure refresh, the SE300 chassis power supply module and backplane assembly are logical candidates for concurrent replacement, especially in systems that have been in continuous operation for more than a decade. Replacing the power supply alongside the LA768 eliminates a common root cause of recurring board failures and reduces the risk of a second unplanned outage shortly after the initial repair.

Finally, if the SE300 TLiIQ system is being integrated into a modernized test cell alongside newer ATE platforms, a GPIB or LAN-based system controller interface card may be required to bridge legacy SE300 communication protocols with contemporary test management software. TOPNLMS can advise on compatible interface solutions based on your specific system architecture and software environment.

Retrofit Guidance FAQ

Q: Can I install the LA768 950-601-02 replacement without reconfiguring the TLiIQ software?
A: In most cases, yes. The replacement board uses the same device interface as the original, so the TLiIQ test executive will recognize it without driver changes. However, if the firmware revision differs from the original, a firmware update or rollback may be required. TOPNLMS will confirm the firmware revision of your unit before shipment so your software team can prepare accordingly.

Q: What slot address configuration is required?
A: The LA768 must be configured to match the slot address of the original board. This is typically set via jumpers or DIP switches on the board itself. Refer to the SE300 system documentation for the correct slot assignment. If you do not have access to the original documentation, TOPNLMS can provide guidance based on your chassis configuration.

Q: Is the replacement board compatible with all SE300 TLiIQ chassis revisions?
A: The 950-601-02 is compatible with the standard SE300 TLiIQ card-cage form factor. Compatibility with specific chassis revisions should be confirmed based on your system’s backplane revision. Contact TOPNLMS with your chassis serial number or revision code for a definitive compatibility check before ordering.

Q: How long does shipping take?
A: TOPNLMS ships from Xiamen, China. Standard international shipping typically takes 5–10 business days depending on destination. Expedited options are available for urgent requirements. All units are shipped with tracking and export documentation.

Q: What if the replacement board does not resolve the system fault?
A: TOPNLMS offers a 12-month warranty covering functional defects. If the replacement board does not resolve the fault and the board itself is confirmed defective, we will arrange a replacement or refund. Our technical team can also assist with fault isolation to determine whether the root cause lies with the LA768 or an adjacent system component.

Q: Can TOPNLMS supply multiple boards for a fleet of SE300 systems?
A: Yes. TOPNLMS supports multi-unit procurement for facilities managing multiple SE300 TLiIQ systems. Volume pricing and consolidated shipping are available. Contact us at [email protected] to discuss your requirements.

Warranty Assurance

Every Teradyne LA768 950-601-02 logic analyzer board shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. This warranty covers functional defects identified under normal operating conditions consistent with the SE300 TLiIQ platform specifications. Prior to dispatch, each unit undergoes a pre-shipment functional verification and visual inspection to confirm board integrity, connector condition, and absence of physical damage.

In the event of a warranty claim, TOPNLMS will assess the returned unit and, upon confirmation of a covered defect, provide a replacement board or issue a refund at the buyer’s discretion. Our after-sales response target is 48 hours from receipt of a warranty claim notification. Buyers are responsible for return shipping costs; TOPNLMS covers outbound shipping on warranty replacements.

For procurement teams requiring documentation, TOPNLMS can provide a certificate of inspection, packing list, and commercial invoice with each shipment. Export compliance documentation for cross-border shipments is prepared in accordance with applicable trade regulations. All units are packed in anti-static packaging with appropriate cushioning for international freight.

TOPNLMS is committed to supporting industrial automation and ATE infrastructure teams with reliable spare parts, transparent sourcing, and responsive after-sales service. For urgent requirements or technical pre-sales questions, contact our team directly.
