Temposonics RHM0165MD631P102 R-Series SSI Replacement

Product Overview

Temposonics RHM0165MD631P102 R-Series SSI Replacement: Smooth Migration & Upgrade Solution

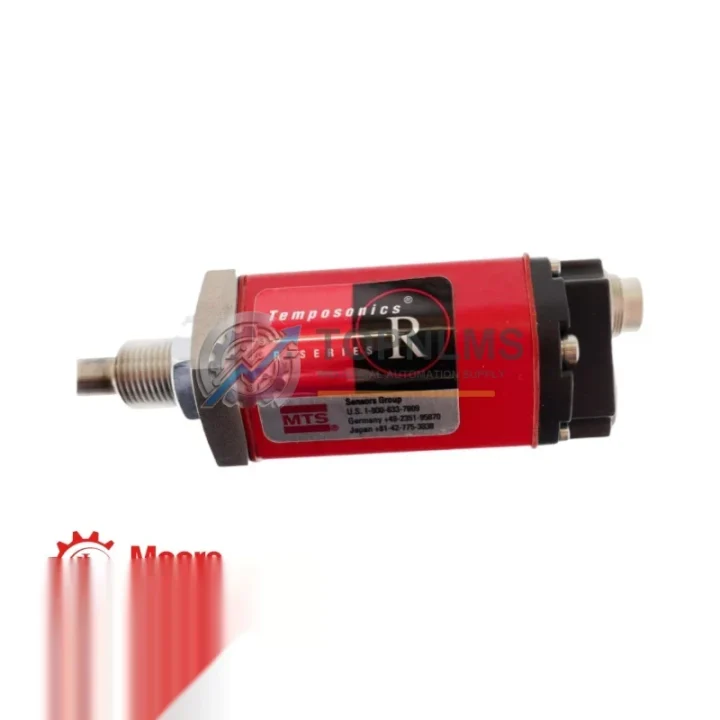

The MTS Temposonics RHM0165MD631P102 is a high-precision magnetostrictive linear position sensor from MTS Sensors’ proven R-Series platform, featuring a 165 mm stroke and SSI (Synchronous Serial Interface) digital output. As legacy R-Series units reach end-of-service life or become difficult to source through standard distribution channels, plant engineers and maintenance teams face the challenge of replacing or upgrading these sensors without disrupting ongoing production. TOPNLMS specializes in exactly this scenario — providing verified, ready-to-ship replacement units that allow your control system to resume full operation with minimal downtime and zero compromise on measurement accuracy.

Whether you are migrating from an older Temposonics R-Series analog output variant — such as the RHM0165MD601A01 (0–10 V analog) or the RHM0165MR101A01 (Start/Stop pulse) — to the SSI digital interface, or simply replacing a failed unit in a hydraulic press, injection molding machine, or servo-driven linear axis, the RHM0165MD631P102 slots directly into your existing mounting bracket and connector harness. The sensor’s standard M18 × 1.5 threaded housing and 4-pin M12 connector are mechanically identical across the R-Series generation, eliminating the need for bracket fabrication or cable re-termination in the vast majority of retrofit applications.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the RHM0165MD631P102 rarely involves the sensor alone. In most industrial control architectures, the position sensor feeds real-time displacement data to a PLC or motion controller via an SSI master interface. If your existing controller — for example a Siemens SIMATIC S7-300 equipped with an SM 338 position input module or a Beckhoff EL5001 SSI encoder terminal on an EtherCAT I/O rail — is already configured for SSI input, the transition is straightforward: isolate the axis, swap the sensor body, verify the SSI clock frequency and data-length parameters in your PLC program, and recommission under load.

For sites migrating from analog position feedback to SSI digital output, an SSI interface module must be added to the control rack. The Siemens SM 338 occupies a single slot in a standard S7-300 or S7-400 rack and is configured entirely within STEP 7 or TIA Portal — no hardware rewiring beyond the sensor cable is required. Alternatively, for distributed I/O architectures using PROFIBUS-DP or PROFINET, a Phoenix Contact IB IL SSI/I-PAC inline module or a Turck BL20 SSI gateway can bridge the sensor output to the fieldbus without modifying the main PLC rack. These solutions are particularly valuable in retrofit projects where the control cabinet is remote from the sensor and cable routing is constrained.

In hydraulic press, die-casting, or injection molding applications where the RHM0165MD631P102 is mounted inside a hydraulic cylinder, the associated position magnet — typically an MTS ring magnet compatible with the R-Series rod diameter — must be inspected and replaced if worn or corroded. The magnet is a consumable item that is frequently overlooked during sensor replacement; pairing a new magnet with the replacement sensor ensures full resolution and linearity from the first production cycle. TOPNLMS can supply matched magnet-and-sensor kits upon request.

For multi-axis synchronization applications — such as a 4-cylinder hydraulic press controlled by a Bosch Rexroth HNC100 hydraulic axis controller or a Moog Axis Controller — replacing all sensors in the same maintenance window is strongly recommended. Mixing sensor generations or output types on a synchronized axis can introduce position offset errors that are difficult to diagnose under production load. TOPNLMS can supply matched sets of RHM0165MD631P102 units from the same production batch upon request, ensuring consistent calibration across all axes.

Where the retrofit involves replacing a Temposonics E-Series or G-Series sensor with an R-Series unit, engineers should verify the rod diameter, null-zone dimension, and dead-zone length, as these parameters differ between product families. In such cases, a custom mounting flange or a Temposonics RHS-to-RHM adapter kit may be required to maintain the original installation geometry. The control cabinet wiring, however, is typically reusable if the cable is rated for SSI signal frequencies up to 1 MHz on shielded twisted-pair conductors.

Retrofit Guidance FAQ

Q: Can I replace my analog R-Series sensor with this SSI unit without modifying my PLC program?
A: Not directly. The SSI output requires a digital SSI master input channel on your PLC or motion controller. If your controller currently reads a 0–10 V or 4–20 mA analog signal, you will need to add an SSI interface module (e.g., Siemens SM 338) and update the input scaling in your program. If your controller already has an SSI input channel, only the channel parameters — data length, clock frequency, and code format — need to be verified and adjusted.

Q: Is the wiring pinout identical to my existing R-Series sensor?
A: For SSI-to-SSI replacements within the R-Series, the M12 4-pin pinout is standardized: Pin 1 = +24 V DC, Pin 2 = SSI Clock+, Pin 3 = GND, Pin 4 = SSI Data+. Differential pairs (Clock−, Data−) are carried on a separate twisted pair in the cable. Always verify against the sensor datasheet and your existing cable wiring diagram before energizing the circuit.

Q: What SSI clock frequency and data length should I configure in my PLC?
A: The RHM0165MD631P102 supports SSI clock frequencies from 100 kHz to 1 MHz. For cable runs under 10 m, 500 kHz is a reliable default. Data length is 24 bits; code format is Gray Code by default, with Binary selectable via DIP switch on the sensor electronics head. Confirm the code format matches your PLC’s SSI master configuration to avoid position inversion or systematic offset errors.

Q: How do I handle the null zone and dead zone during commissioning?
A: The R-Series has a null zone at the connector end (approximately 25 mm) and a dead zone at the rod tip (approximately 25 mm). Ensure your mechanical stroke does not enter these zones. If your application previously used a sensor with different null/dead zone dimensions, adjust the software position offset in your PLC or motion controller accordingly before running production cycles.

Q: Can this sensor be used in a hazardous area (ATEX / IECEx)?
A: The standard RHM0165MD631P102 is not ATEX-certified. For hazardous area applications, MTS Sensors offers dedicated Ex-rated R-Series variants. Contact TOPNLMS with your zone classification and we will confirm the correct part number.

Q: What communication protocols are supported for integration with my existing control system?
A: The RHM0165MD631P102 outputs SSI natively. For integration with PROFIBUS, PROFINET, EtherNet/IP, or EtherCAT networks, a protocol gateway or fieldbus-capable SSI interface module is required. TOPNLMS can advise on compatible gateway options based on your specific PLC platform and network topology.

Warranty Assurance

Every MTS Temposonics RHM0165MD631P102 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of confirmed delivery. Prior to dispatch, each sensor undergoes a functional output verification test confirming SSI signal integrity, stroke linearity across the full 165 mm range, and supply current draw within MTS factory specifications. Units that do not pass this pre-shipment check are not dispatched.

In the event of a warranty claim, TOPNLMS operates a replacement-first policy: a verified replacement unit is dispatched within 3 business days of claim confirmation, minimizing production downtime. Defective units are returned via prepaid logistics for root-cause analysis. Our after-sales technical team responds to inquiries within 24 hours on business days.

For procurement and quality teams, TOPNLMS issues a formal Certificate of Conformance and itemized packing list with every shipment, suitable for incoming inspection records and ERP goods receipt. Bulk orders of 5 or more units qualify for priority allocation from bonded stock held in Xiamen, with DHL Express or FedEx International Priority shipping available for urgent plant requirements.
