TEL TAC-3TTAATT UF7840-2-TE1 Ruggedized HMI Panel

Product Overview

TEL TAC-3TTAATT UF7840-2-TE1 Ruggedized HMI Panel: Industrial Resilience for Harsh Environments

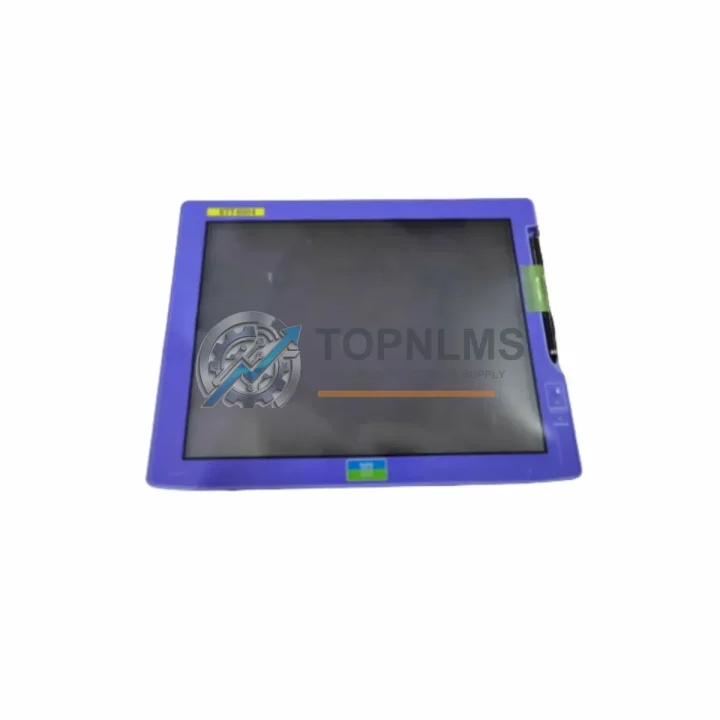

The TEL TAC-3TTAATT UF7840-2-TE1 is a ruggedized Human-Machine Interface (HMI) panel from TEL’s TAC Series, engineered to deliver uncompromising operator control and real-time process visualization in the most demanding industrial environments. Designed for continuous-duty operation across high-temperature, high-humidity, heavy-vibration, and high-EMI conditions, this operator interface panel maintains stable communication and display performance where standard HMI units fail. Whether deployed on a semiconductor process line, a heavy industrial control cabinet, or a critical infrastructure monitoring station, the TAC-3TTAATT UF7840-2-TE1 provides the rugged reliability that industrial engineers and maintenance teams depend on.

Built to TEL’s stringent quality standards, this TAC Series panel integrates seamlessly into existing control architectures, supporting communication with PLC systems, DCS controllers, and distributed I/O modules. Its robust enclosure and sealed front panel resist dust ingress and moisture, making it suitable for installation in control cabinets exposed to particulate-laden air, chemical vapors, or condensation-prone environments. The panel’s EMI shielding ensures stable signal integrity even when co-located with variable frequency drives (VFDs), industrial power supplies, and high-current motor starters that generate significant electromagnetic noise.

Rugged Specifications Table

Comprehensive Protection Solutions

The TAC-3TTAATT UF7840-2-TE1 is most effective when deployed as part of a complete, hardened control system. In a typical TAC Series control cabinet, this HMI panel interfaces directly with TEL TAC Series PLC CPU modules, which handle the core logic execution for process sequencing and safety interlocks. Alongside the CPU, TAC Series digital I/O modules and analog input modules feed real-time sensor data — temperature, pressure, flow rate — directly to the operator display, enabling immediate process visibility without additional signal conditioning hardware.

For power integrity in harsh environments, the panel is typically powered through a DIN-rail mounted 24 VDC industrial power supply with surge protection and wide-input AC tolerance, ensuring stable HMI operation even during grid fluctuations common in heavy industrial facilities. Relay output modules within the same control cabinet allow the operator to trigger alarms, initiate emergency stops, or activate safety circuits directly from the HMI interface, creating a tightly integrated safety response loop.

Communication reliability is maintained through RS-485 terminal modules and shielded communication cables that connect the TAC-3TTAATT UF7840-2-TE1 to upstream DCS controllers or SCADA systems. In installations where the HMI must coexist with variable frequency drives controlling large motors, proper grounding of the control cabinet and the use of ferrite-core EMI filters on communication lines are standard practice to prevent display corruption or communication timeouts. Safety relay modules and safety I/O modules installed in the same panel provide the hardware-level emergency stop and safety gate monitoring functions that complement the HMI’s operator interface role, ensuring that the human-machine boundary remains both functional and safe under all operating conditions.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the TAC-3TTAATT UF7840-2-TE1 is deployed in wellhead control panels and pipeline monitoring stations where operators require a reliable, readable interface under direct sunlight, wide temperature swings, and exposure to hydrocarbon vapors. Its sealed front panel and robust communication stack make it a dependable choice for remote unmanned stations where maintenance access is infrequent and uptime is non-negotiable.

In power generation plants — including coal-fired, gas turbine, and hydroelectric facilities — this HMI panel serves as the local operator terminal for turbine control systems, excitation control panels, and auxiliary equipment monitoring. The panel’s EMI shielding is particularly valuable in generator halls where high-voltage switching events create intense electromagnetic transients that can disrupt lesser-protected operator terminals.

In water and wastewater treatment plants, the TAC-3TTAATT UF7840-2-TE1 is installed in pump station control panels and chemical dosing control cabinets. The IP65 front panel rating protects against the high-pressure wash-down procedures common in these facilities, while the wide operating temperature range accommodates both outdoor pump stations and heated indoor treatment buildings.

In metallurgy and heavy manufacturing — steel mills, aluminum smelters, and foundries — the panel operates reliably in the presence of radiant heat from furnaces, airborne metallic dust, and the intense vibration generated by rolling mills and presses. Its rugged construction reduces unplanned downtime and supports rapid spare-part replacement, a critical factor in continuous-production environments where every hour of downtime carries significant financial cost.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the TAC-3TTAATT UF7840-2-TE1?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the unit fails to perform to its published specifications within the warranty period, TOPNLMS will arrange repair, replacement, or refund. The warranty period begins from the date of shipment confirmation. Warranty claims are supported by our technical team at [email protected].

Q2: How is each unit tested before shipment?
Every TAC-3TTAATT UF7840-2-TE1 unit undergoes pre-shipment functional verification, including power-on testing, display integrity check, and communication port validation. Units sourced from verified supply channels are inspected for physical condition, label authenticity, and firmware version consistency before dispatch. A test report is available upon request for critical procurement applications.

Q3: Is the TAC-3TTAATT UF7840-2-TE1 compatible with third-party PLC and DCS systems?
The TAC-3TTAATT UF7840-2-TE1 is natively designed for TEL TAC Series control architectures. Integration with third-party PLC or DCS systems is possible via RS-232C, RS-422, or RS-485 serial interfaces using compatible communication protocols. Customers are advised to verify protocol compatibility with their existing control system before installation. Our technical team can provide guidance on integration requirements.

Q4: Can TOPNLMS support long-term supply and replacement for this model?
Yes. TOPNLMS maintains stock of TAC Series HMI panels and related components to support ongoing maintenance, spare-part programs, and emergency replacement needs. For facilities running TEL TAC Series equipment, we recommend maintaining at least one spare unit on-site to minimize production downtime in the event of panel failure. Contact us at [email protected] or +86 18359293191 to discuss volume pricing, lead times, and long-term supply agreements.
