TEL E2B405/M744 Replacement/Upgrade Solution for E2B Series

Product Overview

TEL E2B405/M744 Replacement/Upgrade Solution for E2B Series: Seamless Transition from Legacy Process Controllers

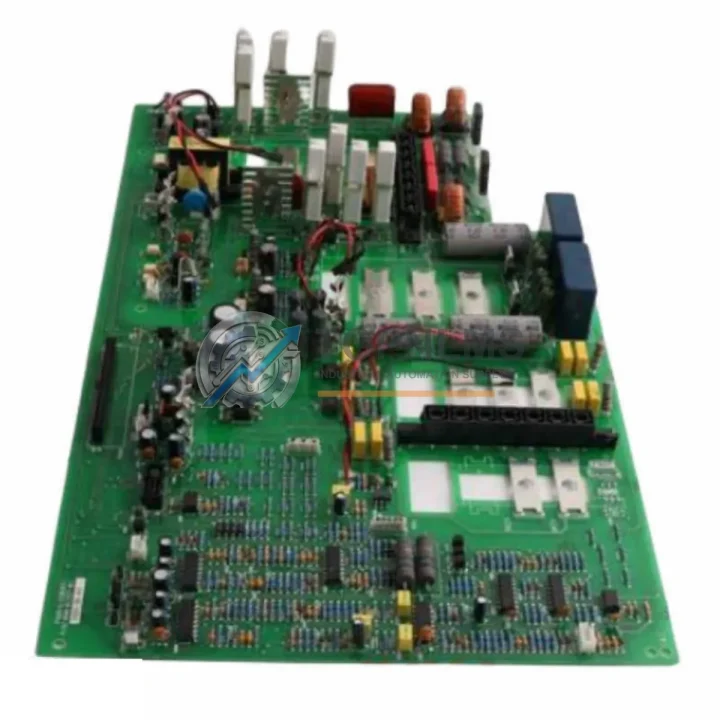

The TEL E2B405/M744 CPU PCB Card is a critical control processing board used in Tokyo Electron (TEL) semiconductor process equipment, including CVD, diffusion furnace, and oxidation systems built on the E2B/M744 platform. As TEL progressively phases out legacy controller architectures, facilities running end-of-life E2B-series process controllers face increasing risk of unplanned downtime due to unavailability of original spare parts. TOPNLMS supplies verified replacement and upgrade-compatible E2B405/M744 CPU PCB cards to support your migration from obsolete control hardware to a stable, maintainable spare-parts inventory — without requiring a full system overhaul.

Whether your facility is operating a legacy TEL Thermco or TEL Alpha-series furnace system, or managing a multi-chamber CVD platform with aging E2B-series controller racks, the E2B405/M744 board provides a direct hardware replacement path. Our stock is sourced, inspected, and function-tested to ensure compatibility with the original E2B controller backplane, I/O bus architecture, and inter-board communication protocols used across the M744 controller family.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a failed or end-of-life E2B405/M744 CPU board rarely involves replacing the CPU card alone. In most field scenarios, the CPU PCB card works in concert with a broader set of controller rack components. During the upgrade or replacement process, engineers typically also evaluate the condition of the E2B-series analog input/output boards — such as the E2B analog I/O PCB cards responsible for thermocouple signal conditioning and process variable acquisition — since these boards share the same backplane and are subject to the same aging and obsolescence cycle.

The M744 controller rack power supply module is another component that should be inspected during any CPU board replacement. A degraded rack PSU delivering marginal +5 VDC or ±12 VDC rails can cause intermittent CPU faults that mimic board failure, so confirming PSU output stability before and after the CPU swap is standard practice. Similarly, the E2B digital I/O interface boards — which handle valve control signals, interlock logic, and alarm relay outputs — should be verified for proper communication with the replacement CPU card during post-installation functional testing.

For facilities upgrading communication infrastructure alongside the CPU replacement, the E2B SECS/GEM communication interface board or the associated RS-422 serial communication module may need to be reconfigured or replaced to ensure host-to-equipment communication is re-established correctly after the CPU swap. In systems where the E2B controller interfaces with a TEL process recipe management terminal or operator interface panel, the serial communication parameters — baud rate, parity, stop bits — must be verified to match the replacement CPU board’s factory defaults.

Where the E2B controller rack is installed in a shared control cabinet alongside other TEL subsystem controllers — such as a TEL gas box controller PCB or a TEL temperature control module — the replacement procedure should include a full cabinet-level power-down sequence to prevent cross-board interference during the swap. Signal isolation between the CPU card and adjacent analog signal conditioning boards is particularly important in high-temperature furnace applications where thermocouple ground loops can introduce noise into the CPU’s data acquisition path.

Finally, for facilities that maintain a structured spare-parts program, TOPNLMS recommends holding at least one additional E2B405/M744 CPU PCB card as a cold standby alongside critical companion boards — including the E2B memory expansion board and the E2B watchdog/reset interface card — to ensure rapid recovery capability in the event of a repeat failure during high-utilization production periods.

Retrofit Guidance FAQ

Q: Is the E2B405/M744 a direct drop-in replacement for earlier E2B CPU board revisions?
A: In most cases, yes. The E2B405/M744 uses the same backplane connector pinout and card cage form factor as earlier E2B CPU board revisions. However, firmware revision differences between board generations may require a recipe reload or parameter re-entry after installation. Always refer to the TEL E2B controller service manual for your specific equipment model to confirm revision compatibility before installation.

Q: Do I need to modify any wiring when replacing the CPU board?
A: No wiring modifications are required for a like-for-like CPU board replacement within the same E2B controller rack. All field wiring connects to the I/O boards and terminal blocks on the backplane, not directly to the CPU card. The CPU card interfaces with the backplane via the card edge connector only.

Q: What communication protocols does the E2B405/M744 support?
A: The E2B405/M744 supports RS-232 and RS-422 serial communication, consistent with the M744 controller platform’s standard host interface. SECS/GEM communication capability depends on the specific firmware version and the presence of a SECS interface board in the rack. Confirm your host communication configuration before swapping the CPU board.

Q: Will my existing process recipes be preserved after the CPU board replacement?
A: Process recipes stored on the host computer or on external media are unaffected by the CPU board swap. Recipes or parameters stored in on-board EEPROM or battery-backed RAM on the original CPU board will need to be reloaded from backup after replacement. Ensure you have a current recipe backup before beginning the swap procedure.

Q: How much physical space does the replacement board require?
A: The E2B405/M744 occupies a single standard E2B card cage slot. No additional rack space or cabinet modification is required. The board dimensions are identical to the original, ensuring a direct physical fit in the existing controller rack.

Q: What is the recommended procedure for post-installation system verification?
A: After installing the replacement CPU board, perform a controlled power-up sequence per the TEL service manual. Verify all I/O board communication, confirm process variable readings from thermocouple and analog inputs, test interlock and alarm relay outputs, and perform a dry-run recipe execution before returning the equipment to production. Document all parameter settings before and after the swap.

Warranty Assurance

Every TEL E2B405/M744 CPU PCB Card supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point outgoing inspection that includes visual examination for physical damage, connector integrity verification, and functional bench testing where applicable. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing for customers experiencing active production downtime. Our technical team is available to assist with installation guidance, compatibility verification, and post-installation troubleshooting to minimize the impact of any field issue on your production schedule.

Orders are processed and dispatched from our Xiamen warehouse, with express international shipping options available to minimize transit time for urgent replacement requirements. We support shipment to semiconductor fabs, equipment service centers, and industrial facilities worldwide.
