Tektronix PCE-2 LIF-1 K15SB000 Replacement Solution

Product Overview

Tektronix PCE-2 LIF-1 K15SB000 Replacement Solution: Seamless PCE-2 Series Upgrade & Migration

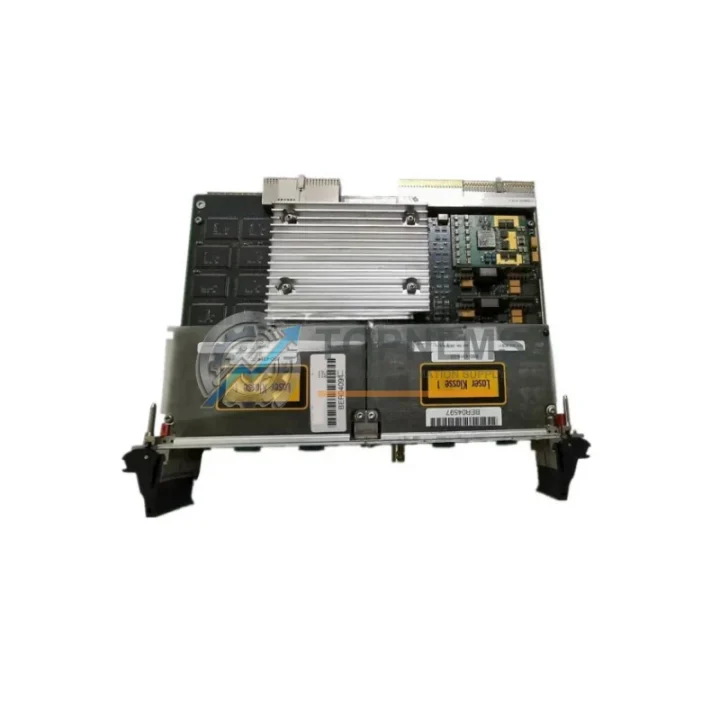

The Tektronix PCE-2 LIF-1 K15SB000 (cross-reference: 039-0137-00 / 657-0000-00) is a Logic Interface Control Board originally designed for the Tektronix PCE-2 mainframe platform. As legacy PCE-2 series instruments and embedded control systems approach end-of-life, sourcing a verified replacement or upgrade-compatible board has become a critical priority for maintenance engineers, system integrators, and procurement teams managing aging industrial test and control infrastructure.

TOPNLMS supplies this board as a direct replacement component, fully tested and ready for installation. Whether you are maintaining an existing PCE-2 chassis, recovering from an unexpected board failure, or executing a planned migration away from discontinued Tektronix PCE-2 platform hardware, this solution is engineered to minimize downtime and reduce retrofit complexity.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PCE-2 platform migration or board-level replacement rarely involves a single component in isolation. In practice, engineers replacing the PCE-2 LIF-1 K15SB000 logic interface board are often simultaneously addressing adjacent system components that have reached the same end-of-life threshold.

Within the PCE-2 mainframe chassis, the logic interface board works in close coordination with the PCE-2 power supply module, which provides the regulated DC rails that the LIF-1 board depends on. If the power supply module shows signs of capacitor aging or voltage drift, replacing it alongside the LIF-1 board eliminates a common root cause of intermittent logic faults. Similarly, the PCE-2 backplane itself — the passive bus structure that interconnects all plug-in modules — should be inspected for oxidized edge connector contacts before installing the replacement LIF-1 board, as poor backplane contact resistance can cause the new board to exhibit the same symptoms as the failed original.

For systems where the PCE-2 platform interfaces with external programmable logic controllers or distributed control systems, the communication path between the PCE-2 logic interface and the host PLC CPU module is equally important. Customers migrating from older SIMATIC S5 series PLCs or Allen-Bradley SLC 500 series controllers to modern platforms such as the Siemens S7-300 or S7-1500 CPU modules often find that the PCE-2 LIF-1 board serves as the last legacy bridge in an otherwise modernized control architecture. In these scenarios, the LIF-1 replacement extends the operational life of the PCE-2 mainframe while the broader PLC migration is completed in planned phases, avoiding a full system shutdown.

In control cabinet environments, the PCE-2 mainframe is frequently installed alongside PROFIBUS DP communication modules, analog I/O expansion cards, and 24 VDC DIN-rail power supplies from manufacturers such as Phoenix Contact or WAGO. When the LIF-1 board is replaced, it is good practice to verify that the PROFIBUS DP network termination resistors are correctly set and that the baud rate configuration on adjacent DP slave modules remains consistent with the PCE-2 host configuration. Incorrect termination after a board swap is a common source of post-maintenance communication faults that can be mistaken for a defective replacement board.

For customers executing a broader instrument modernization program, the PCE-2 LIF-1 K15SB000 replacement can be paired with updated signal conditioning modules, isolation amplifiers, or modern HMI panels to create a hybrid architecture that preserves the PCE-2 chassis investment while improving operator interface and data acquisition capabilities. Programmable relay output modules and digital I/O terminal blocks mounted in the same control cabinet can be retained without modification, as the LIF-1 board replacement does not alter the external wiring interface of the PCE-2 system.

Retrofit Guidance FAQ

Q: Is the PCE-2 LIF-1 K15SB000 a direct drop-in replacement — does it require any wiring changes?
A: Yes, it is a direct drop-in replacement. The board uses the same PCE-2 backplane edge connector and slot form factor as the original. No external wiring modifications are required. Simply power down the PCE-2 mainframe, remove the failed board, insert the replacement, and restore power.

Q: Do I need to re-program or re-configure the replacement board?
A: No re-programming is required for a direct LIF-1 swap within the same PCE-2 mainframe. The board is pre-configured for the LIF-1 logic interface function. If your PCE-2 system has been modified from its original factory configuration, consult your system documentation before installation.

Q: Is the replacement board compatible with the PCE-2 internal communication bus?
A: Yes. The replacement PCE-2 LIF-1 K15SB000 is fully compatible with the PCE-2 internal bus architecture and logic interface protocol. No bus configuration changes are needed.

Q: Will the replacement board fit in the original PCE-2 chassis slot?
A: Yes. The board dimensions and slot form factor are identical to the original. No chassis modification, bracket adaptation, or additional mounting hardware is required.

Q: What should I check before installing the replacement board to avoid post-swap faults?
A: Before installation, inspect the PCE-2 backplane edge connector contacts for oxidation or debris and clean if necessary. Verify that the mainframe power supply is delivering correct voltage rails. After installation, confirm that all adjacent plug-in modules are fully seated and that any external communication cables are securely connected.

Q: Can this board be used as a spare / standby unit for preventive maintenance?
A: Yes. Holding a tested spare PCE-2 LIF-1 K15SB000 in inventory is strongly recommended for facilities where PCE-2 platform downtime carries significant operational cost. TOPNLMS can supply multiple units with individual test reports.

Warranty Assurance

Every PCE-2 LIF-1 K15SB000 replacement board supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional verification test to confirm board integrity and correct logic interface operation. If a board is found to be defective on arrival or fails within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or issue a refund — subject to return inspection.

Shipments are processed from Xiamen, China, with standard lead times of 3–7 business days for in-stock units. Express shipping options are available for urgent breakdown situations. Each shipment includes a packing list and, where applicable, a test report. For bulk procurement or standing orders, please contact our sales team to discuss pricing, lead time commitments, and consignment stock arrangements.

TOPNLMS maintains a dedicated after-sales response channel for technical queries related to installation, compatibility verification, and warranty claims. Our team is available to support your engineering and procurement teams throughout the replacement and commissioning process.

For procurement inquiries, technical compatibility questions, or to request a quotation, please contact us directly.
