TECSYSTEM NT538 Replacement & Upgrade for NT500 Series

Product Overview

TECSYSTEM NT538 Replacement & Upgrade for NT500 Series: Smooth Transition from Legacy Motor Protection Systems

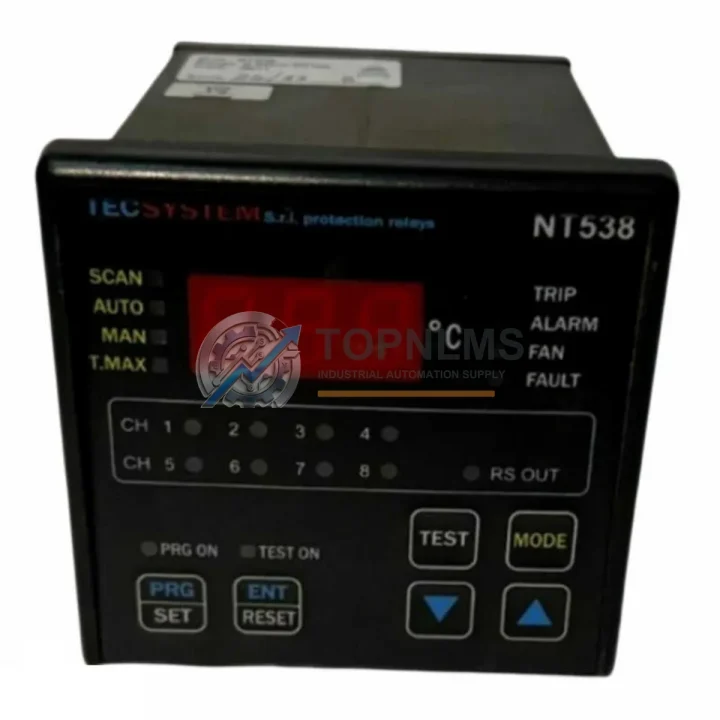

The TECSYSTEM NT538 is a precision motor thermal protection relay engineered for the NT500 Series platform, designed to safeguard three-phase induction motors against overtemperature conditions caused by overload, phase imbalance, locked rotor, or inadequate cooling. For facilities operating aging thermal protection infrastructure — including discontinued models such as the NT535, NT536, and NT537 — the NT538 represents a direct, field-proven upgrade path that preserves existing wiring topology, DIN rail mounting footprint, and relay output logic without requiring panel redesign or PLC reprogramming.

Industrial sites running legacy motor protection schemes often face the challenge of sourcing compatible replacements when original equipment reaches end-of-life. The NT538 addresses this directly: its terminal layout mirrors the NT500 Series standard, meaning field technicians can execute a like-for-like swap with minimal downtime. The relay accepts PTC thermistor inputs from embedded motor sensors, processes the resistance curve in real time, and triggers a normally-closed output contact upon threshold breach — a behavior fully consistent with predecessor NT500 units and compatible with downstream safety relay chains or PLC digital input modules.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete motor protection retrofit rarely involves a single component. When upgrading from a legacy NT500-based protection scheme to the NT538, engineers typically review the broader control cabinet architecture to ensure all interdependent components remain coordinated. In practice, the NT538 is most commonly deployed alongside a motor circuit breaker or contactor assembly — such as those from the Schneider Electric TeSys D or Siemens 3RT series — where the relay’s NC output is wired in series with the contactor coil circuit to achieve a hardwired trip function independent of PLC logic.

For installations where the NT538 feeds into a PLC digital input card — for example, a Siemens S7-300 SM321 digital input module or an Allen-Bradley 1756-IB16 ControlLogix I/O module — no ladder logic changes are required provided the input polarity and voltage level remain consistent with the existing program. The relay’s dry contact output is voltage-agnostic at the contact level, making it compatible with 24 V DC PLC input circuits without additional signal conditioning.

In distributed control architectures, where motor protection status is monitored via a Profibus DP or Modbus RTU network, the NT538 itself operates as a hardwired device; however, its output can be wired to a remote I/O module — such as a Phoenix Contact Inline or Wago 750 series fieldbus coupler — to relay trip status upstream to the DCS or SCADA layer. This approach is common in water treatment, HVAC, and compressor station applications where dozens of motors are supervised from a central control room.

Panel builders retrofitting older cabinets should also assess the power supply rail. The NT538’s auxiliary supply draws minimal burden current, making it compatible with standard 24 V DC SITOP or Phoenix Contact QUINT power supply units already present in most NT500-era panels. Terminal blocks from the Weidmüller WDU or Phoenix Contact UK series are dimensionally compatible with the NT538’s screw terminals, simplifying cable management during the swap. Where PTC sensor cables are being re-routed or extended, shielded twisted-pair cable with proper grounding at one end is recommended to prevent false trips from electromagnetic interference in variable-frequency drive (VFD) environments — particularly relevant when the protected motor is driven by a Danfoss FC302 or ABB ACS880 series drive.

Retrofit Guidance FAQ

Q: Can I reuse the existing PTC sensor wiring from my NT535 installation?
A: Yes. The NT538 uses the same PTC thermistor input standard (DIN 44081/44082) as all NT500 Series predecessors. Existing sensor cables can be reconnected to the NT538 terminals without modification, provided cable insulation integrity is confirmed during the swap.

Q: Will my PLC program need to be modified after replacing the relay?
A: No reprogramming is required. The NT538 presents the same dry contact output behavior as the legacy unit. Your existing PLC input rung logic, HMI alarm tags, and SCADA point mapping remain valid without change.

Q: Is the NT538 compatible with both manual and automatic reset configurations?
A: Yes. The reset mode is selectable via an internal jumper, matching the configuration options available on NT535/NT536/NT537 units. Verify the jumper position matches your existing site standard before energizing.

Q: What is the physical footprint, and will it fit in my existing DIN rail slot?
A: The NT538 maintains the standard NT500 Series DIN rail width. In most cases, no panel modification is needed. Confirm the available slot width in your control cabinet before ordering if adjacent components are tightly spaced.

Q: Can the NT538 be used with motors driven by variable-frequency drives (VFDs)?
A: Yes. Because the NT538 monitors motor winding temperature via embedded PTC sensors rather than line current, it is fully compatible with VFD-driven motors where current-based overload relays may give inaccurate readings due to harmonic distortion.

Q: What happens if the PTC sensor wire is broken or short-circuited?
A: The NT538 includes sensor fault detection. An open-circuit or short-circuit condition on the PTC input will trigger a fault output, preventing undetected motor damage from a failed sensor — a critical safety feature for unattended or remote installations.

Warranty Assurance

Every TECSYSTEM NT538 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including PTC input response testing, output contact continuity check, and supply voltage acceptance testing. Units are shipped in original or equivalent protective packaging with full traceability documentation.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement unit dispatch or full refund processing within agreed lead times. Our technical support team is available to assist with installation queries, wiring verification, and compatibility confirmation before and after purchase — reducing the risk of incorrect installation and unnecessary returns.

Stock is maintained in Xiamen for prompt dispatch. Standard lead time for in-stock NT538 units is 3–7 business days for international shipments, with express options available on request. All export documentation, including commercial invoice, packing list, and certificate of origin, is prepared in compliance with customs requirements for your destination country.

For volume procurement, OEM replacement programs, or urgent breakdown orders, contact our sales team directly to confirm availability and arrange priority fulfillment.
