TDK 653B-21801 Original Industrial Spare TAS Series Compatible: System Stability & Maintenance Value

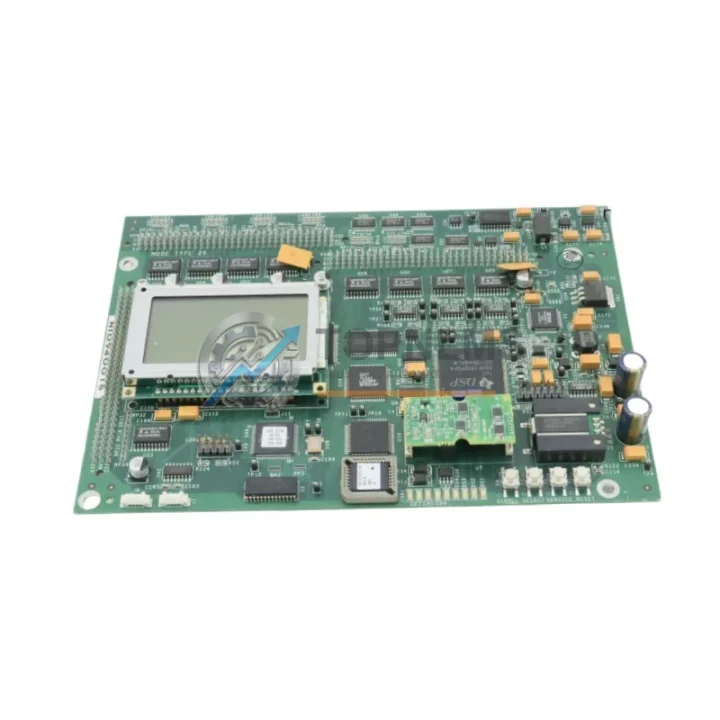

The TDK 653B-21801 TAS-CPU TAS-MAIN REV.4.10 is a critical CPU control board designed for FOUP (Front Opening Unified Pod) load port systems widely deployed in semiconductor fabrication and precision automation environments. As a genuine original spare part, this board serves as the central processing and coordination unit for TAS-series load port controllers, governing wafer cassette docking sequences, sensor feedback loops, and inter-system communication. Maintaining a verified stock of this component is a foundational element of any responsible preventive maintenance program in fab or cleanroom environments.

Unplanned downtime in semiconductor automation is extraordinarily costly. A single failed CPU board on a FOUP load port can halt an entire wafer transfer line, cascading into tool idle time, WIP (work-in-progress) delays, and yield loss. The TDK 653B-21801 eliminates this risk by providing a direct, drop-in replacement that preserves the original firmware revision (REV.4.10), communication protocols, and mechanical mounting geometry — ensuring zero re-qualification overhead when swapping into an existing TAS-series load port assembly.

Every unit shipped from TOPNLMS undergoes functional verification prior to dispatch. The board is inspected for component-level integrity, connector condition, and board-level continuity. It is packaged in anti-static ESD shielding with foam cushioning to prevent transit damage, and ships with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Critical Technical Specs

Preventive Maintenance Strategy

A FOUP load port system is a tightly integrated electromechanical assembly. When scheduling maintenance or responding to a CPU board fault on the TDK 653B-21801, experienced maintenance engineers know that the CPU board rarely fails in isolation. A comprehensive inspection and spare-parts audit should extend to the full load port control stack.

The TAS-IO board (I/O interface module) works in direct coordination with the TAS-MAIN CPU board, handling digital input/output signal routing between the load port actuators and the host tool controller. If the CPU board has experienced a power surge or ESD event, the TAS-IO board should be inspected simultaneously, as both boards share the same internal bus and power rail. Stocking a spare TAS-IO module alongside the 653B-21801 is a widely adopted practice in high-uptime fab environments.

The TAS-series power supply module is another component that warrants attention during any CPU board replacement. An aging or under-spec power supply is a common root cause of intermittent CPU resets and communication faults. Verifying output voltage stability on the 5V and 24V rails before reinstalling a new CPU board prevents repeat failures and protects the replacement investment.

During a load port inspection, maintenance teams should also evaluate the condition of the FOUP door latch actuator assembly and its associated motor driver board. These components interact directly with the CPU board’s motion control outputs. Worn actuator mechanisms can generate back-EMF spikes that stress the CPU board’s output drivers over time. Replacing or refurbishing the actuator assembly as part of a planned overhaul extends the service life of the new CPU board.

The mapping sensor unit — typically an optical or CCD-based wafer presence sensor — is another component in the same maintenance window. Sensor calibration drift or connector degradation can cause the TAS-CPU to log false mapping errors, which are sometimes misdiagnosed as CPU board failures. Cleaning sensor optics and verifying signal integrity before condemning the CPU board can save significant cost.

For facilities running multiple TDK TAS-series load ports, a communication interface card (such as the TAS-COM or equivalent SECS/GEM interface module) should be included in the periodic inspection cycle. These cards manage host-to-equipment communication and are subject to firmware compatibility constraints tied to the CPU board revision. Ensuring the COM module firmware is aligned with REV.4.10 of the TAS-MAIN board prevents handshake failures after a board swap.

Finally, terminal blocks, ribbon cable assemblies, and board-to-board connectors within the load port control cabinet should be inspected for oxidation, micro-fractures, and seating integrity. Connector failures are a leading cause of intermittent faults that are incorrectly attributed to the CPU board. A full connector audit during the same maintenance window maximizes the value of the board replacement and reduces the probability of a repeat service call.

Strategic Replacement Solutions

The TDK 653B-21801 TAS-CPU TAS-MAIN REV.4.10 is a legacy-compatible board that allows facilities to extend the operational life of existing TAS-series load port installations without undertaking a full equipment upgrade. As TDK’s TAS platform has been deployed across multiple generations of 200mm and 300mm fab toolsets, the availability of genuine original spare boards is increasingly constrained through standard distribution channels. TOPNLMS maintains verified stock of this board to support facilities that require immediate replacement without lead-time delays.

For maintenance planners managing aging load port fleets, the strategic value of stocking the 653B-21801 is clear: a single unplanned downtime event typically costs far more than the cost of maintaining a buffer stock of one to two spare CPU boards per tool cluster. The board’s direct form-factor compatibility with the TAS-series chassis means no mechanical modification, no firmware re-flashing, and no re-qualification of the load port’s SEMI E84 handshake sequence — the replacement is transparent to the host tool controller.

For facilities transitioning from older TAS firmware revisions, REV.4.10 represents a stable, widely validated release. Standardizing the installed base on this revision simplifies spare parts management and reduces the risk of firmware-related incompatibilities during emergency replacements. TOPNLMS can advise on revision compatibility for specific tool configurations upon request.
