TAMAGAWA AU6616N1021E2 Ruggedized Servo Drive for Harsh Environments

Product Overview

TAMAGAWA AU6616N1021E2 Ruggedized Servo Drive Amplifier – Industrial Resilience for Harsh Environments

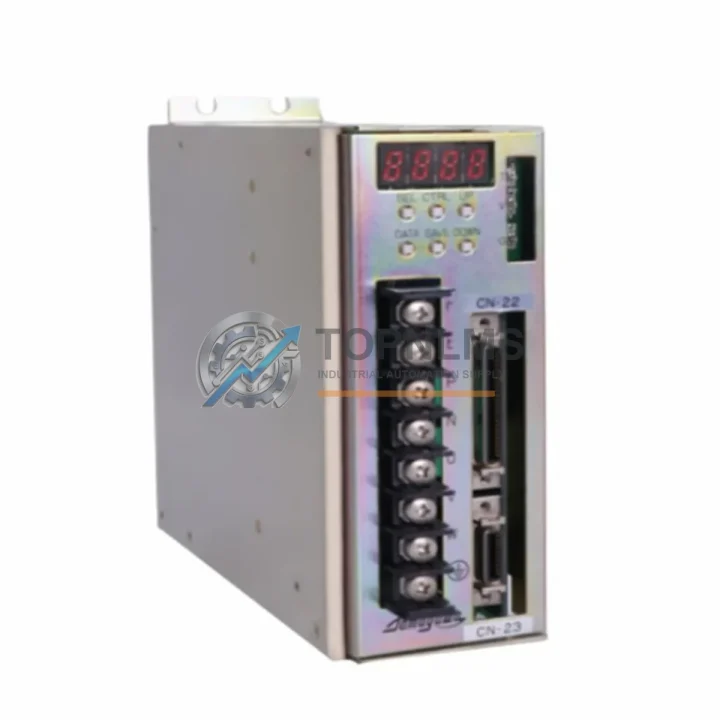

The TAMAGAWA AU6616N1021E2 is a high-performance servo drive amplifier from TAMAGAWA SEIKI’s proven AU Series, engineered to deliver precise motion control and sustained reliability in the most demanding industrial environments. Whether deployed in high-temperature foundries, high-humidity coastal processing plants, dust-laden mining galleries, or vibration-intensive heavy manufacturing lines, the AU6616N1021E2 maintains stable closed-loop servo control without compromise. Its ruggedized design philosophy addresses the full spectrum of industrial hazards — thermal stress, mechanical shock, electromagnetic interference (EMI), and continuous-duty cycle fatigue — making it a trusted backbone component for mission-critical automation systems worldwide.

TAMAGAWA SEIKI has built its reputation over decades of supplying precision motion control components to aerospace, defense, and heavy industry. The AU Series servo amplifiers inherit this legacy, combining compact form factor with industrial-grade protection to serve as the drive intelligence behind servo motors in applications where downtime is not an option. The AU6616N1021E2 specifically is designed for integration with TAMAGAWA resolver-feedback servo motors, ensuring seamless closed-loop position and velocity control with high-resolution accuracy even under load disturbances common in real-world industrial settings.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial automation architectures, a servo drive amplifier like the AU6616N1021E2 never operates in isolation. It functions as a precision actuator node within a broader control ecosystem that must be equally robust. At TOPNLMS, we supply the full range of complementary components that integrate with the AU6616N1021E2 to form a complete, hardened automation solution.

On the control side, the AU6616N1021E2 typically receives motion commands from a PLC or motion controller — commonly a Siemens SIMATIC S7-300/S7-400 CPU module or a Mitsubishi MELSEC Q-Series CPU, both of which support high-speed pulse-direction or analog velocity command outputs compatible with the AU Series amplifier interface. In DCS-integrated environments, the drive may receive setpoints via an Emerson DeltaV I/O module or an ABB AC800M controller, with the AU6616N1021E2 translating those analog signals into precise torque and velocity commands to the servo motor.

Power quality is critical for servo drive longevity. The AU6616N1021E2 should be paired with a dedicated industrial-grade servo power supply unit or a Siemens SITOP PSU8200 power supply module to ensure clean, regulated DC bus voltage free from line transients. Upstream, a line filter / EMC filter module — such as those from Schaffner or TDK-Lambda — protects the drive from grid-borne interference in facilities with heavy motor loads or arc welding equipment nearby.

For safety-critical installations, the AU6616N1021E2 is typically integrated with a Pilz PNOZ safety relay module or a Siemens SIRIUS 3SK safety relay to implement STO (Safe Torque Off) and SS1 (Safe Stop 1) functions, ensuring the servo axis can be safely de-energized during emergency stop events without mechanical brake dependency. In multi-axis systems, a TAMAGAWA TS5700N8501 resolver-to-digital converter or compatible encoder interface module provides the position feedback loop integrity that the AU6616N1021E2 relies on for accurate closed-loop control.

Communication between the drive and supervisory systems is often handled through PROFIBUS DP communication modules or EtherNet/IP adapter cards installed in the PLC rack, enabling real-time status monitoring, fault diagnostics, and parameter adjustment without physical access to the control cabinet. Terminal modules and Phoenix Contact CLIPLINE terminal blocks provide the reliable field-wiring termination points that keep signal integrity intact even in high-vibration enclosures.

Application in Critical Infrastructure

The AU6616N1021E2 has demonstrated reliable performance across a wide range of critical infrastructure sectors where servo motion control is essential and failure consequences are severe.

In oil and gas processing facilities, the AU6616N1021E2 drives precision valve actuators and pump control systems on wellheads and pipeline compressor stations. Its EMI tolerance is particularly valuable in environments where high-power variable frequency drives (VFDs) and large induction motors create significant electromagnetic noise on shared power buses. The drive’s resolver-based feedback system — immune to the optical degradation that can affect encoder discs in hydrocarbon-contaminated atmospheres — ensures position accuracy is maintained throughout continuous production cycles.

In underground mining operations, the AU6616N1021E2 controls conveyor positioning systems, rock drill feed axes, and ore sorting machinery. The combination of vibration resistance and wide operating temperature range makes it suitable for deployment in both surface processing plants and underground galleries where ambient conditions fluctuate dramatically between shifts. Spare parts availability and rapid replacement capability are critical in mining — TOPNLMS maintains verified stock of the AU6616N1021E2 specifically to support emergency replacement scenarios where production stoppage costs are measured in thousands of dollars per hour.

In power generation plants — including thermal, hydro, and nuclear auxiliary systems — the AU6616N1021E2 is used in turbine governor actuator systems, fuel feed control axes, and cooling system valve positioning. The drive’s ability to maintain stable velocity control under varying load conditions makes it well-suited for governor applications where speed regulation directly affects grid frequency stability.

In metallurgical and steel mill environments, the AU6616N1021E2 operates in rolling mill positioning systems, ladle transfer car drives, and continuous casting machine axes. These environments combine extreme heat radiation, heavy mechanical vibration, and intense electromagnetic interference from large arc furnaces — conditions that the AU Series amplifier is specifically rated to withstand in properly designed control cabinet installations with adequate thermal management.

In water and wastewater treatment facilities, the drive controls pump positioning, valve actuators, and dosing system axes in environments characterized by high humidity, chemical vapors, and 24/7 continuous operation requirements. The 12-month warranty and TOPNLMS’s commitment to long-term spare parts supply make the AU6616N1021E2 a sound procurement choice for municipal infrastructure operators who require multi-year parts availability guarantees.
