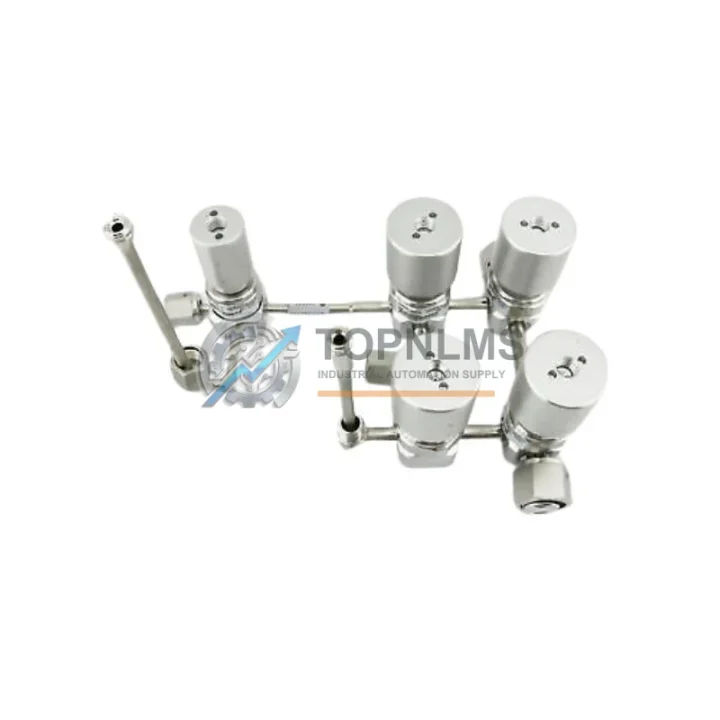

Swagelok 6LV-BN8BW6-DU-C Ruggedized High Purity Valve: Industrial Resilience for Harsh Environments

The Swagelok 6LV-BN8BW6-DU-C is a bellows-sealed angle valve engineered for demanding industrial applications where zero-leak integrity, long service life, and resistance to extreme operating conditions are non-negotiable. Part of Swagelok’s proven 6LV Series, this valve features a 6.0 mm OD butt weld end connection and a dual-certified bellows seal design that eliminates stem leakage — a critical requirement in high purity gas distribution, semiconductor fabrication, chemical processing, and energy infrastructure.

In environments characterized by high temperature cycling, vibration, corrosive media, and stringent cleanliness standards, the 6LV-BN8BW6-DU-C delivers consistent shutoff performance without compromise. Its all-metal construction and electropolished internal surfaces make it the preferred choice for ultra-high purity (UHP) fluid systems where contamination is unacceptable and downtime is costly.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6LV-BN8BW6-DU-C is rarely deployed in isolation. In a fully engineered high purity gas distribution system, it works in concert with a range of Swagelok and compatible instrumentation components to ensure system-wide safety and reliability. Upstream of the valve, Swagelok 6LV Series manual diaphragm valves and Swagelok SS-4H series high-pressure needle valves provide primary isolation and flow regulation. Downstream, Swagelok FW Series filter-welded assemblies and Swagelok MR Series pressure regulators maintain clean, pressure-stable delivery to process tools.

In semiconductor fab environments, the 6LV-BN8BW6-DU-C is commonly integrated into gas stick assemblies alongside Swagelok mass flow controller (MFC) interface fittings, Swagelok W-Series weld fittings, and Swagelok VCR face-seal fittings to create a fully welded, particle-free gas path. For chemical injection applications in oil and gas, it pairs with Swagelok SS-CHS series check valves and Swagelok 40G Series medium-pressure ball valves to form robust injection skid assemblies capable of withstanding wellhead pressure fluctuations and H₂S-laden process streams.

In analytical and laboratory instrument gas supply lines, the 6LV-BN8BW6-DU-C is frequently used alongside Swagelok SS-4BK series back-pressure regulators and Swagelok 6LV-D Series diaphragm-sealed valves to protect sensitive detectors from pressure surges and contamination. Its passive mechanical design means it introduces no electrical noise into the system — a key advantage in environments where electromagnetic interference (EMI) from variable frequency drives (VFDs), servo controllers, or high-current bus bars could compromise signal integrity in adjacent instrumentation.

For facilities managing multiple gas species, the valve’s compatibility with Swagelok’s modular Gas Distribution System (GDS) surface-mount components allows it to be incorporated into standardized gas panel architectures, simplifying maintenance, spare parts management, and system documentation across multi-tool fab environments.

Application in Critical Infrastructure

The Swagelok 6LV-BN8BW6-DU-C is deployed across the most demanding sectors of global critical infrastructure:

Semiconductor & Electronics Manufacturing: In 300 mm wafer fab environments, UHP gas purity directly determines yield. The 6LV-BN8BW6-DU-C’s electropolished internal surfaces and dual bellows seal prevent metallic particle generation and outgassing, protecting process gases such as silane (SiH₄), nitrogen trifluoride (NF₃), and hydrogen chloride (HCl) from contamination at the point of use.

Oil & Gas — Upstream and Midstream: On offshore platforms and onshore wellheads, valves must withstand salt spray, H₂S exposure, and continuous vibration from rotating equipment. The all-316L stainless steel construction of the 6LV-BN8BW6-DU-C provides excellent resistance to chloride stress corrosion cracking (SCC), making it suitable for sour service applications in chemical injection and instrument gas supply lines.

Power Generation & Utilities: In hydrogen-cooled generators and fuel cell balance-of-plant systems, the zero-leak bellows seal design is essential for safe hydrogen handling. The valve’s rated leak integrity of less than 1 × 10⁻⁹ std cm³/s helium meets the stringent requirements of hydrogen safety standards, reducing the risk of ignition in enclosed generator halls and turbine enclosures.

Pharmaceutical & Biotech: In sterile manufacturing environments, the valve’s cleanroom-compatible packaging and UHP-cleaned internal surfaces support compliance with FDA 21 CFR Part 11 and EU GMP Annex 1 requirements for gas systems supplying bioreactors, lyophilizers, and aseptic filling lines.

Mining & Metallurgy: In mineral processing and smelting operations, high-dust environments and aggressive chemical atmospheres demand valves that maintain shutoff integrity without relying on elastomeric seals that can degrade under solvent or acid exposure. The 6LV-BN8BW6-DU-C’s all-metal bellows seal is inherently resistant to chemical attack, making it a reliable choice for reagent dosing and inert gas blanketing systems in metallurgical plants.

Water Treatment & Environmental: In ozone generation and chlorine dosing systems for municipal water treatment, the valve’s corrosion-resistant materials and zero-leak design prevent hazardous gas releases, protecting both plant personnel and downstream water quality.
