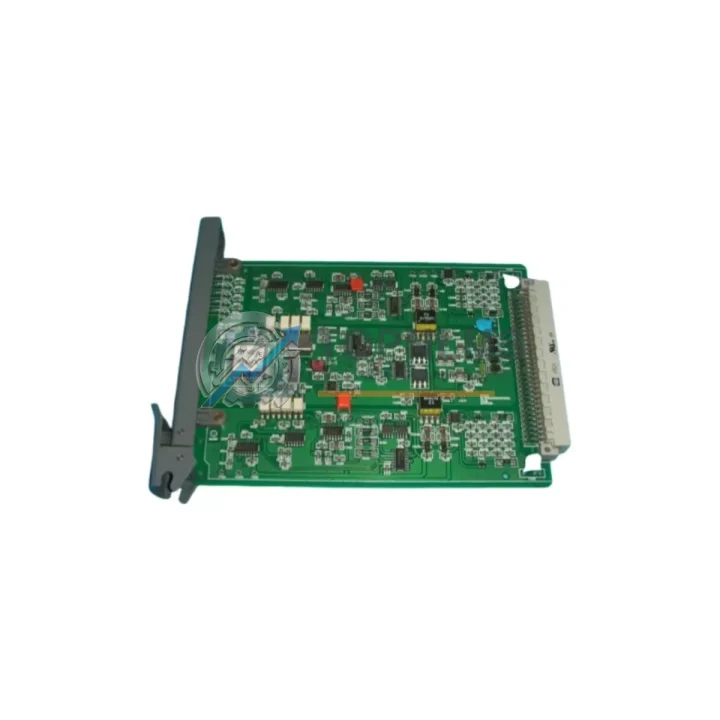

SUPCON XP316 Ruggedized I/O Expansion Module

Product Overview

SUPCON XP316 Ruggedized I/O Expansion Module: Industrial Resilience for Harsh Environments

The SUPCON XP316 is a high-density I/O expansion module engineered for the SUPCON XP Series distributed control system (DCS) and PLC platform. Designed to operate continuously in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, and vibration-intensive heavy manufacturing floors — the XP316 delivers the signal integrity and system stability that mission-critical operations demand. Whether deployed in a centralized control cabinet or distributed across a remote I/O rack, this module maintains deterministic scan cycles and reliable field-device communication under conditions that would compromise lesser hardware.

Built to SUPCON’s rigorous industrial-grade standards, the XP316 supports seamless integration within the XP Series control architecture, enabling engineers to expand analog and digital I/O capacity without redesigning the existing control topology. Its robust backplane connector and conformal-coated PCB resist corrosion, condensation, and particulate ingress, making it equally suited for petrochemical refineries, coal-fired power stations, municipal water treatment plants, and steel mill automation lines.

Rugged Specifications Table

Comprehensive Protection Solutions

The XP316 does not operate in isolation — it is a critical node within a broader SUPCON XP Series control architecture. In a typical JX-300XP DCS cabinet, the XP316 works in concert with the SUPCON XP243 communication module to relay field signals over the SBUS network to the main controller. Alongside the XP313 analog input module and XP322 analog output module, the XP316 forms a complete signal conditioning chain that handles 4–20 mA transmitter inputs, thermocouple signals, and valve positioner outputs simultaneously.

For digital control loops, the XP316 pairs naturally with the XP362 digital input module and XP363 digital output module, enabling discrete on/off control of motor starters, solenoid valves, and safety interlocks. In high-availability configurations, engineers often deploy the XP251 redundant power supply module alongside the XP316 to ensure uninterrupted 24 VDC backplane power even during a single-point power failure — a standard practice in continuous process industries where unplanned shutdowns carry significant financial and safety consequences.

Electromagnetic interference is a persistent challenge in heavy industrial environments where large variable frequency drives (VFDs), high-voltage switchgear, and induction motors generate significant conducted and radiated noise. The XP316’s isolated channel design and shielded backplane interface suppress common-mode interference, complementing the EMC filtering built into the SUPCON XP248 I/O bus coupler. For installations requiring intrinsic safety barriers between the control cabinet and hazardous-area field instruments, the XP316 integrates seamlessly with Zener barrier and galvanic isolator assemblies mounted on adjacent DIN rails within the same cabinet.

In safety-instrumented system (SIS) architectures, the XP316 is frequently deployed in the non-safety layer alongside dedicated SUPCON safety controller modules that handle SIL-rated logic, ensuring that the standard control layer and the safety layer share a common I/O infrastructure while maintaining functional independence. This layered approach reduces cabinet footprint, simplifies wiring, and lowers total installed cost without compromising the integrity of the safety function.

Application in Critical Infrastructure

Across China’s industrial heartland and in export projects throughout Southeast Asia and the Middle East, the SUPCON XP316 has accumulated a proven track record in some of the most demanding process environments on earth.

In petrochemical and refinery applications, the XP316 manages temperature, pressure, and flow signals from field transmitters located in classified hazardous areas. Operating continuously at ambient temperatures that can exceed 50°C in summer, the module’s wide thermal tolerance and conformal-coated PCB prevent the oxidation and delamination failures that plague standard commercial-grade hardware in these conditions.

In coal-fired and gas-fired power generation, the XP316 handles boiler drum level control, turbine speed feedback, and flue gas monitoring — applications where a single I/O module failure can trigger a unit trip and cost hundreds of thousands of dollars in lost generation. Operators value the XP316’s hot-swap capability within the XP Series rack, which allows field replacement without shutting down adjacent channels or interrupting the control loop.

In municipal and industrial water treatment, the XP316 monitors dissolved oxygen sensors, pH transmitters, and pump motor status across multiple treatment stages. The module’s resistance to high-humidity environments — common in pump houses and aeration basins — ensures reliable signal transmission even when ambient relative humidity approaches saturation.

In mining and mineral processing, where vibration from crushers, conveyors, and ball mills is constant, the XP316’s mechanically robust backplane connector and vibration-rated PCB mounting maintain electrical continuity under shock loads that would loosen connections in standard rack-mount hardware.

In metallurgical and steel mill automation, the XP316 interfaces with pyrometers, load cells, and position encoders in rolling mill and continuous casting lines, where electromagnetic noise from large DC drives and arc furnaces demands the highest levels of signal isolation and EMC immunity.
