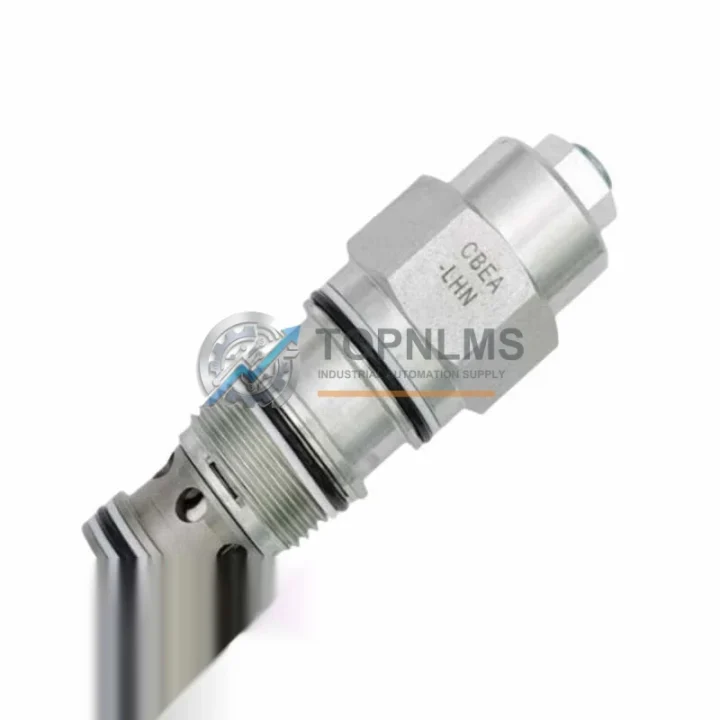

SUN Hydraulics CBEA-LHN-XAW/S Ruggedized Counterbalance Module

Product Overview

SUN Hydraulics CBEA-LHN-XAW/S Ruggedized Counterbalance Module for Harsh Environments

In demanding industrial environments where hydraulic systems must perform without compromise, the SUN Hydraulics CBEA-LHN-XAW/S non-relieving counterbalance cartridge valve stands as a critical line of defense against load drift, pressure surges, and uncontrolled actuator movement. Engineered within SUN Hydraulics’ proven CBEA Series platform, this cartridge valve is purpose-built for continuous-duty applications where system stability, safety, and long service life are non-negotiable.

Whether deployed in mobile hydraulic machinery, heavy industrial presses, offshore lifting equipment, or process-critical actuator circuits, the CBEA-LHN-XAW/S delivers consistent, repeatable load-holding performance even under extreme thermal cycling, vibration, and contaminated fluid conditions. Its compact cartridge form factor integrates directly into standard cavity manifolds, minimizing external plumbing and reducing potential leak points — a key advantage in environments where hydraulic fluid contamination or fire risk is a concern.

Rugged Specifications Table

Comprehensive Protection Solutions

The CBEA-LHN-XAW/S does not operate in isolation — it is one component within a broader hydraulic safety and control architecture. In high-risk industrial environments such as steel mills, mining operations, and offshore platforms, maintaining system integrity requires a coordinated approach across multiple valve and control elements.

When inspecting or replacing the CBEA-LHN-XAW/S, maintenance engineers should simultaneously evaluate the condition of companion components within the same hydraulic circuit. The SUN Hydraulics CBDB Series pilot-operated check valves are frequently installed in parallel load-holding circuits and should be inspected for seat wear and internal leakage. Upstream pressure control is typically managed by SUN RPEC or RPGC Series relief valves, which regulate system pressure and protect the counterbalance circuit from overpressure events — these should be bench-tested during any scheduled maintenance window.

Flow control and directional switching in the same actuator circuit often relies on SUN DFEC or DFPC Series solenoid-operated directional valves. Coil insulation and spool centering should be verified, particularly in high-vibration environments. The hydraulic manifold block itself — typically a custom or standard SUN porting manifold — should be inspected for micro-cracks, port thread integrity, and O-ring groove condition, as manifold failures can cascade into multiple valve failures simultaneously.

On the power unit side, the SUN FDCA Series pressure-compensated flow control valves regulate actuator speed and should be calibrated in conjunction with counterbalance valve set pressure adjustments. Hydraulic power unit components including gear pumps, variable-displacement piston pumps, and inline pressure filters (typically 10-micron absolute or finer) are critical to maintaining the clean fluid environment that cartridge valves like the CBEA-LHN-XAW/S require for long service life.

In PLC-controlled hydraulic systems, the interface between the hydraulic circuit and the control layer — including proportional valve amplifier cards, pressure transducers, and position feedback sensors — must also be verified. A faulty pressure transducer providing incorrect feedback to the PLC can cause the control system to command unsafe actuator movements that the counterbalance valve must then arrest, accelerating valve wear. Ensuring the integrity of the full control loop, from the PLC output card through the solenoid driver to the directional valve and counterbalance circuit, is essential for safe and reliable operation.

Application in Critical Infrastructure

The CBEA-LHN-XAW/S is deployed across a wide range of critical infrastructure sectors where hydraulic actuator safety is paramount. In oil and gas applications, it provides load-holding security for wellhead control systems, blowout preventer (BOP) actuators, and subsea valve operators where uncontrolled movement could result in catastrophic consequences. The valve’s compatibility with fire-resistant hydraulic fluids makes it suitable for offshore platform environments where petroleum-based fluids are prohibited.

In mining and mineral processing, the CBEA-LHN-XAW/S is used in roof support systems, longwall shearer hydraulics, and ore crusher actuators. These applications subject the valve to continuous high-cycle loading, abrasive contamination, and extreme temperature swings — conditions the CBEA Series is specifically designed to withstand. Maintenance teams in these environments typically maintain on-site spare valve inventories to enable rapid cartridge replacement during planned maintenance shutdowns, minimizing production downtime.

In power generation and water treatment facilities, the valve controls actuators on turbine bypass systems, dam gate operators, and large-bore control valves. The non-relieving characteristic of the CBEA-LHN-XAW/S is particularly valuable in these applications, as it prevents unintended load release while still allowing controlled pilot-operated movement under command. Steel and metals processing plants rely on the valve in rolling mill hydraulics, ladle tilting systems, and continuous caster segment drives — all of which demand zero-tolerance load holding under multi-ton loads.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the CBEA-LHN-XAW/S?
All CBEA-LHN-XAW/S units supplied by TOPNLMS carry a 12-month warranty from the date of shipment, covering manufacturing defects in materials and workmanship. Each unit undergoes pre-shipment functional testing including pressure setting verification, internal leakage check, and pilot ratio confirmation. Warranty claims are supported with full documentation and replacement dispatch within agreed lead times.

Q2: How is compatibility with my existing hydraulic manifold verified?
The CBEA-LHN-XAW/S is designed for the SUN Hydraulics T-11A standard cartridge cavity. Compatibility is confirmed by verifying the cavity designation on your manifold drawing or existing cartridge body markings. If you provide your manifold part number or application details, our technical team can confirm fitment before shipment. We recommend replacing the cavity O-rings and backup rings simultaneously with the cartridge for a complete, leak-free installation.

Q3: Can the CBEA-LHN-XAW/S replace older or discontinued SUN Hydraulics counterbalance models?
Yes. The CBEA Series has maintained consistent cavity and performance specifications across multiple product generations. The CBEA-LHN-XAW/S is a direct replacement for earlier CBEA-LHN variants in the same cavity, provided the set pressure range and pilot ratio requirements are matched. Our team can assist with cross-referencing legacy part numbers to confirm suitability for your specific application.

Q4: What is the typical lead time and shipping arrangement?
In-stock units are dispatched within 1–3 business days from our Xiamen warehouse. International shipments are handled via DHL Express, FedEx International Priority, or sea freight for bulk orders, with full export documentation including commercial invoice, packing list, and certificate of origin. For urgent maintenance requirements, expedited shipping options are available. Contact our team to confirm current stock availability and lead time for your order quantity.
