STOCK D21232-1 Replacement/Upgrade Solution for D21231

Product Overview

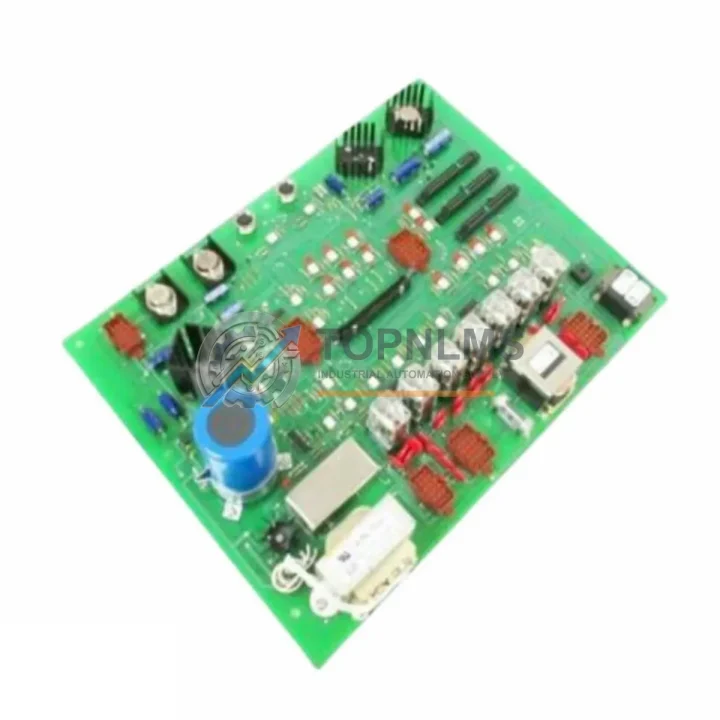

STOCK D21232-1 Replacement/Upgrade Solution for D21231: Seamless Transition from Legacy Control Systems

When your STOCK D21232-1 (also cross-referenced as A21125-B or D21231) control circuit board reaches end-of-life or fails unexpectedly, every hour of unplanned downtime translates directly into production loss. TOPNLMS supplies verified replacement and upgrade units for the STOCK D21232-1 / A21125-B / D21231 control board, sourced and pre-tested to ensure your migration from legacy STOCK-series PLC and DCS control architectures is as smooth and risk-free as possible. Whether you are executing a planned retrofit, responding to an emergency failure, or consolidating spare-parts inventory ahead of a scheduled maintenance window, this board is stocked and ready to ship from our Xiamen facility.

The D21232-1 is a core control circuit board used across multiple generations of STOCK industrial automation platforms. It interfaces directly with the system backplane, communicates over the proprietary STOCK serial bus, and manages I/O signal conditioning for connected field devices. Its cross-reference numbers — A21125-B and D21231 — reflect regional part-numbering variants and minor hardware revisions that are functionally interchangeable in most installation scenarios. Our engineering team has verified compatibility across the primary revision levels, and each unit ships with a full inspection report.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a D21231-based system to the D21232-1 / A21125-B rarely involves the control board alone. In practice, engineers replacing this board as part of a broader STOCK platform retrofit will also evaluate the condition and compatibility of adjacent components. The STOCK system backplane or rack chassis that houses the D21232-1 should be inspected for corrosion or connector wear — a degraded backplane connector is a common root cause of board failures that appear to be board-level faults. Similarly, the STOCK power supply module feeding the rack must be verified to deliver stable 24 VDC within tolerance; an aging or undersized power supply module can cause intermittent resets even after a board replacement.

On the I/O side, the analog input modules and digital output modules connected to the D21232-1 via the STOCK I/O bus should be tested for signal integrity before the new board is commissioned. If the existing I/O modules are from the same discontinued generation as the D21231, it is operationally prudent to source replacement I/O modules from the same STOCK series to maintain protocol and addressing compatibility. Terminal blocks and field wiring connected to those I/O modules typically do not require changes, as the wiring interface is defined at the I/O module level rather than the control board level.

For sites where the STOCK system communicates upstream to a SCADA or DCS host via Modbus RTU or a proprietary STOCK communication protocol, the communication module installed in the rack must be verified for compatibility with the D21232-1 firmware revision. In most cases the existing STOCK communication module remains fully functional after the board swap, but firmware version alignment should be confirmed during commissioning. If the communication module is also end-of-life, TOPNLMS can supply compatible STOCK-series communication modules to complete the upgrade in a single procurement cycle.

Sites running HMI panels connected to the STOCK controller should verify that the HMI driver version supports the D21232-1 register map. Most STOCK-compatible HMI panels — including those from common third-party HMI suppliers integrated into STOCK control cabinets — use standard Modbus or STOCK proprietary addressing that is preserved across the D21231-to-D21232-1 transition. Programming cables used to connect a laptop or engineering workstation to the STOCK controller for program upload and parameter configuration are also unchanged; the standard STOCK programming cable and software toolchain remain compatible.

For larger retrofit projects involving multiple racks or control cabinets, signal isolators and surge protection modules installed between field devices and the STOCK I/O bus should be reviewed as part of the upgrade scope. These components protect the control board from field-side transients and are often overlooked during emergency replacements, only to cause premature failure of the new board. TOPNLMS recommends a full cabinet audit when replacing a D21232-1 / D21231 board in a system that has been in continuous service for more than five years.

Retrofit Guidance FAQ

Q: Do I need to rewire the cabinet when replacing D21231 with D21232-1?
No. The D21232-1 / A21125-B uses the same backplane connector and physical slot dimensions as the D21231. Field wiring connects at the I/O module level and is not affected by the control board replacement.

Q: Can I reload my existing PLC program onto the D21232-1?
Yes. The D21232-1 is compatible with the STOCK programming toolchain used for the D21231. Your existing program, parameter tables, and configuration files can be uploaded directly without modification in the majority of installations. Minor firmware version differences may require a toolchain update, which TOPNLMS can advise on.

Q: Is the communication protocol preserved after the board swap?
Yes. The D21232-1 supports the same STOCK serial bus and RS-485 communication protocol as the D21231. SCADA, DCS, and HMI connections do not require reconfiguration in standard installations.

Q: Will the D21232-1 fit in my existing control cabinet without physical modification?
Yes. The board dimensions and rack-mount form factor are identical to the D21231. No cabinet modification, additional mounting hardware, or panel cutout changes are required.

Q: How do I handle spare-parts inventory for a system that uses both D21231 and D21232-1 boards?
Because the D21232-1 / A21125-B is a direct functional replacement for the D21231, a single spare-parts SKU covers both variants. TOPNLMS recommends maintaining at least one spare unit on-site for critical control loops to eliminate lead-time risk during unplanned failures.

Q: What if my system uses a mix of STOCK and third-party I/O modules?
The D21232-1 manages the STOCK backplane bus. Third-party I/O modules connected via standard Modbus RTU or analog signal wiring are not affected by the board replacement. Modules integrated via the STOCK proprietary I/O bus should be verified for firmware compatibility.

Warranty Assurance

Every STOCK D21232-1 / A21125-B / D21231 replacement board supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point functional inspection covering power-on self-test, backplane connector integrity, communication interface verification, and I/O signal conditioning checks. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the fault assessment. Our after-sales response target is 24 hours for initial fault diagnosis support and 72 hours for replacement dispatch on confirmed warranty cases. Customers are not required to return the faulty unit before a replacement is dispatched for critical production applications — contact our team to arrange advance replacement under warranty.

All units ship from our Xiamen warehouse with full export documentation, commercial invoice, and packing list. Standard lead time for in-stock units is 3–7 business days to most international destinations. Express shipping options are available for emergency procurement. TOPNLMS has supplied STOCK-series control components to industrial customers across manufacturing, energy, water treatment, and process automation sectors since establishment, and our procurement team can assist with cross-referencing, compatibility verification, and multi-unit project sourcing.

For volume orders, project-based procurement, or technical pre-sales consultation, contact our team directly.
