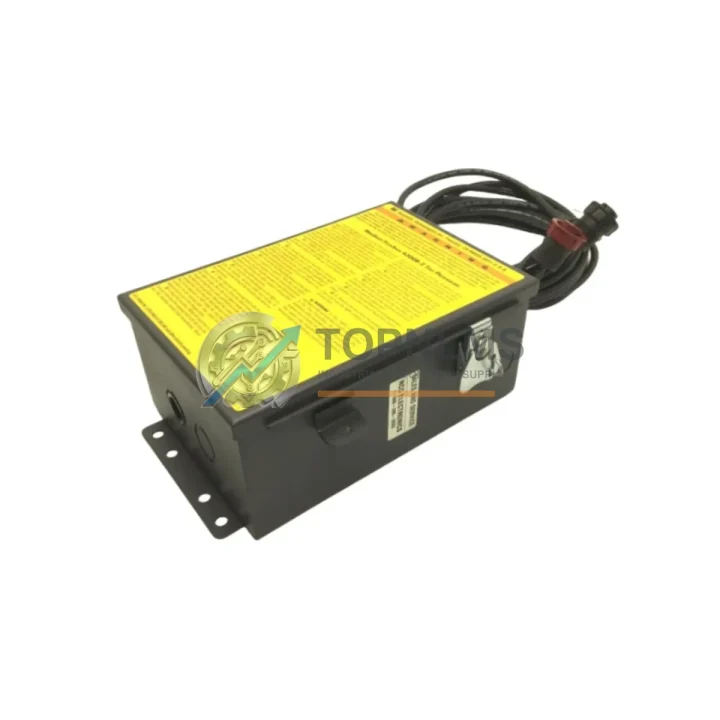

STI 4300B-2 Ruggedized Safety Light Curtain Controller Kit

Product Overview

STI 4300B-2 Ruggedized Safety Light Curtain Controller Kit: Industrial Resilience for Harsh Environments

The STI 4300B-2 MiniSafe Safety Light Curtain Controller Kit — comprising the MS4328BR receiver, MS4328B2-AC1-00X-00R-U transmitter/receiver assembly, BA ASB 2.0 blanking module, and associated mounting hardware (P/N 503-00038, 150-00038-102, 350-00010-001) — is engineered for continuous, fail-safe operation in the most demanding industrial environments. Designed to IEC 61496 Type 4 safety standards, this controller kit delivers reliable personnel and machine protection across high-temperature, high-humidity, dusty, vibration-prone, and electromagnetically noisy production floors where safety system uptime is non-negotiable.

As a complete kit, the 4300B-2 integrates seamlessly into safety-rated control architectures, providing dual-channel safety outputs, automatic restart inhibit, and configurable blanking via the BA ASB 2.0 module — enabling operators to define protected zones with precision while maintaining production throughput. Its compact MiniSafe 4300 Series housing is rated for industrial enclosure mounting, tolerating ambient temperatures from 0°C to +55°C and relative humidity up to 95% non-condensing, making it equally at home in a sealed control cabinet on a steel mill floor or in an outdoor petrochemical processing unit.

Rugged Specifications Table

Comprehensive Protection Solutions

The STI 4300B-2 controller kit does not operate in isolation — it is the safety nerve center of a broader machine guarding and control architecture. In a typical automated press or robotic welding cell, the 4300B-2 interfaces directly with a GuardLogix 5580 safety PLC via hardwired dual-channel OSSD inputs, ensuring that any light curtain interruption triggers an immediate, category-4 safe stop of the servo drives and pneumatic actuators. The controller’s outputs are wired through a Pilz PNOZ m B0 safety relay module or an equivalent safety relay, providing redundant monitoring of the OSSD signal integrity before it reaches the machine’s main contactor circuit.

Within the control cabinet, the 4300B-2 shares DIN rail space with Phoenix Contact QUINT-PS/1AC/24DC/10 industrial power supplies, which deliver the stable 24 VDC required for reliable OSSD switching — voltage fluctuations below ±15% are critical to preventing nuisance trips in high-load environments. Adjacent to the power supply, Weidmüller WDU 2.5 terminal blocks provide the field wiring termination points for the MS4328BR receiver and MS4328B2-AC1-00X-00R-U transmitter cables, keeping the safety loop wiring segregated from standard I/O circuits to minimize EMI coupling.

For facilities running Siemens ET 200SP distributed I/O or Beckhoff EL1904 TwinSAFE input terminals, the 4300B-2’s OSSD outputs can be mapped into the safety bus via appropriate safety input modules, enabling centralized safety diagnostics through the plant’s DCS or SCADA layer. In conveyor and material handling applications, the controller kit is frequently paired with Sick S3000 safety laser scanners and Omron F3SG-R safety light curtains to create overlapping protective fields — the 4300B-2 handling the primary access point while the laser scanner monitors the perimeter zone.

Communication-intensive installations benefit from integrating the safety status of the 4300B-2 into Profibus DP or EtherNet/IP safety networks via gateway modules such as the Anybus X-gateway AB7831, allowing the safety PLC to log curtain interruption events, response times, and OSSD cycle counts for predictive maintenance analysis. This data feeds into the plant’s Rockwell FactoryTalk View SE SCADA or Siemens WinCC historian, supporting IEC 62443 cybersecurity-compliant safety data management.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the STI 4300B-2 is deployed at compressor station access points and wellhead control panels where personnel must enter hazardous zones during maintenance windows. The controller’s Type 4 safety rating satisfies the requirements of IEC 61511 functional safety management for SIL 2 applications, and its immunity to the high-frequency electromagnetic interference generated by variable frequency drives controlling pump motors ensures zero nuisance trips during normal operations.

In underground and open-cut mining operations, the 4300B-2 protects conveyor transfer points and crusher feed zones where dust concentrations, vibration from blasting, and temperature swings between day and night shifts would compromise lesser safety systems. The MiniSafe 4300 Series optics maintain alignment stability under continuous vibration, and the BA ASB 2.0 blanking module allows the system to ignore the predictable passage of ore-laden conveyor belts while remaining fully sensitive to human intrusion.

In power generation plants — including coal, gas turbine, and hydroelectric facilities — the 4300B-2 is installed at turbine hall access gates and transformer bay entry points. Its dual-channel architecture satisfies the redundancy requirements of IEC 61508 SIL 2 safety instrumented systems, and its 20 ms response time is well within the safe distance calculation requirements of ISO 13855 for personnel protection at machine speeds up to 2 m/s.

In water and wastewater treatment plants, the controller protects pump room access and chemical dosing station entry points, where the combination of high humidity, chemical vapors, and continuous 24/7 operation demands a safety system with proven long-term reliability. The 4300B-2’s solid-state OSSD outputs eliminate the contact wear associated with electromechanical safety relays, reducing maintenance intervals and supporting the plant’s goal of zero unplanned safety system downtime.

In metallurgical and steel production environments, where radiant heat from furnaces, airborne metal particulates, and high-current bus bars create extreme EMI conditions, the 4300B-2’s EN 61000-4 series immunity ratings ensure that safety outputs remain stable and do not generate spurious trips that would halt production lines valued at tens of thousands of dollars per hour of downtime.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the STI 4300B-2 kit?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If any component of the kit — including the MS4328BR receiver, MS4328B2-AC1-00X-00R-U assembly, or BA ASB 2.0 blanking module — fails due to a verified manufacturing defect within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. The warranty does not cover damage resulting from incorrect installation, overvoltage, or physical impact. Contact [email protected] to initiate a warranty claim.

Q2: How is the STI 4300B-2 kit tested before shipment?
Every unit undergoes a pre-shipment functional verification protocol: power-on self-test (POST) confirmation, OSSD output switching verification under simulated beam interruption, blanking module configuration check, and visual inspection of all connectors, cables, and mounting hardware. Units sourced as surplus new are additionally inspected for storage condition integrity. A test report is available upon request for customers requiring documented incoming inspection records.

Q3: Is the STI 4300B-2 compatible with my existing safety PLC or safety relay?
Yes. The 4300B-2’s dual-channel PNP OSSD outputs are compatible with all major safety PLC input modules and safety relay monitoring inputs, including Allen-Bradley GuardLogix, Siemens S7-300F/400F/1500F, Pilz PNOZ, Omron NX-SL, and Sick Flexi Soft. The 24 VDC supply requirement is standard across all modern safety control architectures. If you require confirmation of compatibility with a specific safety controller model, contact our technical team with your system architecture details.

Q4: Can TOPNLMS support long-term supply and replacement needs for the STI 4300B-2?
Yes. TOPNLMS maintains stock of MiniSafe 4300 Series components and associated accessories to support both immediate replacement needs and planned maintenance programs. For facilities managing aging safety systems where OEM supply has been discontinued or lead times are extended, we offer sourcing support for equivalent and compatible replacement units. Bulk pricing and reserved stock agreements are available for customers with multi-site or high-volume requirements. Contact [email protected] or call +86 18359293191 to discuss your supply continuity requirements.
