SST SST-PB3-VME-1-E Replacement for PB3 VME Series

Product Overview

SST SST-PB3-VME-1-E Replacement for PB3 VME Series: Smooth Transition & Legacy System Compatibility

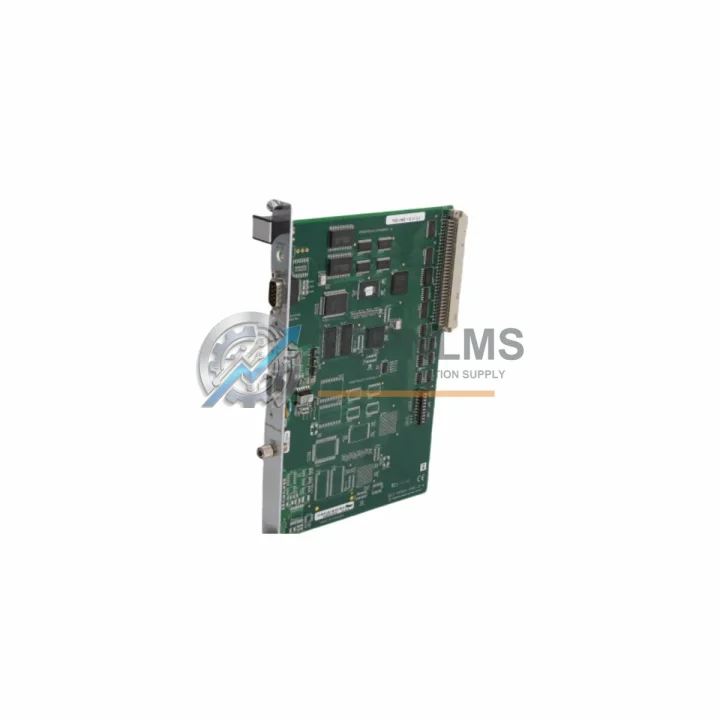

The SST-PB3-VME-1-E is a VME-bus PROFIBUS DP Master/Slave communication board manufactured by SST (Woodhead/Molex SST). It is widely deployed in legacy DCS and PLC control architectures where PROFIBUS DP fieldbus communication is required between a VME-based controller backplane and field devices such as remote I/O stations, variable frequency drives, servo drives, and intelligent field instruments. As the PB3 Series approaches end-of-life and spare inventory becomes increasingly scarce, many plant engineers and procurement teams are actively seeking verified replacement units or a structured upgrade path that preserves existing wiring infrastructure, communication topology, and control logic.

TOPNLMS maintains ready stock of the SST-PB3-VME-1-E and provides full pre-shipment functional testing to ensure every board meets original SST factory specifications before dispatch. Whether you need a direct like-for-like swap to restore a failed node or are planning a phased migration away from your VME-based control platform, our team can support both scenarios with technical documentation and sourcing assistance.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration involving the SST-PB3-VME-1-E rarely involves the communication board alone. In most VME-based control cabinets, the board operates alongside a VME controller CPU module that manages scan cycles and data exchange with the PROFIBUS DP network. When replacing the PB3 board, engineers should simultaneously verify the condition of the VME backplane and its power distribution rails, since aged backplanes can introduce intermittent bus errors that are easily misdiagnosed as communication board failures.

On the PROFIBUS DP network side, field devices connected to the SST-PB3-VME-1-E typically include remote I/O modules such as Siemens ET 200M or ET 200S distributed I/O stations, which communicate via standard DP protocol and require no re-wiring when the master board is replaced with a compatible unit. Similarly, PROFIBUS DP-capable variable frequency drives — for example, units from the Siemens MICROMASTER or SINAMICS G120 families — retain their existing DB9 trunk cable connections and DP slave addresses without modification.

For installations where the VME rack also houses analog or digital I/O boards communicating over the VME backplane rather than PROFIBUS, those boards are unaffected by the PB3 replacement and continue operating normally. However, if the migration scope extends to retiring the VME platform entirely, a PROFIBUS DP-to-EtherNet/IP or PROFIBUS DP-to-PROFINET gateway module can bridge legacy field devices into a modern controller architecture — allowing the existing PROFIBUS wiring infrastructure and all connected slave devices to remain in service during a phased cutover.

Programming cable compatibility is another practical consideration. The SST Configuration Utility used to configure the PB3 board communicates via a standard USB-to-serial or RS-232 programming cable. If the host PC running the configuration software has been upgraded and no longer has a native COM port, a USB-to-RS232 adapter with verified driver support for the operating system in use is required before attempting firmware updates or GSD-based configuration uploads.

In control cabinets where DIN-rail terminal blocks are used to break out PROFIBUS DP signals from the DB9 connector to field cable pairs, the existing terminal block wiring — including the bus termination resistor network at the first and last node — remains fully compatible with the SST-PB3-VME-1-E. No re-termination is required provided the cable shield grounding and bus termination were correctly implemented in the original installation.

For sites managing a broader SST PB3 Series inventory, related models such as the SST-PB3-PCI-1 (PCI bus variant) and SST-PB3-ISA-1 (ISA bus variant) serve equivalent PROFIBUS DP master/slave functions in different host bus architectures. Procurement teams consolidating spare parts across multiple machine types or control rooms can source these variants alongside the VME version to standardize on a single SST configuration toolchain and GSD file library.

Retrofit Guidance FAQ

Q: Can I replace the SST-PB3-VME-1-E without modifying the PROFIBUS field wiring?
A: Yes. The replacement board uses the same DB9 female connector and is electrically compatible with standard PROFIBUS DP cable (Type A, shielded twisted pair). No field wiring changes are required. Simply re-seat the board in the same VME slot, restore the DP slave address configuration, and verify bus termination at both ends of the segment.

Q: Do I need to update the PLC or DCS program after replacing the board?
A: In most cases, no. If the replacement board is configured with the same DP master address and the same GSD-based I/O mapping as the original, the host controller program does not require modification. Re-import the GSD file into the SST Configuration Utility, verify the slave address table, and perform a cold restart of the VME system.

Q: Is the SST-PB3-VME-1-E compatible with PROFIBUS PA devices?
A: The PB3-VME-1-E supports PROFIBUS DP only. PROFIBUS PA devices require a DP/PA coupler or link module inserted between the DP segment and the PA trunk. The board itself does not natively support PA signaling.

Q: What is the physical installation clearance requirement in the VME rack?
A: The board occupies a single 6U VME slot. No additional adjacent slot clearance is required. Ensure the VME backplane P1 connector is clean and free of oxidation before insertion to guarantee reliable bus communication.

Q: Can the board operate as a PROFIBUS DP Slave instead of Master?
A: Yes. The SST-PB3-VME-1-E supports both Master (Class 1 DPM1) and Slave operating modes, configurable via the SST Configuration Utility. This makes it suitable for applications where the VME system must respond to a higher-level PROFIBUS master controller.

Warranty Assurance

Every SST-PB3-VME-1-E unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes a pre-shipment functional test that verifies VME bus communication, PROFIBUS DP initialization, and firmware integrity. Units that do not pass the full test sequence are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund depending on the nature of the fault and the elapsed warranty period. Our after-sales response target is within 24 business hours of a reported issue. Replacement units are dispatched from our Xiamen warehouse with priority shipping to minimize control system downtime.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice at the time of shipment. Bulk orders and standing purchase agreements for critical spare parts are supported — contact our sales team to discuss lead times, pricing, and consignment stocking arrangements.
