SST SST-ESR2-CPX-P Ruggedized Gateway Module for Harsh Environments

Product Overview

SST SST-ESR2-CPX-P Ruggedized Gateway Module for Harsh Environments

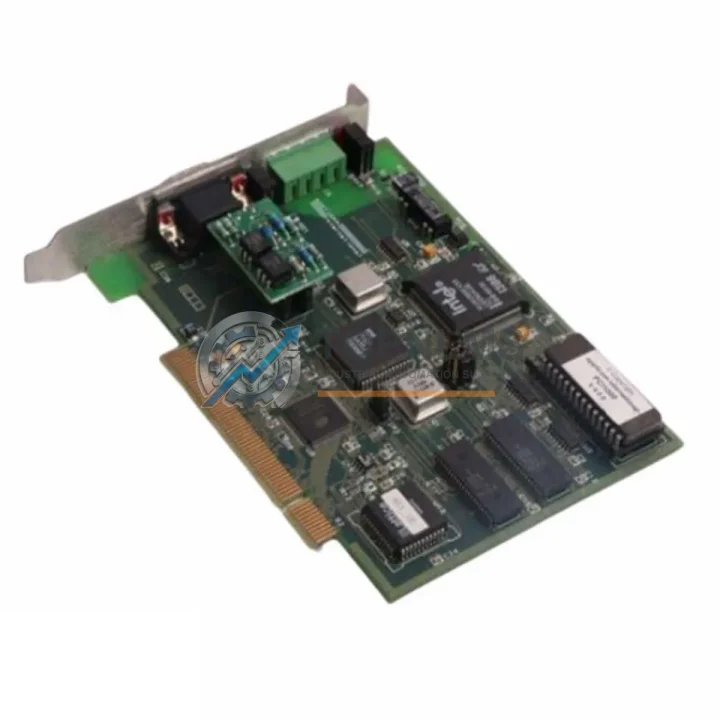

The SST SST-ESR2-CPX-P is a high-performance, ruggedized industrial communication gateway engineered to bridge ControlNet and PROFIBUS-DP networks in the most demanding automation environments. Designed as part of SST’s proven ESR2 Series, this module delivers deterministic, low-latency data exchange between heterogeneous fieldbus architectures — making it an indispensable component in continuous production lines, heavy industrial facilities, and safety-critical infrastructure where network integrity cannot be compromised.

Built to withstand high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and electromagnetic interference (EMI), the SST-ESR2-CPX-P maintains stable communication throughput where lesser modules fail. Its compact, DIN-rail-compatible form factor integrates seamlessly into standard control cabinets alongside PLCs, DCS controllers, I/O racks, and power distribution equipment — eliminating the need for costly protocol converters or custom middleware.

Rugged Specifications Table

Comprehensive Protection Solutions

The SST-ESR2-CPX-P is rarely deployed in isolation. In a typical heavy-industry control cabinet, it operates alongside a range of complementary automation components that together form a resilient, layered control architecture. On the ControlNet side, it interfaces directly with Allen-Bradley 1756-CNB ControlNet Bridge Modules and 1756-CNBR redundant bridge modules within ControlLogix chassis, ensuring high-availability network topologies for continuous process lines. On the PROFIBUS-DP side, the gateway communicates with Siemens IM 153-2 interface modules and ET 200M distributed I/O stations, enabling seamless integration of legacy PROFIBUS field devices into modern ControlNet-based supervisory systems.

For power integrity in harsh environments, the SST-ESR2-CPX-P is typically paired with Phoenix Contact QUINT-PS industrial power supplies or equivalent 24 VDC DIN-rail power units that provide regulated, noise-filtered output — critical for maintaining stable gateway operation in facilities with heavy motor loads and frequent switching transients. Surge protection devices such as Phoenix Contact TRABTECH VAL-MS surge arresters are recommended upstream to guard against voltage spikes induced by nearby variable frequency drives (VFDs) or large contactors.

In multi-network architectures, the gateway works in concert with SST-PB3-CLX PROFIBUS-DP scanner cards and SST-DN3-CLX DeviceNet scanner modules within the same ControlLogix chassis, allowing a single PLC backplane to manage multiple fieldbus segments simultaneously. Safety-rated I/O modules such as Allen-Bradley 1791DS-IB8XOBV4 Guard I/O modules can be connected downstream on the PROFIBUS-DP segment, enabling the gateway to participate in safety-instrumented system (SIS) architectures without requiring a separate safety PLC backplane. Communication integrity is further reinforced by Belden 3079A ControlNet coaxial cable and Siemens 6XV1830-0EH10 PROFIBUS cable, both rated for industrial flex-cycle and high-EMI environments.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the SST-ESR2-CPX-P enables real-time data exchange between ControlNet-based supervisory controllers and PROFIBUS-DP field instruments — including pressure transmitters, flow meters, and emergency shutdown (ESD) valve actuators — without introducing latency that could compromise process safety. Offshore platforms and onshore compressor stations benefit from the module’s wide operating temperature range and vibration tolerance, which allow it to function reliably in environments subject to constant mechanical stress and salt-laden air.

In mining and mineral processing, where conveyor systems, crushers, and ball mills generate intense electrical noise and mechanical shock, the gateway’s EMI hardening and robust housing ensure uninterrupted communication between the plant-wide ControlNet backbone and PROFIBUS-DP-connected motor starters, soft starters, and weighing systems. Downtime in these environments carries enormous financial penalties, making the SST-ESR2-CPX-P’s reliability and the availability of qualified spare units a critical procurement consideration.

In power generation and grid substations, the module bridges ControlNet-based DCS platforms with PROFIBUS-DP-connected protection relays, excitation controllers, and turbine governor systems. Its deterministic scan cycle ensures that control commands and status feedback are exchanged within the timing windows required by IEC 61511 functional safety standards. Water treatment and wastewater facilities similarly rely on this gateway to connect SCADA systems with distributed PROFIBUS-DP field devices across geographically dispersed pump stations and chemical dosing skids.

In metallurgy and steel production, where arc furnaces, rolling mills, and continuous casting lines demand absolute communication reliability, the SST-ESR2-CPX-P provides the protocol translation layer that keeps ControlNet supervisory systems synchronized with PROFIBUS-DP-connected drives, position encoders, and pyrometers — even in the presence of extreme radiated EMI from high-current bus bars and induction heating equipment.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every SST-ESR2-CPX-P unit shipped by TOPNLMS is covered by a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. All warranty claims are processed through our dedicated after-sales team at [email protected].

Q2: How is each unit tested before shipment?
All SST-ESR2-CPX-P modules undergo pre-shipment functional verification, including power-on self-test, network port continuity checks, and firmware version confirmation. Units sourced from authorized distribution channels are inspected for physical integrity, label authenticity, and firmware consistency before dispatch. A test report is available upon request for critical infrastructure procurement.

Q3: Is the SST-ESR2-CPX-P compatible with my existing ControlLogix or Siemens S7 system?
Yes. The SST-ESR2-CPX-P is designed to operate as a ControlNet adapter/scanner on the ControlNet side and as a PROFIBUS-DP master or slave on the PROFIBUS side, making it compatible with Allen-Bradley ControlLogix and CompactLogix platforms running RSLogix 5000 / Studio 5000, as well as Siemens S7-300, S7-400, and S7-1500 systems configured as PROFIBUS-DP masters. Configuration is performed via SST’s Network Configuration Tool (NCT) software.

Q4: Can TOPNLMS guarantee long-term supply and replacement support for this module?
Yes. TOPNLMS maintains dedicated inventory of ESR2 Series SST gateway modules to support both new installations and ongoing maintenance programs. For facilities operating continuous production lines where unplanned downtime is unacceptable, we recommend holding at least one spare unit on-site. Our team can advise on stocking strategies and provide volume pricing for spare parts programs. Contact us at +86 18359293191 or [email protected] for long-term supply agreements.
