SST SST-PFB-SLC Replacement for SLC 500 PROFIBUS-DP: Smooth Migration from Legacy Systems

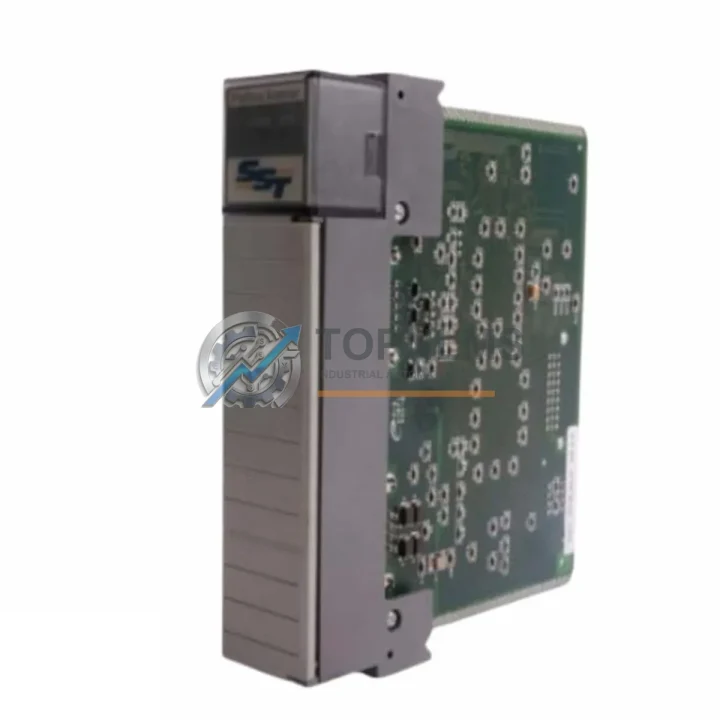

The SST-PFB-SLC is a PROFIBUS-DP scanner module engineered specifically for the Allen-Bradley SLC 500 programmable controller platform. As industrial facilities face the end-of-life reality of legacy PROFIBUS networks and aging SLC 500 I/O architectures, the SST-PFB-SLC provides a proven, field-validated path to modernize communication infrastructure without requiring a full controller replacement or costly re-engineering of existing ladder logic programs.

Whether you are migrating from an older SST-PFB-SLC-1 revision, replacing a failed third-party PROFIBUS master card, or consolidating a distributed I/O network that previously relied on proprietary gateways, the SST-PFB-SLC slots directly into the SLC 500 chassis — including the SLC 5/03, SLC 5/04, and SLC 5/05 processors — and communicates via the standard SLC backplane without firmware modification.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PROFIBUS-DP migration around the SST-PFB-SLC rarely involves the scanner module alone. In practice, field engineers replacing a failed or obsolete PROFIBUS master must also evaluate the surrounding system architecture to ensure a complete, low-downtime cutover.

On the controller side, the SLC 5/05 processor module is frequently upgraded in tandem — particularly when the existing CPU lacks sufficient memory to handle expanded I/O mapping tables generated by a larger PROFIBUS slave network. The SLC 500 chassis and 1746-A4 or 1746-A7 rack should be inspected for slot availability before installation, as the SST-PFB-SLC occupies one standard I/O slot.

Power integrity is critical in any retrofit. The 1746-P4 power supply module provides 10A at 5 VDC and is the recommended companion for chassis configurations that include multiple communication modules alongside standard digital and analog I/O cards. If the existing power supply is already loaded near capacity, adding the SST-PFB-SLC without upgrading the PSU can cause intermittent backplane faults.

On the PROFIBUS network side, field devices such as Siemens ET 200S distributed I/O stations or Phoenix Contact Inline I/O modules connected as DP slaves will continue to operate without reconfiguration, provided the GSD files are correctly imported into the SST Configuration Utility and the slave address assignments are preserved from the legacy master. Engineers migrating from a standalone PROFIBUS master gateway — such as an older Hilscher CIF 50-PB card — will find that the SST-PFB-SLC’s explicit M-file data mapping in RSLogix 500 offers a more integrated and auditable configuration approach.

For installations where the PROFIBUS segment spans long cable runs or noisy industrial environments, adding a PROFIBUS repeater or optical link module (OLM) between the SST-PFB-SLC and remote slave clusters is strongly recommended to maintain signal integrity at 1.5 Mbps or higher baud rates. Termination resistors at both ends of the PROFIBUS trunk — typically integrated into the DB9 connector plug — must be verified and enabled during commissioning.

Where the control cabinet also houses an Allen-Bradley PanelView HMI communicating via DH-485 or Ethernet/IP to the SLC 5/05, no changes to the HMI program are required as a result of the PROFIBUS scanner upgrade, since the SST-PFB-SLC operates transparently through the SLC backplane data table. Similarly, any 1747-SDN DeviceNet scanner co-installed in the same chassis continues to function independently.

For sites planning a longer-term migration toward a ControlLogix or CompactLogix platform, the SST-PFB-SLC serves as a cost-effective bridge solution — maintaining PROFIBUS connectivity on the SLC 500 while the broader system re-architecture is planned and budgeted, avoiding the need for an immediate full cutover.

Retrofit Guidance FAQ

Q: Can I replace my existing SST-PFB-SLC without modifying my RSLogix 500 program?
A: Yes. If you are replacing a unit of the same model revision, the M-file configuration and ladder logic data table mappings are preserved. If upgrading from an older firmware revision, re-importing the GSD files and re-downloading the SST configuration is recommended but the ladder logic itself does not require changes.

Q: Is the wiring to the PROFIBUS trunk compatible?
A: Yes. The SST-PFB-SLC uses a standard DB9 female PROFIBUS connector. Existing field cables, termination plugs, and trunk wiring are fully reusable. No rewiring of the PROFIBUS segment is required.

Q: What baud rates are supported, and will my existing slave devices work?
A: The SST-PFB-SLC supports all standard PROFIBUS-DP baud rates from 9.6 kbps up to 12 Mbps. Existing DP-V0 and DP-V1 slave devices will continue to operate at their configured baud rate without modification.

Q: Does the module fit in all SLC 500 chassis sizes?
A: Yes. The SST-PFB-SLC is a standard single-slot SLC 500 module and is physically compatible with all SLC 500 chassis variants, including the 4-slot 1746-A4, 7-slot 1746-A7, 10-slot 1746-A10, and 13-slot 1746-A13.

Q: What programming software is required for configuration?
A: The SST Configuration Utility (supplied with the module or downloadable from the SST/Molex support portal) is used to configure the PROFIBUS master parameters and import GSD files. RSLogix 500 is used for ladder logic and M-file data table integration. No additional software licenses are required.

Q: Can this module replace a third-party PROFIBUS master card from another vendor?
A: In most cases, yes — provided the replacement card occupies a standard SLC 500 I/O slot and communicates via the SLC backplane. The data table mapping structure will differ from third-party implementations, so the RSLogix 500 program will require updates to reference the correct M-file addresses.

Q: How long does commissioning typically take on-site?
A: For a direct same-model replacement with an existing configuration backup, commissioning typically takes 1–2 hours including module swap, configuration download, and network verification. For a migration from a different PROFIBUS master, allow 4–8 hours depending on the number of slave devices and complexity of the data mapping.
