SST SST-PB3-PCU Replacement for PROFIBUS DP Series

Product Overview

SST SST-PB3-PCU Replacement for PROFIBUS DP Series: Smooth Migration from Legacy ISA-Bus Systems

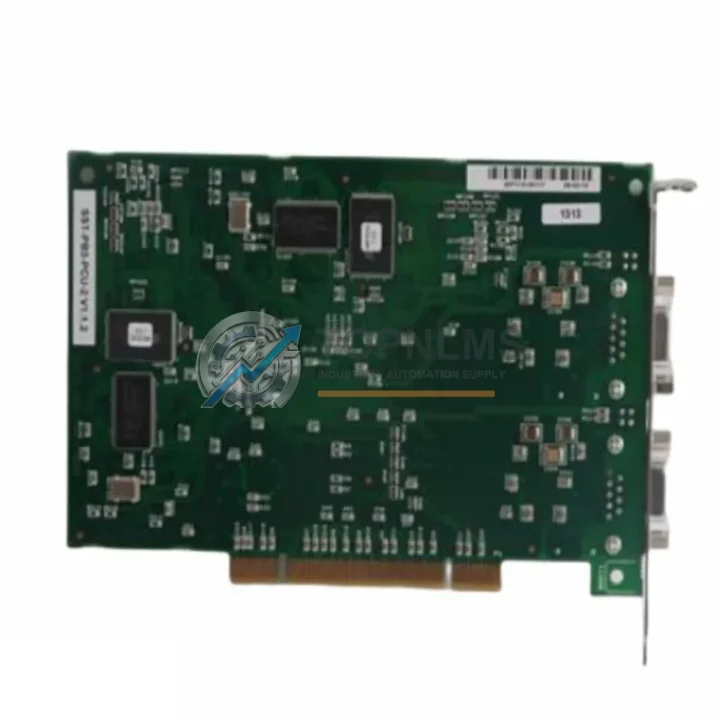

The SST SST-PB3-PCU is a PROFIBUS DP ISA-bus interface card designed for industrial PC-based control systems acting as a gateway between a host PC and a PROFIBUS DP network. As legacy ISA-slot industrial PCs reach end-of-life and OEM support for the SST-PB3-PCU is discontinued, plant engineers and procurement teams face an urgent need to source verified replacement units or plan a structured migration to a compatible successor platform. TOPNLMS maintains ready stock of the SST-PB3-PCU and compatible PROFIBUS DP interface solutions, enabling you to minimize downtime and protect your existing control architecture during the transition.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy PROFIBUS DP ISA-bus architecture to a modernized control system involves more than swapping a single card. During the retrofit process, engineers typically evaluate the entire communication chain and control cabinet layout. When replacing the SST-PB3-PCU, the PROFIBUS DP segment cabling and DB9 field connectors can be reused without modification, preserving the existing network topology and avoiding costly rewiring. The PROFIBUS DP termination plugs at both ends of the segment should be inspected and replaced if aged, as signal integrity on high-speed segments running at 6 Mbps or 12 Mbps is critical to stable master–slave communication.

For sites migrating from an ISA-based IPC to a modern PCI or PCIe industrial PC platform, the SST-PB3-PCU can be paired with a PROFIBUS DP PCI interface card such as the SST-PB3-PCI as a longer-term upgrade path, retaining the same GSD-based device configuration and DP master class 1 functionality. This approach allows the existing PROFIBUS DP slave devices — including remote I/O stations, variable frequency drives, and distributed sensor blocks — to remain online without reprogramming.

In many brownfield installations, the SST-PB3-PCU serves as the PROFIBUS DP master communicating with Siemens ET 200 distributed I/O racks, Phoenix Contact Inline I/O modules, or Beckhoff BK3100 bus couplers. These slave devices are fully compatible with any certified PROFIBUS DP master and will continue to operate without configuration changes after the card replacement. The DP master address, baud rate, and GSD parameterization stored in the host application software remain valid.

Where the legacy IPC also hosts a serial communication link to an upstream SCADA or DCS, engineers should verify that the RS-232 or RS-485 serial port configuration is preserved during the IPC migration. In some architectures, a separate PROFIBUS DP to Modbus RTU gateway module handles protocol conversion between the PROFIBUS segment and a Modbus-based DCS, and this gateway can be retained unchanged when only the master card is replaced.

Control cabinet space is rarely a constraint when replacing an ISA card with an identical form-factor unit. However, if the migration involves moving to a DIN-rail-mounted PROFIBUS DP gateway — such as an HMS Anybus Communicator or a Hilscher netTAP — the cabinet layout should be reviewed to accommodate the new DIN-rail module alongside existing terminal blocks, power supply units, and circuit breakers. A 24 V DC DIN-rail power supply module may be required to power the gateway independently of the IPC backplane.

For sites planning a full PLC migration away from the IPC-based architecture, the PROFIBUS DP network can be integrated into a Siemens S7-300 or S7-400 system using a CP 342-5 or CP 443-5 communications processor, or into a Siemens S7-1500 system via a CM 1542-5 PROFIBUS module. These migration paths allow the existing PROFIBUS DP slave infrastructure to be retained while the control logic is ported to a modern PLC platform with current firmware support and spare parts availability.

Retrofit Guidance FAQ

Q: Do I need to rewire the PROFIBUS DP field cables when replacing the SST-PB3-PCU?
No. The SST-PB3-PCU uses a standard DB9 female PROFIBUS DP connector. The replacement unit is pin-compatible, so existing field cables, termination plugs, and segment wiring can be reused without modification.

Q: Will my existing host application software and drivers work with the replacement card?
Yes. The replacement SST-PB3-PCU is functionally identical to the original. Existing SST driver packages, DLL interfaces, and application-layer communication routines do not require modification. The card address (I/O base address and IRQ) configured in the host software should be set to match the original hardware configuration.

Q: Is the PROFIBUS DP baud rate and master configuration preserved after replacement?
Yes. Baud rate, DP master class, slave address table, and GSD-based parameterization are stored in the host application, not on the card itself. After physical replacement and driver initialization, the master will re-establish communication with all configured slaves at the original baud rate.

Q: What if my IPC chassis no longer has a free ISA slot?
If the ISA slot is occupied or the IPC has been upgraded to a chassis without ISA slots, the recommended migration path is to a PROFIBUS DP PCI interface card (e.g., SST-PB3-PCI) or a DIN-rail-mounted PROFIBUS DP gateway. TOPNLMS can advise on compatible alternatives based on your IPC model and OS environment.

Q: How much physical space does the replacement card require in the control cabinet?
The SST-PB3-PCU is a full-length ISA card installed inside the IPC chassis. It does not occupy additional DIN-rail or panel space in the control cabinet. The IPC chassis footprint remains unchanged.

Q: Can the replacement card operate on a PROFIBUS DP segment with mixed baud rates or multiple masters?
PROFIBUS DP segments operate at a single baud rate shared by all devices. The SST-PB3-PCU supports all standard PROFIBUS DP baud rates from 9.6 kbps to 12 Mbps. Multi-master configurations are supported within the PROFIBUS DP protocol specification, provided each master is assigned a unique station address.

Q: What is the lead time and shipping arrangement?
TOPNLMS maintains ready stock of the SST-PB3-PCU in Xiamen, China. Orders are typically dispatched within 1–3 business days. International shipping via DHL, FedEx, or UPS Express is available with tracking. Estimated delivery to most destinations is 3–7 business days.

Warranty Assurance

Every SST-PB3-PCU unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes functional verification including PROFIBUS DP communication initialization, ISA bus interface check, and firmware version confirmation. Units that do not pass outgoing inspection are not shipped.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS will arrange a replacement unit at no additional cost. Our after-sales response target is within 24 business hours of a defect report. Replacement units are dispatched with priority shipping to minimize impact on your production schedule.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with each shipment. Long-term supply agreements and blanket purchase orders are supported for MRO and spare parts programs.

For technical pre-sales enquiries, compatibility verification, or to place an order, contact our industrial automation team directly.
