SIPOS 2SY5016-2SB00 Original Spare SIPOS 2 Compatible

Product Overview

SIPOS 2SY5016-2SB00 Original Spare SIPOS 2 Compatible

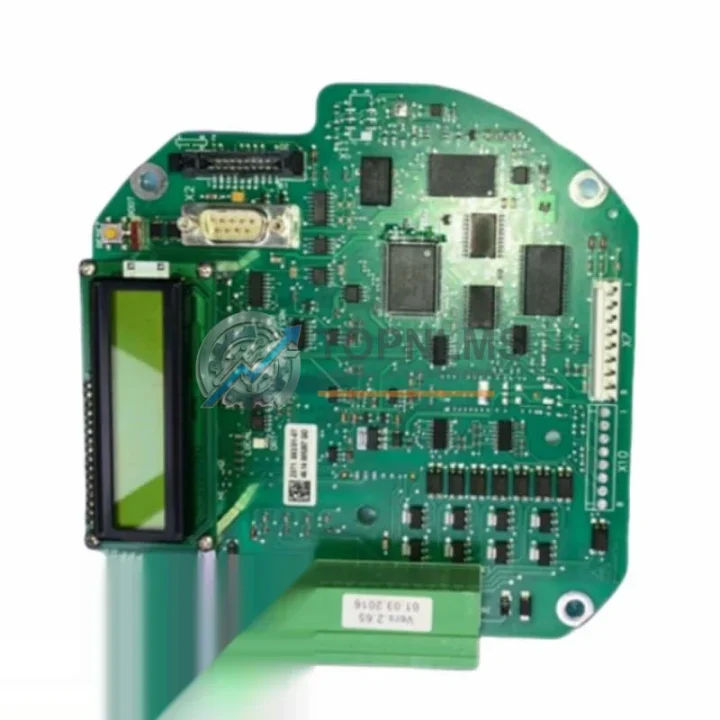

The SIPOS 2SY5016-2SB00 is a Power Control Unit (PCU) designed for the SIPOS 2 Series electric actuator platform — one of the most widely deployed actuator families in process automation, water treatment, power generation, and chemical plant environments. As a critical component within the actuator’s drive and control architecture, the 2SY5016-2SB00 governs power switching, motor phase control, and protection logic that keeps valve actuation reliable under continuous industrial duty cycles.

At TOPNLMS, we supply the 2SY5016-2SB00 as a genuine original spare part, fully tested prior to shipment and backed by a 12-month warranty. Whether you are responding to an unplanned failure, building a preventive maintenance stock, or extending the service life of aging SIPOS 2 actuator installations, this unit ships ready for direct field replacement with no firmware reconfiguration required in most standard configurations.

Critical Technical Specs Table

Preventive Maintenance Strategy

A field-proven maintenance strategy for SIPOS 2 actuator installations goes well beyond replacing a single module. When a 2SY5016-2SB00 Power Control Unit shows signs of wear — such as intermittent motor faults, erratic torque behavior, or tripped overload protection — experienced maintenance engineers treat it as a signal to audit the entire actuator assembly and its associated control cabinet components.

During a planned shutdown or corrective maintenance window, it is standard practice to simultaneously inspect the SIPOS 2SY5013-0BA00 control electronics board, which manages position feedback, limit switching, and communication with the DCS or PLC. A degraded control board can mask or mimic PCU faults, leading to repeat failures if only the power unit is replaced. Similarly, the SIPOS 2SY5010-0AA00 motor assembly should be checked for winding insulation integrity and bearing condition, as motor deterioration accelerates PCU stress.

On the field wiring side, terminal blocks and cable glands within the actuator junction box are frequent failure points in humid or chemically aggressive environments. Replacing aged Phoenix Contact MKDS terminal blocks or equivalent actuator-rated terminals during the same maintenance window prevents nuisance faults after the PCU is restored. For actuators integrated into a PROFIBUS DP or HART network, the SIPOS 2SY5017-0AA00 fieldbus interface module should be verified for communication integrity — a failing interface card can cause the DCS to misread valve position even when the actuator mechanics are sound.

Power supply quality is another critical factor. Actuators fed from aging 24 VDC auxiliary power supplies or undersized control transformers are prone to brownout-induced PCU trips. Auditing the upstream Siemens SITOP PSU100S or equivalent DIN-rail power supply during the same maintenance cycle ensures the replacement 2SY5016-2SB00 operates within its rated voltage envelope from day one.

For facilities managing large valve populations, a structured spare parts inventory covering the 2SY5016-2SB00 PCU, the control board, and the fieldbus module — combined with a stock of SIPOS actuator programming cables (such as the 2SY5000-0AA00 or compatible USB-to-RS232 adapter) — enables rapid field swap-out with minimal diagnostic delay. Pairing this with a signal isolator on the 4–20 mA position feedback loop protects the replacement module from ground loop interference common in older plant wiring infrastructures.

Strategic Replacement Solutions

The SIPOS 2SY5016-2SB00 is a direct internal replacement for the same part number across all standard SIPOS 2 actuator variants. No mechanical modification is required — the module mounts to the existing actuator chassis using the original fastener pattern, and the electrical connectors are keyed to prevent misinstallation.

For sites where the original 2SY5016-2SB00 has been discontinued from local distributor stock or carries extended lead times through OEM channels, TOPNLMS maintains ready inventory to support urgent maintenance requirements. Our units are sourced from verified supply chains, individually tested, and shipped with full documentation to support your maintenance records and ISO audit trail.

Replacing the PCU in a SIPOS 2 actuator typically requires no re-parameterization of torque limits, travel limits, or fieldbus node addresses — these settings are stored in the control electronics board, not the power unit. This makes the 2SY5016-2SB00 one of the lowest-risk replacement operations in the SIPOS 2 maintenance workflow, with most field teams completing the swap in under two hours including functional verification.

For older SIPOS 2 installations approaching end-of-service-life, stocking a 2SY5016-2SB00 alongside a spare control board and fieldbus module creates a comprehensive actuator rebuild kit — effectively extending the operational life of the installed base by 5–10 years without the capital cost of full actuator replacement.

Support FAQ

Q1: Is the 2SY5016-2SB00 compatible with all SIPOS 2 actuator variants?
The 2SY5016-2SB00 is designed for the SIPOS 2 platform. Compatibility depends on the specific actuator model and voltage configuration. Please provide your actuator nameplate data (model, supply voltage, and year of manufacture) when ordering, and our technical team will confirm direct fit before shipment.

Q2: Will replacing the PCU require re-programming the actuator?
In most SIPOS 2 configurations, actuator parameters (torque limits, travel limits, fieldbus address) are stored on the control electronics board — not the Power Control Unit. Replacing the 2SY5016-2SB00 alone typically does not require re-parameterization. However, we recommend verifying this with your site’s actuator configuration records before proceeding.

Q3: What is included in the 12-month warranty?
All units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing. In the event of a warranty claim, we provide replacement or refund support with fast response — typically within 2 business days of fault confirmation.

Q4: How quickly can the 2SY5016-2SB00 be shipped?
In-stock units ship within 1–3 business days from our Xiamen warehouse. Express international shipping options (DHL, FedEx, UPS) are available for urgent maintenance requirements. We provide tracking information and commercial invoice documentation suitable for customs clearance in most major industrial markets.
