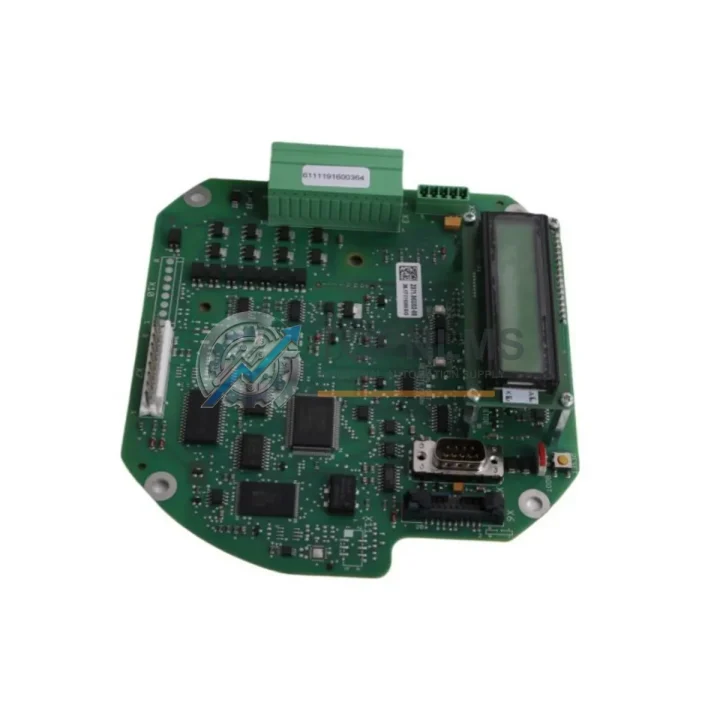

SIPOS 2SY5010-1LB05 Ruggedized Control Card for Harsh Environments

Product Overview

SIPOS 2SY5010-1LB05 Ruggedized Electronic Control Card: Industrial Resilience for Harsh Environments

The SIPOS 2SY5010-1LB05 is a precision-engineered electronic control card designed for the SIPOS 2SY5010 series electric actuators — a platform trusted across oil & gas pipelines, power generation facilities, water treatment plants, and heavy industrial process lines worldwide. Built to German engineering standards, this control card delivers unwavering signal integrity and operational continuity in environments where temperature extremes, high humidity, airborne particulates, mechanical vibration, and electromagnetic interference would compromise lesser components.

In continuous production environments — where unplanned downtime translates directly into lost revenue and safety risk — the 2SY5010-1LB05 provides the reliable closed-loop position feedback and motor control logic that keeps actuator-driven valves, dampers, and gate mechanisms responding precisely to process commands. Its robust PCB construction, conformal coating, and shielded signal pathways make it a dependable backbone for critical infrastructure control systems.

Rugged Specifications Table

Comprehensive Protection Solutions

The SIPOS 2SY5010-1LB05 control card does not operate in isolation — it is the intelligence layer within a broader actuator control architecture. In a typical process control cabinet, this card interfaces directly with the actuator’s motor drive stage, receiving setpoint commands from a distributed control system (DCS) or programmable logic controller (PLC) such as a Siemens SIMATIC S7-300 or S7-400 series CPU module. Position feedback signals are routed through the card to the DCS I/O modules, ensuring that valve position data is continuously available to the process control loop.

For installations requiring intrinsically safe operation in Zone 1 or Zone 2 hazardous areas, the 2SY5010-1LB05 is typically paired with SIPOS 2SY5010-0LA00 barrier modules and Siemens SIMATIC ET 200 distributed I/O stations, which handle signal isolation between the safe area control room and the field-mounted actuator. In high-vibration environments such as compressor stations or mining conveyors, the card’s conformal-coated PCB works in tandem with SIPOS 2SY5010-0LB00 power supply boards to maintain stable 24 VDC logic power even under significant mechanical stress.

Communication integrity is maintained through PROFIBUS DP or HART protocol interfaces, depending on the actuator variant configuration. In plants running Siemens SIMATIC PCS 7 process control systems, the 2SY5010-1LB05 integrates seamlessly into the existing fieldbus topology, eliminating the need for protocol converters or additional signal conditioning hardware. Surge protection for the control card’s I/O terminals is commonly provided by Phoenix Contact TRABTECH or Siemens SIPROTEC surge arresters installed at the cabinet terminal rail.

For complete actuator control cabinet builds, the 2SY5010-1LB05 is frequently specified alongside SIPOS 2SY5010-1LA05 position transmitter cards, Siemens 3RV series motor protection circuit breakers, and SIRIUS 3RT contactors — forming a fully coordinated motor control center (MCC) solution that meets IEC 60947 and ATEX certification requirements for hazardous area installations.

Application in Critical Infrastructure

Across the world’s most demanding industrial sectors, the SIPOS 2SY5010-1LB05 electronic control card has proven its value as a mission-critical spare and replacement component.

Oil & Gas: On offshore platforms and onshore pipeline stations, SIPOS 2SY5010 actuators control emergency shutdown (ESD) valves and pressure control valves. The 2SY5010-1LB05 card ensures that these actuators respond within milliseconds to ESD commands, even after years of continuous operation in salt-laden, high-humidity marine atmospheres. Replacement of a failed control card on-site — rather than returning the entire actuator for factory repair — dramatically reduces valve-out-of-service time and associated production losses.

Power Generation: In coal-fired, gas turbine, and nuclear power plants, steam and feedwater control valves driven by SIPOS actuators must maintain precise positioning accuracy under high-temperature, high-pressure conditions. The 2SY5010-1LB05 provides the stable control logic that prevents valve hunting and ensures smooth load-following response, protecting turbine efficiency and grid stability.

Water & Wastewater Treatment: Municipal water authorities rely on SIPOS electric actuators to operate large-bore isolation and throttling valves in treatment plants and pumping stations. The 2SY5010-1LB05 control card’s resistance to high ambient humidity and chemical vapors makes it well-suited for wet, corrosive environments where pneumatic actuator systems would require extensive air preparation infrastructure.

Mining & Metallurgy: In ore processing plants and smelters, where heavy dust loading, extreme temperatures, and continuous vibration are the norm, the ruggedized construction of the 2SY5010-1LB05 ensures that actuator control remains reliable across multi-year maintenance intervals. Its availability as a stocked spare component at TOPNLMS means that unplanned actuator failures can be resolved within days rather than weeks.

Chemical & Petrochemical Processing: Continuous process plants operating 24/7 cannot afford actuator downtime during scheduled turnarounds. Stocking the 2SY5010-1LB05 as a critical spare — alongside compatible SIPOS power supply and position feedback cards — is a standard practice for reliability engineers managing SIL-rated safety instrumented systems (SIS).

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the SIPOS 2SY5010-1LB05?
All 2SY5010-1LB05 units supplied by TOPNLMS carry a 12-month warranty covering functional defects under normal operating conditions. If a unit fails due to a manufacturing or component defect within the warranty period, we provide a replacement or full refund. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling after delivery.

Q2: How is each unit tested before shipment?
Every 2SY5010-1LB05 control card undergoes pre-shipment functional verification, including power-on testing, signal I/O continuity checks, and visual inspection for PCB damage, corrosion, or component anomalies. Units sourced as new OEM stock are verified against original SIPOS packaging and date codes. Tested-good surplus units are bench-tested and documented before dispatch.

Q3: Is the 2SY5010-1LB05 compatible with all SIPOS 2SY5010 actuator variants?
The 2SY5010-1LB05 is designed for the SIPOS 2SY5010 series platform. Compatibility depends on the specific actuator variant, firmware revision, and control configuration. We recommend confirming your actuator’s nameplate data and existing card revision before ordering. Our technical team at [email protected] can assist with cross-referencing and compatibility verification at no charge.

Q4: Can TOPNLMS guarantee long-term supply of the 2SY5010-1LB05?
Yes. TOPNLMS maintains dedicated inventory of SIPOS 2SY5010 series components, including the 2SY5010-1LB05, to support long-term maintenance programs for plants with extended asset lifecycles. We work with industrial facilities on planned spare parts procurement, offering volume pricing and reserved stock agreements for customers with multi-year maintenance contracts. Contact us at +86 18359293191 to discuss your long-term supply requirements.
