SIGMATEK ETT1233 01-230-1233 Original Industrial Spare ETT Compatible

Product Overview

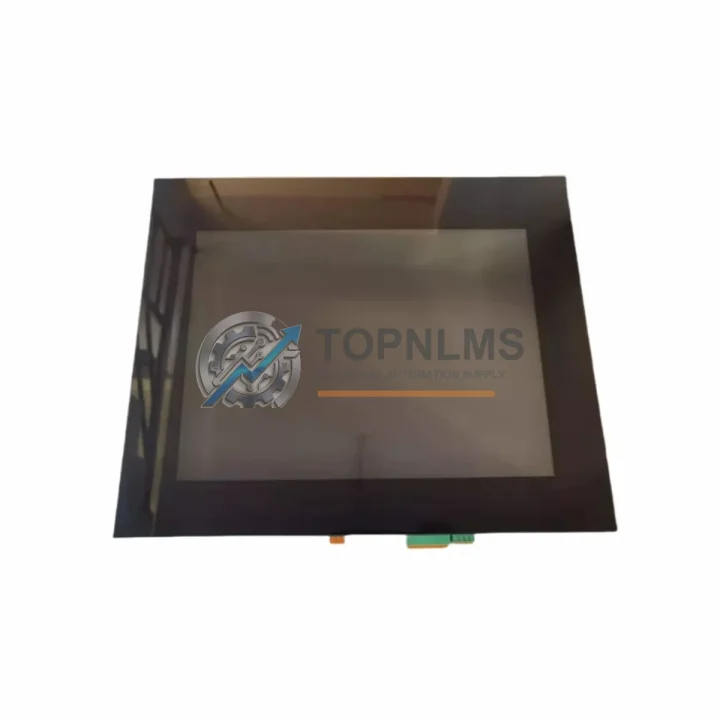

SIGMATEK ETT1233 01-230-1233: Original Industrial Spare for ETT Series HMI System Stability

In modern industrial automation environments, the Human-Machine Interface (HMI) is the critical bridge between operators and control systems. The SIGMATEK ETT1233 (Part No. 01-230-1233) is an original ETT Series touch terminal engineered for demanding factory-floor conditions. Whether you are managing a scheduled shutdown, responding to an unplanned fault, or building a strategic spare-parts inventory, having a verified original ETT1233 on hand is a direct investment in system uptime and operational continuity.

SIGMATEK’s ETT Series HMI terminals are widely deployed across machine-building, process automation, and discrete manufacturing lines throughout Europe and Asia. The ETT1233 integrates seamlessly into SIGMATEK LASAL-based control architectures, maintaining full software compatibility and eliminating the re-commissioning overhead that aftermarket alternatives typically introduce. For maintenance engineers managing aging control cabinets, this original spare is the lowest-risk, fastest-path-to-recovery option available.

Critical Technical Specs

Preventive Maintenance Strategy

A reactive maintenance approach — replacing the ETT1233 only after a screen failure or communication fault — is the most expensive strategy available to a plant engineer. Unplanned HMI downtime cascades quickly: operators lose visibility, safety interlocks may trigger, and production lines halt. A structured preventive maintenance plan built around the ETT Series significantly reduces this risk.

When scheduling a control cabinet inspection that includes the ETT1233, experienced maintenance teams simultaneously audit the SIGMATEK C-IPC controller or DIAS-Drive servo drive that the HMI communicates with — because a degraded controller will stress the HMI’s communication stack and accelerate wear. The 24 V DC power supply module feeding the HMI rail should be load-tested; an under-voltage condition is a leading cause of touch-screen calibration drift and intermittent reboot cycles on ETT Series terminals.

The CANopen communication cable and Ethernet patch cable connecting the ETT1233 to the SIGMATEK DIAS bus should be inspected for jacket cracking, connector corrosion, and bend-radius violations — particularly in installations older than five years. Alongside the HMI, the SIGMATEK CP043 or CP062 CPU module in the same rack is a logical co-inspection target: if the HMI is showing age, the CPU module likely is too, and a simultaneous replacement during a planned shutdown avoids a second outage weeks later.

For facilities running mixed SIGMATEK and third-party I/O, the DIAS I/O digital input/output modules connected to the same backplane should be checked for blown channels or degraded optocouplers. Terminal block assemblies on the field-wiring side of these I/O modules are a common source of intermittent faults that operators mistakenly attribute to the HMI display. Similarly, signal isolator modules on analog input channels feeding the SIGMATEK controller can introduce noise that manifests as erratic HMI readings — replacing aging isolators during the same maintenance window is efficient and cost-effective.

Finally, fuse modules and circuit breakers protecting the 24 V DC bus should be tested for correct trip characteristics. A slow-blow fuse that has been thermally stressed over years of operation may no longer protect the HMI rail adequately. Stocking a set of DIN-rail fuse holders alongside the ETT1233 spare ensures a complete cabinet restoration capability without secondary procurement delays.

Strategic Replacement Solutions

The ETT1233 was designed as a long-lifecycle HMI platform, but SIGMATEK’s product roadmap has evolved. For facilities still operating original ETT Series installations, the ETT1233 (01-230-1233) remains the correct drop-in replacement — no software re-flashing, no panel cutout modification, no LASAL project reconfiguration. This is the critical advantage of sourcing an original spare over an aftermarket substitute.

For maintenance managers responsible for multiple machines sharing the same SIGMATEK ETT Series HMI, a min-max inventory strategy is strongly recommended: maintain a minimum of one ETT1233 unit per production line, with a reorder trigger set at that minimum. The lead time for original SIGMATEK spares through standard distribution channels can extend to 8–16 weeks; having buffer stock eliminates this exposure entirely.

When the ETT1233 is being replaced as part of a broader control system modernization — rather than a like-for-like swap — the SIGMATEK DIAS architecture allows phased migration. The HMI can be upgraded to a current-generation ETT or CP-series panel while retaining existing DIAS I/O modules and field wiring, protecting the majority of the installed-base investment. This approach reduces total migration cost and allows engineering teams to validate the new HMI configuration against the existing LASAL project before committing to a full cutover.

All ETT1233 units supplied by TOPNLMS are subject to incoming inspection, functional verification under 24 V DC operating conditions, and communication interface testing prior to shipment. Units are packed in anti-static, shock-absorbing packaging suitable for international air and sea freight.

Support FAQ

Q1: What is the warranty coverage for the ETT1233 01-230-1233?
All units carry a 12-month warranty from the date of shipment. Coverage includes functional failure under normal operating conditions. Units are tested before dispatch; any unit that fails on arrival is replaced or refunded promptly.

Q2: How do I verify compatibility with my existing SIGMATEK installation before ordering?
Provide your existing HMI part number, LASAL software version, and DIAS bus configuration. Our technical team will confirm compatibility before the order is processed. The ETT1233 is a direct replacement for any installation originally specifying part number 01-230-1233.

Q3: What is the typical lead time and shipping method?
In-stock units ship within 2 business days via DHL Express, FedEx International Priority, or sea freight depending on destination and quantity. Tracking is provided at dispatch. Expedited shipping is available for emergency maintenance situations.

Q4: Can I return a unit if it does not resolve my fault condition?
Yes. If the ETT1233 does not resolve the diagnosed fault and the unit is returned in its original condition within 30 days, a full refund or exchange is issued. We recommend performing a swap-test with the spare before decommissioning the original unit to confirm the fault is HMI-related rather than upstream in the controller or communication bus.
