Siemens ULC0065 Replacement for APOGEE Unitary Series

Product Overview

Siemens ULC0065 Replacement for APOGEE Unitary Series: Smooth Migration from Legacy Controllers

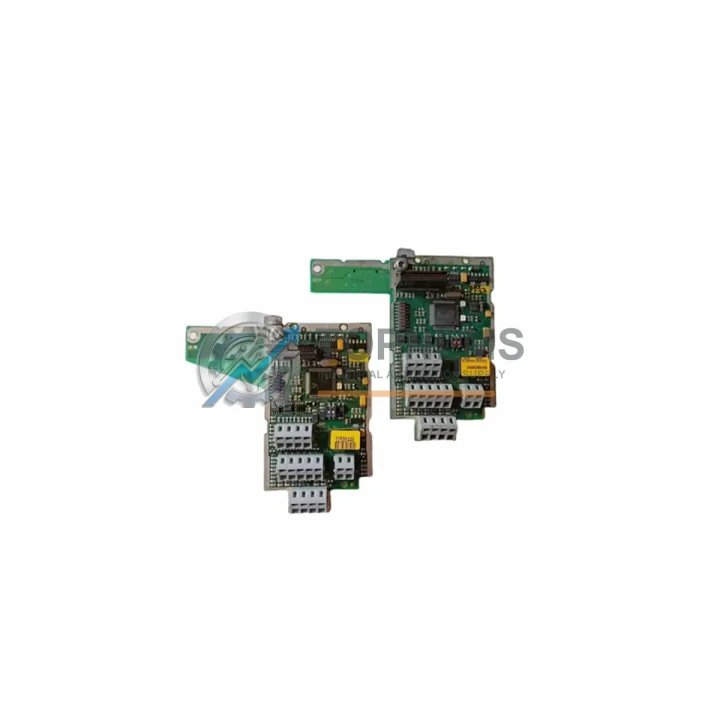

The Siemens ULC0065 is a core control board within the APOGEE Unitary Products series, widely deployed in commercial HVAC and building automation systems (BAS) across hospitals, campuses, and industrial facilities. As the ULC0065 reaches end-of-life and spare inventory becomes increasingly scarce, facilities engineers and system integrators face mounting pressure to source verified replacement units that preserve existing wiring infrastructure, communication topology, and control logic — without triggering a full system overhaul.

TOPNLMS supplies tested, ready-to-ship ULC0065 replacement control boards sourced from verified channels, enabling a seamless transition from aging or failed units while protecting your capital investment in the existing APOGEE field architecture.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ULC0065 migration rarely involves a single component swap. In practice, field engineers replacing a failed or end-of-life unitary controller board must also evaluate the surrounding system architecture to ensure the entire control loop remains stable after the retrofit.

When the ULC0065 is replaced within an APOGEE Unitary Products installation, the P1 Bus communication trunk must be verified for correct termination resistance and daisy-chain integrity. If the existing P1 Bus segment also includes aging Siemens TEC (Terminal Equipment Controller) units or APOGEE Field Panel modules, those devices should be inspected simultaneously to avoid cascading communication faults after the board swap.

In AHU (air handling unit) applications, the ULC0065 typically interfaces with Siemens actuators (such as the GDE series damper actuators) and Siemens room temperature sensors (QAA series). These peripheral devices retain their existing wiring connections during a board replacement, but their calibration offsets and setpoint parameters stored in the original controller database must be re-downloaded from the APOGEE Insight workstation after commissioning the replacement board.

For sites running a mixed-generation APOGEE network, the replacement ULC0065 must be assigned the same P1 Bus device address as the failed unit to avoid disrupting the upstream Siemens Insight Field Panel (FLN) polling schedule. Facilities that have migrated portions of their BAS to BACnet/IP via a Siemens APOGEE BACnet Router should confirm that the router’s routing table still maps correctly to the replaced unitary controller’s object list.

Where the control cabinet also houses a 24 VAC power distribution transformer and terminal strip wiring blocks, these components should be inspected for insulation degradation during the board replacement window — minimizing future unplanned downtime. If the site uses Siemens SIGMAGYR RVS-series room controllers or Climatix POL series controllers in adjacent zones, ensure that the zone sequencing logic in the APOGEE Insight database is consistent across all replaced and retained controllers before returning the system to automatic operation.

For larger campus-wide migrations involving multiple ULC0065 units across several air handling systems, TOPNLMS recommends staging replacement boards in advance and performing a phased swap during scheduled maintenance windows to minimize occupied-space disruption and reduce commissioning risk.

Retrofit Guidance FAQ

Q: Do I need to rewire the field terminals when replacing the ULC0065?
A: No. The replacement ULC0065 uses the same terminal block layout as the original. All existing field wiring — including analog inputs, digital outputs, and P1 Bus connections — can be transferred directly without modification.

Q: Will my existing APOGEE Insight programming work with the replacement board?
A: Yes. The replacement board is compatible with the APOGEE Insight / TALON software environment. After physical installation, download the existing controller database from your Insight workstation to restore all setpoints, schedules, and control sequences.

Q: Is the P1 Bus communication protocol preserved?
A: Yes. The ULC0065 replacement supports the P1 Bus protocol natively. Assign the same device address as the failed unit and the upstream Field Panel will resume polling without requiring changes to the network configuration.

Q: Does the replacement board fit in the existing control cabinet?
A: Yes. The replacement ULC0065 has an identical physical footprint to the original, so no modifications to the enclosure, DIN rail, or mounting hardware are required.

Q: What if my site uses BACnet MS/TP alongside P1 Bus?
A: The ULC0065 supports BACnet MS/TP communication. If your site uses a BACnet router to bridge P1 Bus segments to a BACnet/IP backbone, the replacement board will integrate without changes to the router configuration, provided the device address and object list remain consistent.

Q: How long does commissioning typically take after a board swap?
A: For a direct replacement with an existing Insight database backup, commissioning typically takes 1–2 hours per controller, including database download, I/O verification, and setpoint confirmation.

Warranty Assurance

Every ULC0065 replacement board supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional pre-shipment inspection to verify power-up behavior, communication interface integrity, and I/O channel continuity.

In the event of a confirmed defect within the warranty period, TOPNLMS provides a replacement unit or full refund, with return shipping coordinated by our after-sales team. Our typical after-sales response time is within 24 business hours.

All orders are shipped from our Xiamen warehouse with full tracking. Standard international delivery is 5–10 business days depending on destination. Express options are available for urgent breakdown situations. We maintain buffer stock of high-demand APOGEE Unitary Products components to support rapid dispatch for emergency replacement orders.

For procurement teams requiring documentation, we can provide a product test report, packing list, and commercial invoice upon request. OEM certificates of conformity are provided where available.
