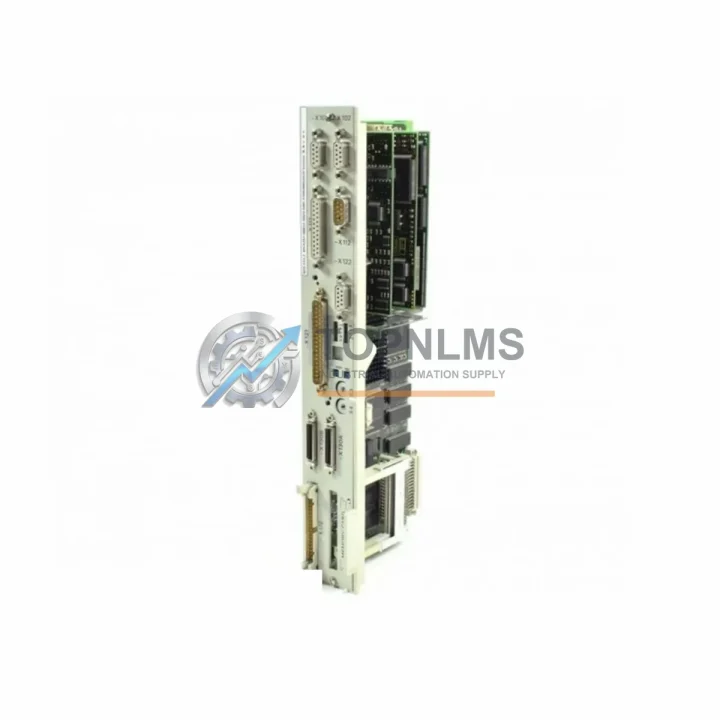

Siemens NCU572.2 6FC5357-0BB21-0AE0 Replacement for Sinumerik 840D: Seamless Transition & Legacy System Upgrade

The Siemens NCU572.2 (order number 6FC5357-0BB21-0AE0) is a Numerical Control Unit designed for the Sinumerik 840D CNC platform — one of the most widely deployed high-performance CNC systems in precision machining, mold manufacturing, and multi-axis turning centers worldwide. As the NCU572.2 approaches end-of-life and spare parts become increasingly scarce, many plant engineers and maintenance teams are now planning controlled replacements or direct substitutions to maintain production continuity.

This listing provides a verified replacement unit for the NCU572.2 6FC5357-0BB21-0AE0, sourced from authorized supply channels and fully tested prior to shipment. Whether you are executing an emergency swap after an unexpected failure or conducting a planned upgrade within your Sinumerik 840D architecture, this unit is prepared to minimize your machine downtime and restore CNC operation with minimal re-commissioning effort.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful NCU572.2 replacement rarely involves the NCU alone. In most Sinumerik 840D installations, the NCU works in close coordination with a range of peripheral modules that must be verified or simultaneously upgraded to ensure system integrity.

The SIMODRIVE 611D power module and its associated feed drive modules are the most common components requiring attention during an NCU swap. If the existing 611D drive bus firmware is significantly older than the replacement NCU’s NCK version, a coordinated firmware update across both the NCU and the drive modules is strongly recommended to avoid axis communication faults at startup.

The PP72/48 I/O module (order family 6FC5311-0AA00-0AA0 and variants) connects to the NCU via PROFIBUS-DP and handles machine I/O signals including tool change, coolant, and door interlock circuits. These modules are typically retained during an NCU replacement, but their PROFIBUS address configuration and GSD file assignments should be verified in the HW Config before re-commissioning.

The PCU50 or PCU20 operator panel unit, which hosts the HMI Advanced or HMI Embedded software, communicates with the NCU over MPI or Ethernet. After replacing the NCU572.2, the PCU’s machine data archive should be reloaded to restore axis parameters, tool offsets, and zero-point shifts. If the PCU itself is aging, this is an opportune moment to evaluate a PCU50.3 upgrade alongside the NCU replacement.

The OP010 or OP012 operator panel connected to the PCU via USB or proprietary interface typically requires no modification during an NCU swap, but the panel’s softkey layout and screen configuration files should be backed up before any firmware changes are applied to the NCU or PCU.

For machines using Siemens 1FK7 or 1FT6 servo motors with encoder feedback routed through the NCU’s measurement circuit board (MCB), the encoder cable connectors at the NCU side should be inspected and reseated during the replacement procedure. Encoder signal integrity is critical for accurate axis positioning after the swap.

If your control cabinet includes a Sitop PSU300S or Sitop modular 24 VDC power supply, verify that the output voltage is within the 24 V ±5% tolerance required by the NCU572.2 before powering up the replacement unit. An out-of-tolerance supply voltage is a common cause of NCU boot failures that can be mistaken for a faulty replacement unit.

Machines with PROFIBUS-connected distributed I/O — such as ET 200S or ET 200M remote I/O stations — should have their PROFIBUS segment termination resistors checked after the NCU is replaced, particularly if the NCU’s PROFIBUS port position in the segment changes during the swap.

Finally, if your Sinumerik 840D system uses a CF card (CompactFlash) for NCK data storage, ensure the CF card is transferred from the old NCU to the replacement unit, or that a verified backup image is available for restore. The CF card contains the machine-specific NCK configuration, PLC program, and drive parameters that define your machine’s behavior.

Retrofit Guidance FAQ

Q: Can I reuse the existing wiring harness when replacing the NCU572.2?
A: Yes. The NCU572.2 6FC5357-0BB21-0AE0 uses the same X101, X102, X111, and X121 connector positions as earlier NCU572.x variants. The existing cable harness can be transferred directly without modification in the vast majority of installations.

Q: Do I need to reprogram the PLC after replacing the NCU?
A: Not if you have a valid PLC program backup. The PLC program (Step 7 project or TIA Portal project for 840D sl) should be reloaded from the CF card or from a PCU backup archive. If the NCK and PLC firmware versions differ significantly between the old and new NCU, a coordinated firmware update may be required before the PLC program reload.

Q: Is the NCU572.2 compatible with PROFIBUS-DP drives and I/O?
A: Yes. The NCU572.2 includes an integrated PROFIBUS-DP master interface that is fully compatible with SIMODRIVE 611D drive modules, PP72/48 I/O modules, and third-party PROFIBUS devices configured in the existing HW Config.

Q: Will the replacement NCU fit in the existing control cabinet without modification?
A: Yes. The NCU572.2 uses the standard Sinumerik 840D NCU box form factor and mounts on the same DIN rail position. No cabinet cutouts, additional mounting hardware, or cable routing changes are required.

Q: How do I restore machine data after the NCU swap?
A: Transfer the CF card from the old NCU to the replacement unit, or use the HMI’s series machine start-up (Inbetriebnahme) menu to reload a previously saved machine data archive. Axis parameters, tool offsets, zero-point shifts, and PLC data are all restored through this process.

Q: What communication protocols does the NCU572.2 support?
A: The NCU572.2 supports MPI (Multi-Point Interface), PROFIBUS-DP, and Industrial Ethernet. This covers the full range of communication requirements for Sinumerik 840D installations, including PCU-to-NCU communication, drive bus communication, and remote diagnostics via Ethernet.

Warranty Assurance

Every NCU572.2 6FC5357-0BB21-0AE0 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a functional verification process that includes power-on testing, communication port checks, and visual inspection for physical damage or component degradation.

If a unit develops a fault within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or repair service at no additional cost. Our after-sales response team is reachable via email and phone to support fault diagnosis, return authorization, and replacement coordination.

For urgent production-critical replacements, expedited shipping options are available from our Xiamen warehouse to destinations across Asia, Europe, and the Americas. Most in-stock units are dispatched within 1–2 business days of order confirmation.

We understand that unplanned CNC downtime carries significant production cost. Our procurement support team can assist with lead time confirmation, export documentation, and customs declaration support for international shipments to help you restore machine operation as quickly as possible.
