Siemens MPP483IEH-S12 Ruggedized Machine Push Button Panel

Product Overview

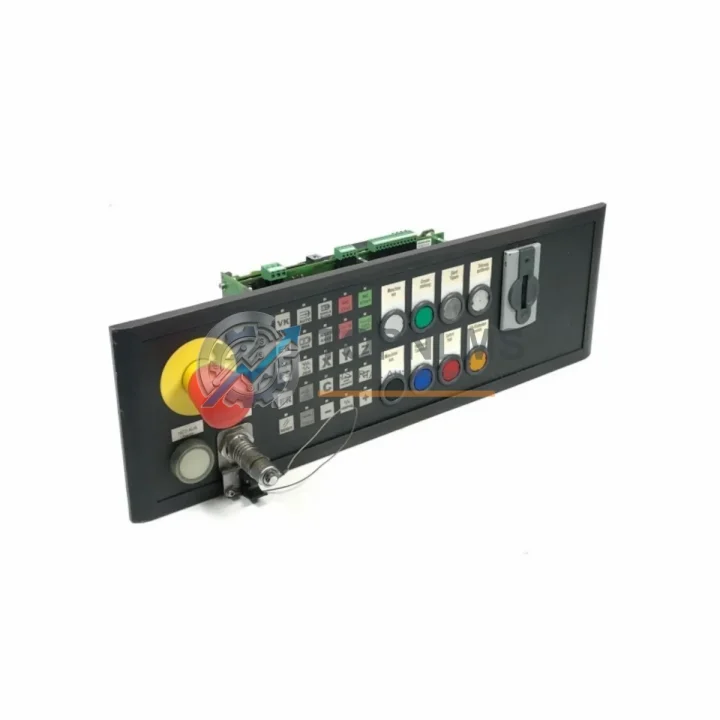

Siemens MPP483IEH-S12 Ruggedized Machine Push Button Panel for Harsh Industrial Environments

The Siemens MPP483IEH-S12 (Siemens part number 6FC5303-1AF12-8AM0) is a ruggedized 483 mm machine push button panel engineered for continuous, reliable operation in the most demanding industrial environments. Designed as an integral operator interface component within the Siemens SINUMERIK CNC control architecture, this panel delivers consistent performance in high-temperature workshops, high-humidity foundries, dusty mining galleries, and vibration-intensive heavy machining centers where lesser HMI components routinely fail.

With an IP65-rated enclosure, the MPP483IEH-S12 provides full protection against dust ingress and low-pressure water jets — a critical requirement for machine tool environments where coolant mist, metal swarf, and airborne particulates are constant threats to operator panel longevity. The 24 VDC operating voltage aligns with standard industrial control cabinet power architectures, simplifying integration with existing Siemens SITOP power supply units and reducing the risk of voltage mismatch during panel replacement or system expansion.

In CNC machining centers and turning cells, the MPP483IEH-S12 interfaces directly with the Siemens SINUMERIK 840D sl and 828D CNC systems, providing operators with tactile, clearly labeled machine control inputs for spindle override, feed rate adjustment, axis jog, and emergency stop functions. Its 483 mm (19-inch rack-compatible) form factor integrates cleanly into standard Siemens SINUMERIK Operate operator station enclosures, reducing panel fabrication time and ensuring dimensional consistency across multi-machine production lines.

Rugged Specifications Table

Comprehensive Protection Solutions

The MPP483IEH-S12 does not operate in isolation — it is one node in a tightly integrated control architecture where every component’s reliability directly affects overall system uptime. In a typical SINUMERIK-based machining cell, this push button panel works in concert with the Siemens SINUMERIK 840D sl NCU 720.3 numerical control unit, which processes all axis interpolation and spindle control commands triggered by operator inputs at the panel. The Siemens PPU 290.4 (Panel Processing Unit) for 828D systems similarly relies on the push button panel as its primary operator interface for manual machine control.

On the drive side, the MPP483IEH-S12’s feed rate and spindle override inputs directly influence the behavior of Siemens SINAMICS S120 servo drive modules, which power the linear and rotary axes of the machine tool. Stable, debounce-free button signals from the panel are essential to prevent unintended axis movements or spindle speed fluctuations that could compromise workpiece quality or operator safety. The panel’s 24 VDC power rail is typically sourced from a Siemens SITOP PSU8200 stabilized power supply, whose regulated output ensures consistent panel illumination and switch actuation voltage even during mains voltage fluctuations common in heavy industrial facilities.

For safety-critical applications, the MPP483IEH-S12’s emergency stop circuit integrates with Siemens SIRIUS 3SK1 safety relay modules, which monitor E-stop loop integrity and trigger safe torque-off (STO) signals to the SINAMICS drives in the event of a panel fault or operator activation. Communication between the CNC, drives, and I/O peripherals is managed over PROFIBUS DP or DRIVE-CLiQ backbones, and the panel’s control signals are routed through Siemens ET 200SP distributed I/O modules mounted in the control cabinet, ensuring deterministic signal transmission even in electromagnetically noisy environments.

Terminal connections within the control cabinet are made via Siemens SIRIUS ACT push-button accessories and Phoenix Contact-compatible terminal blocks, providing secure, vibration-resistant wiring terminations that maintain contact integrity over years of machine operation. For facilities running multiple SINUMERIK machines, maintaining a stocked spare of the MPP483IEH-S12 alongside the Siemens OP 010 operator panel and TCU 30.3 thin client unit ensures that any HMI-layer failure can be resolved within a single shift, preventing costly production stoppages.

Application in Critical Infrastructure

The Siemens MPP483IEH-S12 has established a proven service record across the full spectrum of critical industrial infrastructure. In oil and gas processing facilities, it serves as the operator control interface for CNC-driven pipe threading machines and valve body machining centers, where IP65 sealing prevents hydrocarbon mist and cleaning solvents from degrading switch contacts. In mining operations, the panel withstands the extreme vibration profiles generated by proximity to crushing and screening equipment, maintaining reliable operator control of CNC-driven drill bit grinding and component reconditioning machines that keep mining equipment operational.

In power generation plants — both thermal and nuclear — the MPP483IEH-S12 is deployed on precision CNC lathes and milling machines used for turbine blade profiling and pump component machining, where dimensional accuracy is non-negotiable and any unplanned machine downtime carries significant operational and regulatory consequences. The panel’s CE marking and compliance with IEC industrial standards satisfies the stringent equipment qualification requirements common in power sector maintenance workshops.

Steel and metallurgy facilities present some of the harshest operating conditions for any electronic component: radiant heat from furnaces, electromagnetic interference from large induction heating systems, and airborne metallic dust that penetrates conventional enclosures. The MPP483IEH-S12’s IP65 rating and robust mechanical construction make it the preferred replacement panel for SINUMERIK-controlled roll grinding machines and continuous casting equipment control stations in these environments. In water treatment infrastructure, the panel controls CNC machining of pump impellers and valve components, where high-humidity environments and chemical cleaning agents demand the same level of ingress protection that the MPP483IEH-S12 reliably provides.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every MPP483IEH-S12 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each unit undergoes a multi-point inspection including visual examination, power-on functional verification of all push buttons and indicator circuits, and continuity testing of the E-stop loop. If a warranty claim arises, TOPNLMS provides direct technical support and replacement coordination — contact [email protected] with your order reference and a description of the fault.

Q2: How do I confirm compatibility with my existing SINUMERIK system before ordering?
The MPP483IEH-S12 (6FC5303-1AF12-8AM0) is factory-designed for integration with Siemens SINUMERIK 840D sl and 828D CNC platforms using the standard 483 mm operator station form factor. To confirm compatibility with your specific machine configuration — including NCU version, MCP interface type, and cable harness — share your machine’s existing panel part number or SINUMERIK system order number with our technical team at [email protected]. We will cross-reference against Siemens compatibility matrices before confirming your order.

Q3: What is the typical lead time, and do you hold stock for urgent replacement orders?
TOPNLMS maintains warehouse stock of high-demand SINUMERIK components including the MPP483IEH-S12 to support urgent breakdown replacement scenarios. In-stock orders are typically processed and dispatched within 1–2 business days from our Xiamen facility. Express international shipping options are available for customers requiring next-flight-out delivery to minimize machine downtime. Contact +86 18359293191 for real-time stock confirmation and expedited shipping quotations.

Q4: Can this panel be used as a long-term replacement if the original is discontinued or on extended lead time from Siemens?
Yes. TOPNLMS specializes in sourcing and supplying industrial automation components — including SINUMERIK HMI and operator panel assemblies — that are on extended lead time, allocated, or approaching end-of-life status from the OEM. The MPP483IEH-S12 units we supply are genuine Siemens components, not third-party substitutes, ensuring full functional and dimensional compatibility with your existing machine tool installation. For facilities managing long-term spare parts programs, we can discuss scheduled supply agreements to guarantee availability over multi-year maintenance horizons.
