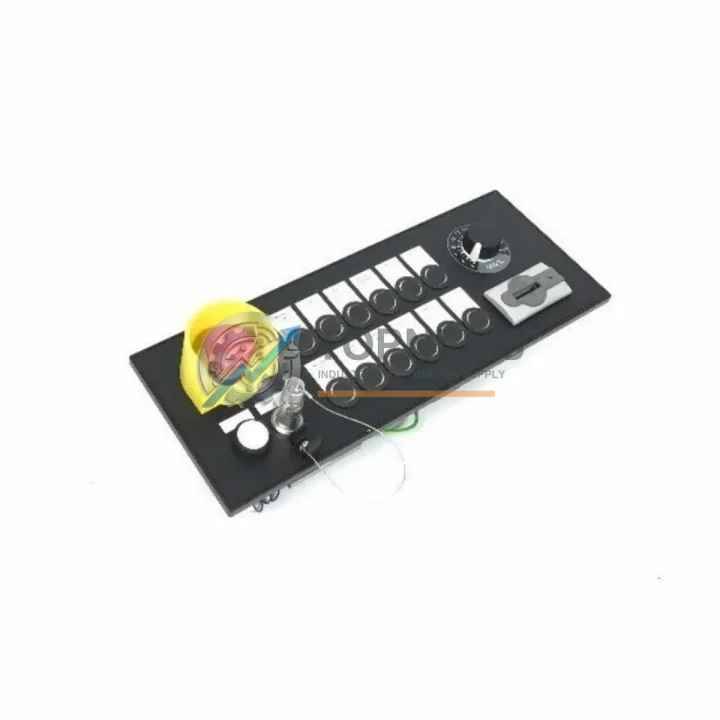

Siemens MPP1500D 6FC5303-1AF30-0AA0 Ruggedized HMI Panel: Industrial Resilience for Harsh Environments

The Siemens MPP1500D (Part No. 6FC5303-1AF30-0AA0) is a ruggedized machine push button panel engineered for the SINUMERIK CNC platform, purpose-built to deliver uncompromising reliability in the most demanding industrial environments. Whether deployed on a high-speed machining center, a heavy-duty turning line, or a multi-axis grinding system, this panel is designed to maintain stable, responsive human-machine interface (HMI) operation under continuous production pressure — including exposure to cutting fluid mist, metallic dust, mechanical vibration, and wide thermal cycling.

In modern CNC manufacturing cells, the operator panel is the critical link between the machine controller and the human operator. A failure at this interface can halt an entire production line. The MPP1500D addresses this risk with a sealed, robust enclosure construction that meets the ingress protection requirements expected of SINUMERIK-class components, ensuring that coolant splash, swarf, and airborne particulates do not compromise internal electronics or tactile button response over extended service life.

Rugged Specifications Table

Comprehensive Protection Solutions

The MPP1500D does not operate in isolation — it is a key operator interface node within a broader SINUMERIK control architecture. In a typical CNC machining cell, this panel works in concert with the Siemens SINUMERIK 840D sl NCU 720.3 numerical control unit, which handles real-time interpolation and axis control. The panel’s button signals are processed through the Siemens NCU link module and routed to the SINAMICS S120 drive system, which governs spindle and feed axis servo performance.

For I/O expansion and machine safety interlocking, the MPP1500D integrates seamlessly with Siemens ET 200SP distributed I/O modules mounted in the control cabinet, communicating over PROFINET with the NCU. Safety-critical functions — such as emergency stop validation and door interlock monitoring — are handled by the Siemens SIRIUS 3SK safety relay or the Siemens F-DI/F-DO fail-safe I/O modules within the ET 200SP family, ensuring SIL 2 / PLd compliance across the safety chain.

Power integrity for the entire operator station is maintained by the Siemens SITOP PSU100S 24V DC power supply, which provides regulated, filtered DC power to the panel and associated HMI components, suppressing voltage transients that could otherwise cause spurious button-press events or panel resets. The Siemens OP 010 operator panel or TCU 30.3 thin client unit may be co-located in the same control cabinet, sharing the same 24 V DC bus and PROFINET backbone.

For communication-intensive environments where multiple CNC cells share a plant-level SCADA or MES system, the MPP1500D’s host NCU connects via Siemens SCALANCE X208 industrial Ethernet switches, providing deterministic PROFINET communication with redundancy options. Terminal connectivity within the cabinet is standardized using Siemens SIRIUS ACT command devices and Weidmüller or Phoenix Contact terminal blocks, ensuring clean, vibration-resistant wiring that survives the mechanical stress of heavy machine tools.

Application in Critical Infrastructure

The Siemens MPP1500D 6FC5303-1AF30-0AA0 finds its most demanding deployments in sectors where unplanned downtime carries severe operational and financial consequences.

In automotive body and powertrain manufacturing, this panel is installed on transfer lines and flexible machining centers running 24/7 in three-shift operations. The combination of coolant mist, aluminum swarf, and high-frequency vibration from spindle operation creates an environment that rapidly degrades lesser operator panels. The MPP1500D’s sealed front face and robust button actuation mechanism maintain reliable operator input even after years of continuous use.

In aerospace precision machining, where titanium and Inconel components demand slow, high-torque cutting with significant vibration, the panel must remain fully functional throughout long, uninterrupted machining cycles. Any HMI fault that forces a mid-cycle stop risks scrapping high-value workpieces. The MPP1500D’s design eliminates this risk by providing stable, debounced button inputs to the SINUMERIK NCU at all times.

In oil and gas equipment manufacturing — including valve bodies, pipe fittings, and pressure vessel components — CNC machines operate in facilities where flammable vapors may be present in adjacent areas. While the MPP1500D itself is a standard industrial panel, its integration into a properly designed SINUMERIK control cabinet with appropriate zone separation and ventilation supports safe operation in these environments.

In power generation and heavy equipment manufacturing, large horizontal boring mills and vertical turning lathes use SINUMERIK 840D sl as their primary CNC platform. The MPP1500D serves as the primary operator interface for tool change commands, axis jogging, and program selection — functions that must remain available even when the machine is subjected to floor vibration from adjacent heavy presses or overhead cranes.

For metallurgical and mining equipment manufacturers, where control cabinets may be exposed to conductive dust and wide ambient temperature swings, the MPP1500D’s EMC-compliant design and sealed construction provide the margin of safety needed to maintain continuous production without unscheduled HMI replacements.
