Siemens MMC103 6FC5210-0DA20-2AA1 Ruggedized HMI Module

Product Overview

Siemens MMC103 6FC5210-0DA20-2AA1 Ruggedized HMI Module: Industrial Resilience for Harsh Environments

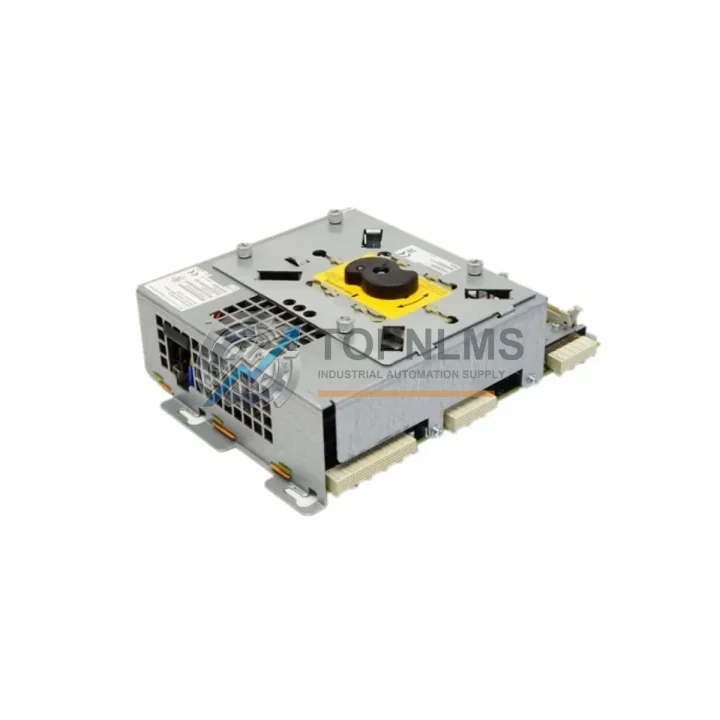

The Siemens 6FC5210-0DA20-2AA1 — commonly referenced by its module designation MMC103 — is a Man-Machine Communication control unit engineered for the SINUMERIK CNC platform. Designed and manufactured in Germany to Siemens’ exacting industrial standards, this HMI display control unit delivers stable, uninterrupted human-machine interface performance in environments where lesser components fail: high-temperature machine rooms, vibration-intensive metal-cutting floors, dust-laden fabrication halls, and facilities subject to continuous electromagnetic interference from variable-frequency drives, servo amplifiers, and high-current switching equipment.

In modern CNC machining centers, the MMC103 serves as the operator’s primary interface to the SINUMERIK 840D and 810D control architectures. It coordinates display rendering, operator input processing, and communication with the NCU (Numerical Control Unit) over the MPI/PROFIBUS backbone — ensuring that machine operators retain full, responsive control even during high-cycle production runs. Its ruggedized construction means it continues to perform reliably whether installed in a sealed control cabinet on a grinding line or mounted in an open-frame enclosure on a heavy-duty turning center.

Rugged Specifications Table

Comprehensive Protection Solutions

The Siemens 6FC5210-0DA20-2AA1 MMC103 does not operate in isolation — it is the human-facing node of a tightly integrated SINUMERIK control system. In a fully configured SINUMERIK 840D installation, the MMC103 works in concert with the NCU 572.4 or NCU 573.4 numerical control units, which handle real-time interpolation and axis control. Operator commands entered through the MMC103 are transmitted via the MPI bus to the NCU, which then coordinates motion commands across the SIMODRIVE 611D digital servo drive modules — ensuring precise, synchronized axis movement even on multi-axis machining centers running at high feed rates.

Power integrity is foundational to HMI stability. The MMC103 draws its 24 V DC supply from the Siemens SITOP PSU100S or equivalent SINUMERIK-compatible power supply unit. In facilities where mains quality is inconsistent — common in heavy stamping plants or near large induction furnaces — a SITOP UPS1600 uninterruptible power supply module provides ride-through capability, preventing mid-cycle HMI resets that could corrupt active CNC programs or trigger emergency stops on the production line.

On the I/O side, the MMC103 interfaces with SIMATIC S7-300 series I/O modules through the integrated PLC within the SINUMERIK 840D architecture. Digital input modules such as the SM 321 and digital output modules such as the SM 322 handle machine-level signals — door interlocks, coolant control, spindle enable — that the operator monitors and commands through the MMC103 display. For safety-critical functions, the system integrates Siemens SINUMERIK Safety Integrated functionality, with safe stop (STO) and safe operating stop (SOS) states managed through the drive and NCU layers, with status visible at the HMI level.

Communication beyond the machine cell is handled through PROFIBUS-DP connectivity, allowing the SINUMERIK system to exchange data with upstream SIMATIC S7-400 PLCs managing cell-level or line-level production coordination. In facilities running SIMATIC WinCC SCADA systems, the MMC103’s data can be surfaced to plant-wide dashboards, giving production managers real-time visibility into CNC status, alarm states, and cycle counts without requiring physical access to the machine control panel.

For installations requiring expanded operator interface capability, the MMC103 is often paired with Siemens OP 010 or OP 012 operator panels, which provide additional display real estate for program editing, tool management, and diagnostic screens. Replacement of a failed MMC103 in an existing SINUMERIK installation is straightforward: the module’s configuration data is retained on the NCU’s CompactFlash card, minimizing re-commissioning time and allowing maintenance teams to restore full machine functionality within a single shift.

Application in Critical Infrastructure

The Siemens 6FC5210-0DA20-2AA1 MMC103 has proven its reliability across the most demanding sectors of industrial production. In automotive manufacturing, it controls CNC machining centers producing engine blocks, transmission housings, and suspension components — environments characterized by continuous three-shift operation, aggressive coolant misting, and high ambient vibration from adjacent press lines. The MMC103’s sealed electronics and robust MPI communication maintain operator interface integrity even as surrounding equipment generates significant electromagnetic noise.

In aerospace component manufacturing, where dimensional tolerances are measured in microns and traceability is mandatory, the MMC103 provides the stable HMI platform that operators rely on for five-axis milling of titanium and aluminum structural parts. Its compatibility with SINUMERIK 840D’s advanced interpolation cycles — including CYCLE800 for swivel plane definition and CYCLE832 for high-speed surface finishing — makes it indispensable on high-value machining cells where downtime costs are measured in thousands of dollars per hour.

The oil and gas sector deploys SINUMERIK-controlled CNC equipment for precision machining of valve bodies, pipe fittings, and subsea connector components. In these facilities, the MMC103 must operate reliably in the presence of hydrocarbon vapors, elevated ambient temperatures, and the electromagnetic interference generated by large variable-speed pump drives. Its robust design and Siemens’ proven SINUMERIK platform make it a trusted choice for facilities where unplanned downtime carries both financial and safety consequences.

In power generation and heavy electrical equipment manufacturing, turbine blade machining and generator rotor turning operations depend on SINUMERIK 840D systems equipped with the MMC103 for their long-cycle, high-precision cutting programs. The ability to run complex multi-hour programs without HMI instability is a core requirement in these applications, and the MMC103’s architecture — with its dedicated processor and stable operating environment — delivers exactly that.

Metal service centers and steel mills use SINUMERIK-controlled equipment for plate cutting, roll grinding, and precision boring of mill components. The MMC103 operates in these environments alongside heavy-duty servo drives and large induction motors, where EMI levels are extreme. Its shielded design and MPI communication protocol’s inherent noise immunity ensure that operator commands are executed accurately and that alarm states are displayed without corruption.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the Siemens 6FC5210-0DA20-2AA1?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of dispatch. If the MMC103 fails to perform its specified HMI and communication functions within the warranty period, we will arrange repair, replacement, or refund at no additional cost. The warranty applies to both new and refurbished-tested units supplied by TOPNLMS.

Q2: How is the 6FC5210-0DA20-2AA1 tested before shipment?
Every unit undergoes a pre-shipment functional verification process. For refurbished units, this includes power-on testing, MPI communication verification, display output confirmation, and inspection of all connectors and board-level components. New units are verified for seal integrity and completeness. A test report is available upon request for customers requiring documentation for their quality management systems.

Q3: Is this MMC103 compatible with both SINUMERIK 840D and 810D systems?
Yes. The 6FC5210-0DA20-2AA1 MMC103 is compatible with SINUMERIK 840D and 810D control architectures. It communicates via the MPI bus and is recognized by both NCU generations. Customers upgrading from an 810D to an 840D system can retain their existing MMC103 hardware, reducing upgrade costs. If you have a specific NCU version or software release, contact us to confirm compatibility before ordering.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains stock of SINUMERIK-series HMI and control modules specifically to support facilities where legacy CNC equipment must remain operational beyond the original manufacturer’s active supply period. We offer priority dispatch for emergency replacement orders, with same-day or next-day shipping available for in-stock units. For facilities managing planned maintenance schedules, we can reserve stock against future requirements — contact our team at [email protected] or call +86 18359293191 to discuss your inventory planning needs.
