Siemens G85139-K1790-A944 Original Industrial Spare SINAMICS Compatible

Product Overview

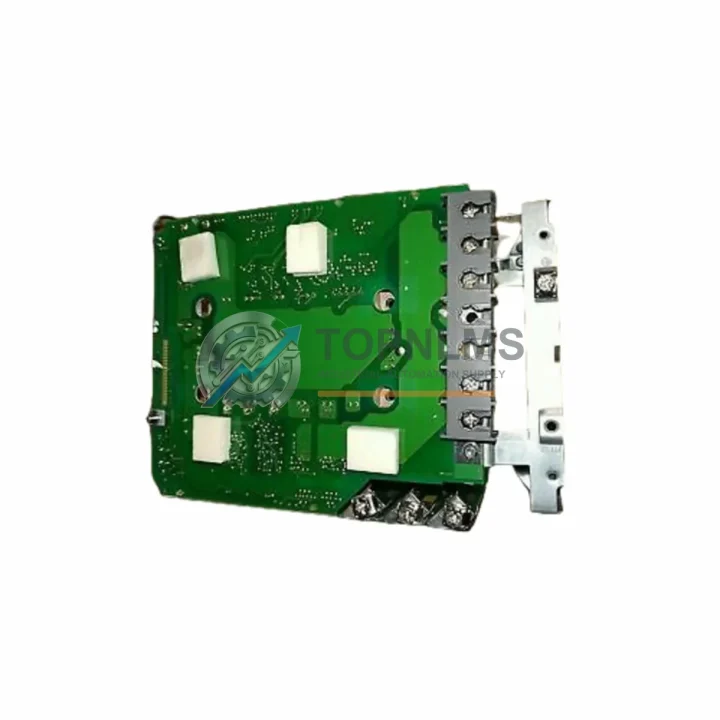

Siemens G85139-K1790-A944 ULC0132 Original Industrial Spare — SINAMICS System Stability & Maintenance Value

The Siemens G85139-K1790-A944 ULC0132 is an original drive interface board engineered for the SINAMICS variable-frequency drive platform — one of Siemens’ most widely deployed drive families across global industrial automation. As the critical communication and control bridge between the SINAMICS power unit and the higher-level control system, this interface board is a foundational spare part for any facility running SINAMICS S120, G120, or related drive series in continuous production environments.

In industrial maintenance operations, the drive interface board is typically the first component scrutinized during a drive fault or communication loss event. Its role in managing encoder feedback, setpoint transmission, and status signaling makes it indispensable to drive system integrity. Facilities that operate without a verified replacement on the shelf risk extended unplanned downtime — a cost that far exceeds the value of maintaining a single spare unit in inventory. TOPNLMS stocks the G85139-K1790-A944 ULC0132 as a ready-to-ship original spare, fully tested prior to dispatch, and backed by a 12-month quality warranty.

Critical Technical Specs Table

Preventive Maintenance Strategy

A structured preventive maintenance program for SINAMICS-based drive systems should treat the G85139-K1790-A944 ULC0132 as part of a broader spare parts ecosystem. When scheduling a planned shutdown or annual inspection of a SINAMICS S120 drive cabinet, maintenance engineers should simultaneously evaluate the condition of the SINAMICS S120 Control Unit CU320-2 DP or CU320-2 PN, which coordinates multi-axis drive operations and is equally critical to system uptime. A degraded or firmware-mismatched control unit is a common root cause of interface board communication faults that are frequently misattributed to the board itself.

Drive power supply integrity must also be verified during the same maintenance window. The Siemens SITOP PSU100S 24V DC power supply module is commonly paired with SINAMICS installations to provide stable auxiliary power to the control electronics. Voltage ripple or supply dropout events can cause intermittent interface board faults that are difficult to reproduce under bench testing, making the power supply a logical companion spare to stock alongside the G85139-K1790-A944 ULC0132.

Signal integrity between the drive and the PLC or DCS should be checked at the terminal level. The Siemens SIMATIC S7-300 SM321 digital input module and SM322 digital output module are frequently installed in the same control cabinet to handle discrete I/O from the drive system. Inspecting these modules during the same maintenance window reduces the risk of secondary faults after the interface board is replaced. Loose or oxidized terminal connections on these I/O modules are a frequent contributor to drive enable and fault signal errors.

For facilities using PROFIBUS or PROFINET communication backbones, the Siemens CP 343-1 communication processor or DP/DP Coupler should be included in the inspection checklist. Communication module degradation is a well-documented root cause of drive interface errors that appear to originate from the board itself but are actually upstream network faults. Verifying bus termination resistors and cable shielding continuity at the same time is a low-cost step that prevents repeat call-outs.

Relay output modules such as the Siemens SIMATIC S7 SM326 safety relay module are often wired into the drive’s enable and fault circuits. These should be tested for contact wear and response time during any drive-related maintenance event. Additionally, terminal blocks and wiring harnesses within the drive cabinet — particularly those connected to the interface board’s signal connectors — should be inspected for oxidation, loose crimps, or insulation degradation, as these are frequent contributors to intermittent interface faults in high-vibration or high-humidity environments. Maintaining a consolidated spare parts kit that includes the G85139-K1790-A944 ULC0132 alongside the CU320-2, SITOP power supply, SM321/SM322 I/O modules, and CP 343-1 communication processor significantly reduces mean time to repair (MTTR) and supports a proactive maintenance culture rather than a reactive one.

Strategic Replacement Solutions

The G85139-K1790-A944 ULC0132 is a direct replacement for aging or failed interface boards within the SINAMICS drive family. Many facilities operating legacy SINAMICS S120 booksize or chassis units face the challenge of sourcing original spare boards as the product lifecycle matures. TOPNLMS specializes in bridging this supply gap by maintaining verified stock of original and equivalent-specification boards that preserve full system compatibility without requiring firmware reconfiguration or hardware modification.

Replacing a failed interface board with a non-verified or counterfeit substitute introduces significant operational risk: encoder miscommunication, torque ripple, nuisance drive trips, and in worst cases, motor damage or safety system bypass. The G85139-K1790-A944 ULC0132 sourced through TOPNLMS is verified against Siemens’ original specifications, ensuring that the replacement restores the drive to its designed operating parameters immediately upon installation — with no additional commissioning overhead.

For facilities managing aging SINAMICS installations, a phased replacement strategy is recommended: identify all interface boards across the drive fleet, assess their firmware revision compatibility with the installed Control Unit, and maintain at least one verified spare per drive type. This approach eliminates the most common cause of extended downtime — waiting for a spare to arrive after a failure has already occurred. TOPNLMS supports this strategy by offering flexible procurement options, including single-unit orders for immediate replacement needs and bulk purchasing for facilities building out their spare parts inventory. All units are dispatched with full documentation and test records upon request.

Support FAQ

Q1: What warranty does the G85139-K1790-A944 ULC0132 carry?
All units sold by TOPNLMS are covered by a 12-month quality warranty from the date of shipment. If the unit fails under normal operating conditions within this period, TOPNLMS will provide a replacement or full refund. Each board is functionally tested and verified before dispatch.

Q2: How do I verify compatibility with my existing SINAMICS drive system?
The G85139-K1790-A944 ULC0132 is designed for use within the SINAMICS S120 and compatible drive platforms. To confirm compatibility, provide your drive’s full model number and firmware version to our technical team at [email protected]. We will cross-reference against our compatibility database before shipment to eliminate any installation risk.

Q3: What is the typical lead time and shipping method?
In-stock units are dispatched within 1–2 business days. International shipments are handled via DHL Express, FedEx International, or EMS, with typical delivery times of 3–7 business days depending on destination. Expedited shipping is available upon request for urgent maintenance situations.

Q4: Can this board support long-term spare inventory for an end-of-life SINAMICS system?
Yes. TOPNLMS maintains stock of legacy and current-generation SINAMICS interface boards specifically to support facilities extending the operational life of installed drive systems. We recommend purchasing at least one spare unit per drive type to eliminate sourcing delays during unplanned failures. Contact us for volume pricing and long-term supply agreements.
