Siemens FF450R12ME4_B11 Replacement for ME4 Series: Seamless Transition from Legacy IGBT Drive Systems

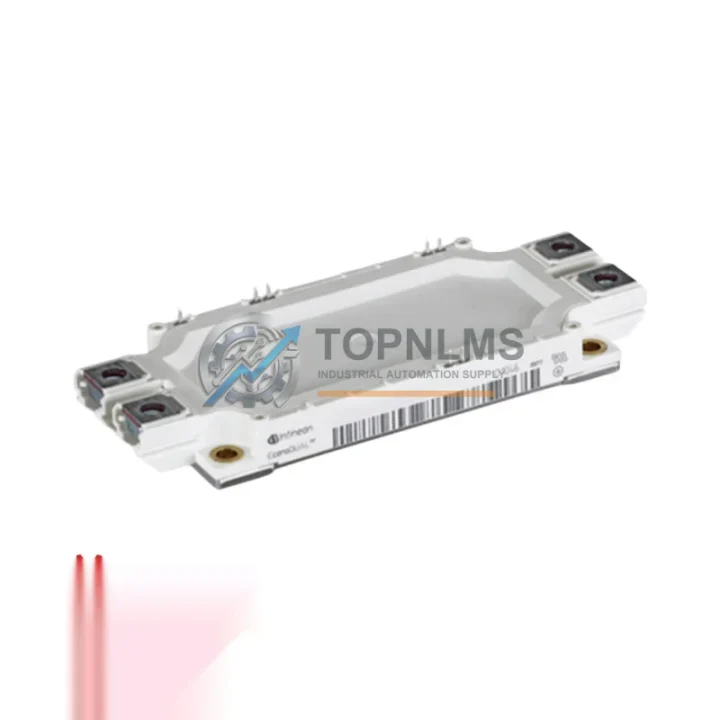

The Siemens FF450R12ME4_B11 (Siemens part number A5E03932844) is a high-performance IGBT half-bridge power module rated at 450A / 1200V, manufactured under the Eupec ME4 platform. This module is widely deployed in medium-voltage drive systems, regenerative converters, traction inverters, and industrial motor control cabinets. As legacy Eupec ME4 series modules approach end-of-life or become increasingly difficult to source, many plant engineers and procurement teams are actively seeking verified replacement and upgrade paths that minimize downtime and preserve existing system architecture.

TOPNLMS maintains ready stock of the FF450R12ME4_B11 and its compatible ME4 series equivalents, enabling fast dispatch from our Xiamen warehouse. Each unit undergoes pre-shipment functional verification and is covered by a 12-month replacement warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from an aging drive system to the FF450R12ME4_B11 rarely involves a single component swap. In practice, field engineers replacing a failed or end-of-life IGBT module in a Siemens SINAMICS S120, MASTERDRIVES MC, or SIMOVERT MASTERDRIVES cabinet will typically audit the surrounding power stack at the same time.

The DC link capacitor bank and DC bus busbars should be inspected for ESR degradation — particularly in systems that have been running for more than 8 years. The existing M8 screw terminals on the FF450R12ME4_B11 are dimensionally compatible with standard copper busbars used across the ME4 platform, so no busbar modification is required in most retrofit scenarios.

Gate driver boards are a critical compatibility checkpoint. The FF450R12ME4_B11 is validated for use with the Concept 2SD315A dual-channel IGBT driver and the SKYPER 32R gate unit, both of which are commonly found in Siemens drive cabinets of this power class. If the existing gate driver board shows signs of aging — such as drift in gate voltage output or asymmetric switching delay — replacing it alongside the IGBT module is strongly recommended to avoid nuisance trips after commissioning.

For systems migrating from an older FF400R12KE3 or FF450R12KE4 module, the baseplate footprint difference between the KE and ME series requires attention. The ME4 baseplate is slightly wider; confirm heatsink contact area and re-apply thermal compound (such as Wacker P12 or Dow Corning TC-5026) before torquing to the manufacturer-specified 6 Nm.

In multi-phase inverter topologies — such as a 3-phase 2-level VSI — you will typically be replacing three FF450R12ME4_B11 modules simultaneously (one per phase leg). Sourcing all three from the same production batch ensures matched switching characteristics and reduces the risk of phase imbalance. TOPNLMS can supply matched sets on request.

If the retrofit involves a control architecture upgrade — for example, migrating from a legacy SIMOVERT MASTERDRIVES VC to a SINAMICS S120 CU320-2 controller — the IGBT module itself remains unchanged, but the gate signal interface, fault feedback wiring, and NTC thermistor monitoring circuit must be re-mapped to the new control board. The FF450R12ME4_B11 includes an integrated NTC thermistor (KTY84-130 compatible) for temperature monitoring, which is directly supported by the SINAMICS S120 power module interface.

Additional components commonly sourced alongside this module include: Semikron SKiiP gate units for alternative driver configurations, Siemens SITOP PSU300M power supplies for control cabinet auxiliary power, PROFIBUS DP communication modules for legacy fieldbus retention, Siemens SM326 F-DI digital input modules for safety-rated I/O in the updated control rack, and Siemens ET 200SP interface modules for distributed I/O expansion in modernized panel layouts.

Retrofit Guidance FAQ

Q: Can I replace an FF450R12ME4_B11 without reprogramming the drive controller?
A: In most cases, yes. The FF450R12ME4_B11 is a power semiconductor — it does not contain firmware or configuration data. As long as the gate driver parameters (gate resistance, dead time, desaturation threshold) remain within the original design specification, no controller reprogramming is required. If you are also upgrading the gate driver board, verify the new driver’s output voltage and timing against the original drive commissioning sheet.

Q: Is the wiring harness from the old module reusable?
A: The gate signal connector and NTC thermistor connector on the ME4 series use standard 2.54 mm pitch headers. In most Siemens drive cabinets, the existing harness can be reused directly. Inspect the connector housings for heat discoloration or pin corrosion before reconnecting.

Q: What communication protocols are affected by this replacement?
A: None. The FF450R12ME4_B11 operates at the power stage level and has no embedded communication interface. PROFIBUS, PROFINET, CANopen, or Modbus RTU configurations in the drive controller are unaffected by the module swap.

Q: How do I verify the replacement module is functioning correctly before full load commissioning?
A: Perform a static gate test using a dedicated IGBT tester (e.g., Peak Atlas DCA75 or equivalent) to verify IGBT and freewheeling diode integrity. Then run the drive at no-load, monitoring gate voltage waveforms and NTC thermistor feedback before applying full motor load.

Q: What if the physical installation space in my control cabinet is constrained?
A: The ME4 baseplate dimensions (140 × 130 mm) are standard across the FF450R12ME4_B11 and its direct ME4 series siblings. If you are migrating from an ME3 series module, the footprint is slightly different — contact TOPNLMS for a dimensional drawing and adapter plate options.

Warranty Assurance

Every FF450R12ME4_B11 unit shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of shipment. Prior to dispatch, each module undergoes a pre-shipment inspection that includes visual examination for physical damage, static IGBT/diode continuity verification, and packaging integrity check to prevent transit damage.

In the event of a warranty claim, TOPNLMS will arrange a replacement unit dispatch within 3 business days of receiving the defective module and confirming the fault. Our after-sales team is reachable via email at [email protected] or by phone at +86 18359293191 for urgent procurement and technical support inquiries.

For bulk orders, project-based procurement, or matched-set requests (e.g., three units for a 3-phase inverter), please contact us directly for lead time confirmation and volume pricing. We maintain safety stock of the FF450R12ME4_B11 and can typically ship within 1–3 business days from our Xiamen facility.
