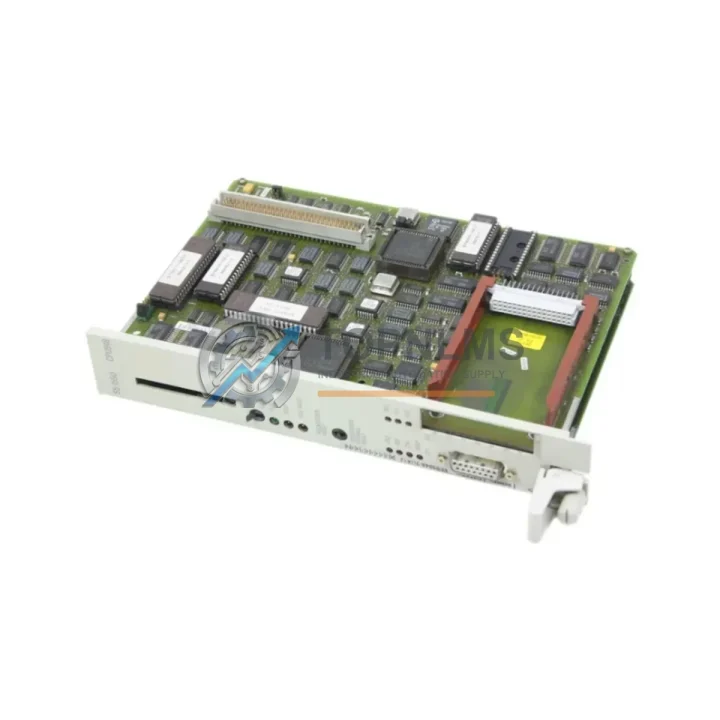

Siemens CPU948 6ES5948-3UA13 Ruggedized PLC CPU Module

Product Overview

Siemens CPU948 6ES5948-3UA13 Ruggedized PLC CPU Module for Harsh Environments

The Siemens CPU948 6ES5948-3UA13 is the highest-performance central processing unit in the SIMATIC S5-900 series, engineered to deliver continuous, reliable operation in the most demanding industrial environments. Designed for large-scale automation systems where uptime is non-negotiable, this ruggedized PLC CPU module maintains stable execution of complex ladder logic and function block programs even under conditions of extreme temperature variation, high humidity, persistent vibration, heavy dust ingress, and intense electromagnetic interference (EMI). Whether deployed in a steel mill control room, an offshore platform cabinet, a chemical processing facility, or a high-voltage power distribution substation, the CPU948 6ES5948-3UA13 is built to endure.

At the heart of the SIMATIC S5 architecture, the CPU948 interfaces directly with the S5-900 central rack, coordinating I/O expansion through the SIMATIC S5 bus backplane. Its robust metal housing and conformal-coated PCB provide a physical barrier against corrosive atmospheres and condensation — critical in environments such as water treatment plants, pulp and paper mills, and mining operations where airborne particulates and moisture are constant threats. The module’s wide operating temperature range and vibration tolerance make it equally suitable for mobile heavy equipment control panels and fixed infrastructure installations.

In continuous production environments — petrochemical refineries, automotive assembly lines, and cement manufacturing plants — the CPU948 6ES5948-3UA13 serves as the central coordinator for distributed I/O racks populated with modules such as the 6ES5482-8MA13 digital input module and the 6ES5470-8MA12 analog output module. These peripheral modules communicate with the CPU via the SIMATIC S5 parallel bus, ensuring deterministic scan cycle performance even as the I/O count scales into the hundreds of channels. The CPU’s program memory capacity supports large, structured programs with multiple organization blocks, enabling sophisticated interlocking, sequencing, and safety shutdown logic.

For facilities operating legacy SIMATIC S5 systems alongside newer infrastructure, the CPU948 6ES5948-3UA13 integrates seamlessly with the 6ES5734-3BD20 SINEC L2 communication processor, enabling peer-to-peer data exchange across PROFIBUS-DP networks. This allows the S5 system to participate in hybrid automation architectures where newer SIMATIC S7-300 or S7-400 controllers handle supervisory functions while the S5 rack continues to manage field-level I/O — a common configuration in phased modernization projects at power generation facilities and municipal water utilities. The CP module mounts in the same S5-900 central rack, requiring no additional hardware adapters.

The CPU948’s interrupt handling architecture supports both process interrupts from field devices and time-driven cyclic interrupts, making it well-suited for applications requiring precise timing — such as synchronizing conveyor drives, coordinating press cycles in stamping operations, or managing batch sequencing in pharmaceutical production. When paired with the 6ES5095-8MA02 power supply module, the entire S5-900 rack assembly maintains stable 5 VDC and 24 VDC rails even during input voltage fluctuations common in heavy industrial environments with large motor loads switching on and off.

Replacement and spare parts procurement for the CPU948 6ES5948-3UA13 is a critical concern for maintenance engineers managing aging SIMATIC S5 installations. As Siemens has officially discontinued the S5 product line, sourcing verified, tested units from a reliable supplier is essential to avoid counterfeit components that can introduce latent failures into safety-critical systems. At TOPNLMS, every CPU948 6ES5948-3UA13 unit undergoes functional verification testing prior to shipment, including program memory read/write validation, bus interface continuity checks, and power consumption measurement against factory specifications. Units are shipped in anti-static packaging with full documentation.

For control cabinets where DIN rail space is constrained, the CPU948’s standard S5 rack form factor ensures drop-in physical compatibility with existing 6ES5700-series rack assemblies. Engineers replacing a failed CPU do not need to modify cabinet layouts, rewire terminal blocks, or reconfigure the 6ES5318-8MA12 interface module connections — the replacement unit slots directly into the existing rack position. This minimizes planned maintenance windows and eliminates the risk of wiring errors during emergency replacements.

Rugged Specifications Table

Comprehensive Protection Solutions

A ruggedized SIMATIC S5 installation is only as reliable as its weakest component. When deploying or maintaining a system built around the CPU948 6ES5948-3UA13, procurement teams and maintenance engineers should consider the full ecosystem of protective and functional modules that ensure system-wide resilience. The 6ES5095-8MA02 power supply module provides regulated, filtered DC power to the entire S5-900 rack, with built-in overvoltage and short-circuit protection that shields the CPU and all peripheral modules from power quality events common in heavy industrial facilities. Alongside the power supply, the 6ES5318-8MA12 interface module manages communication between the central rack and expansion racks, maintaining data integrity across long cable runs in electrically noisy environments.

For I/O protection in high-voltage or high-current field environments, the 6ES5482-8MA13 digital input module incorporates optical isolation between field wiring and the S5 bus, preventing ground loops and transient spikes from propagating into the CPU. Similarly, the 6ES5470-8MA12 analog output module provides isolated 4–20 mA signal outputs suitable for driving control valves and variable-speed drives in process industries. In applications where signal integrity is paramount — such as temperature measurement in furnace control or pressure monitoring in hydraulic systems — signal isolators and surge protection terminal blocks mounted in the same control cabinet provide an additional layer of field-side protection.

Communication resilience is addressed through the 6ES5734-3BD20 SINEC L2 communication processor, which enables the S5 system to exchange data with SCADA systems, operator panels, and peer PLCs over PROFIBUS-DP — a protocol with inherent noise immunity suitable for long cable runs across large plant floors. For local operator interface, SIMATIC OP series HMI panels connect directly to the CPU’s programming port or via the CP module, providing real-time process visualization without requiring additional network infrastructure. Surge protection devices on all communication cable entries to the control cabinet further reduce the risk of communication failures caused by lightning strikes or switching transients.

Application in Critical Infrastructure

The Siemens CPU948 6ES5948-3UA13 has a proven deployment history across critical infrastructure sectors where control system failure carries significant safety and financial consequences. In oil and gas processing facilities, S5-900 systems equipped with the CPU948 manage wellhead control panels, pipeline valve sequencing, and emergency shutdown (ESD) logic — applications where the CPU must execute safety-critical programs reliably for years between planned maintenance intervals. The module’s robust construction and wide thermal tolerance make it suitable for installation in pressurized control rooms as well as in field junction boxes in moderate-hazard zones.

In electric power generation and transmission, CPU948-based systems have historically managed turbine governor control, transformer protection relay coordination, and substation automation — environments characterized by intense electromagnetic fields from high-voltage switching equipment. The module’s EMC immunity, combined with proper cabinet grounding and shielded cable practices, ensures stable program execution without spurious faults. Municipal water treatment and wastewater facilities rely on S5 systems for pump sequencing, chemical dosing control, and SCADA integration — applications where the CPU948’s long service life and availability of spare units from specialist suppliers like TOPNLMS directly supports regulatory compliance and continuous service obligations.

In mining and mineral processing, the CPU948 6ES5948-3UA13 controls conveyor systems, crusher drives, flotation cell agitators, and ventilation fans — equipment operating in high-dust, high-vibration environments where less robust control hardware would require frequent replacement. Metallurgical plants operating electric arc furnaces and rolling mills depend on S5 systems for coordinated drive control and process interlocking, where the CPU’s deterministic scan cycle and interrupt response time are critical to product quality and equipment protection.

Security & Quality FAQ

Q: What does the 12-month warranty cover for the CPU948 6ES5948-3UA13?
A: The 12-month warranty covers all functional defects identified during normal operation. If the unit fails due to a manufacturing or component defect within the warranty period, TOPNLMS will provide a replacement unit at no additional cost. Each unit is tested prior to shipment and ships with a test report. The warranty period begins from the date of confirmed delivery.

Q: How do you verify compatibility with my existing SIMATIC S5 rack before shipment?
A: The CPU948 6ES5948-3UA13 is physically and electrically compatible with all standard SIMATIC S5-900 central racks. Our technical team can review your existing rack configuration, firmware version requirements, and memory card specifications before shipment to confirm compatibility. Please provide your existing CPU part number and rack model when placing your order.

Q: What pre-shipment testing is performed on each unit?
A: Every CPU948 6ES5948-3UA13 unit undergoes a structured functional test protocol including power-on self-test (POST) verification, program memory read/write cycle testing, S5 bus interface signal integrity measurement, and visual inspection for physical damage. Units that do not pass all test criteria are quarantined and not shipped. Test results are available upon request.

Q: Can you guarantee long-term supply of the CPU948 6ES5948-3UA13 for ongoing maintenance contracts?
A: TOPNLMS maintains dedicated inventory of discontinued SIMATIC S5 modules specifically to support long-term maintenance contracts for industrial facilities that cannot migrate to newer platforms on short notice. We recommend customers with ongoing maintenance obligations contact us to discuss reserved stock arrangements and priority fulfillment agreements to ensure supply continuity.
