Siemens CP50M0 6DD1661-0AD0 Replacement for SIMATIC TDC

Product Overview

Siemens CP50M0 6DD1661-0AD0 Replacement for SIMATIC TDC: Seamless Migration & Smooth Transition

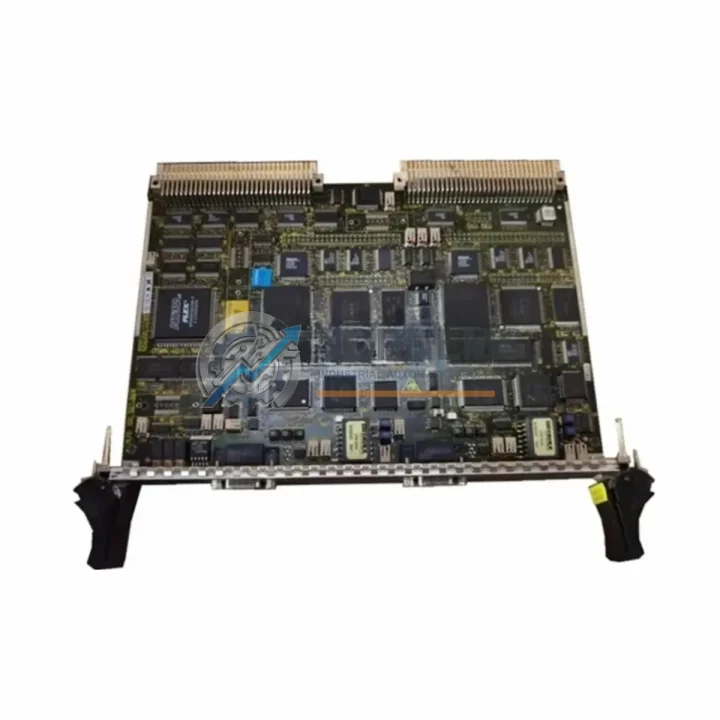

The Siemens CP50M0 (order number 6DD1661-0AD0) is a high-performance Communication Processor Module designed for the SIMATIC TDC (Technology and Drive Control) platform — one of Siemens’ most demanding closed-loop control architectures used in steel mills, rolling lines, paper machines, and heavy industrial drive systems. As legacy SIMATIC TDC installations age and original CP50M0 units reach end-of-service life, sourcing a verified replacement becomes a critical procurement priority.

TOPNLMS supplies the CP50M0 6DD1661-0AD0 as a direct replacement and upgrade solution for existing SIMATIC TDC systems. Every unit is sourced from authorized industrial channels, inspected prior to dispatch, and backed by a 12-month warranty. Whether you are managing a planned retrofit, responding to an unplanned failure, or building a strategic spare-parts inventory, this module ships from Xiamen with full documentation support.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CP50M0 replacement rarely happens in isolation. In most SIMATIC TDC retrofit projects, the communication processor works in concert with several other modules and components that may also require attention during the same maintenance window.

The CP50M0 6DD1661-0AD0 sits within a TDC rack alongside processor modules such as the PM50M0 (6DD1607-0AA0) or PM60M0 central processing units, which handle the real-time closed-loop computation. If the CP50M0 is being replaced due to a communication fault, it is prudent to simultaneously verify the health of the IM50M0 interface module that manages inter-rack communication, particularly in multi-rack TDC configurations common in large drive systems.

On the field bus side, the CP50M0 connects to PROFIBUS DP networks that typically link to Siemens ET 200M distributed I/O stations or ET 200S remote I/O racks. These stations house SM321 digital input modules, SM322 digital output modules, and SM331 / SM332 analog I/O modules — all of which should be confirmed operational when restoring communication after a CP module swap. A faulty PROFIBUS segment or a damaged PROFIBUS DP connector (6ES7972-0BA52-0XA0) can mimic CP module failure symptoms and should be ruled out before or during replacement.

For drive-integrated TDC systems — such as those embedded within Siemens SINAMICS S120 or legacy MASTERDRIVES MC drive cabinets — the CP50M0 often handles the communication bridge between the TDC controller and the drive’s CU320-2 Control Unit or older CU3x units via PROFIBUS. Ensuring the drive firmware and PROFIBUS GSD files are aligned with the replacement CP module’s firmware version is a critical commissioning step.

Power integrity within the TDC rack is supplied by the PS50M0 power supply module. If the rack has experienced a CP module failure due to overvoltage or power transient events, the PS50M0 should be inspected and replaced if necessary before inserting the new CP50M0. Similarly, the UR5209 or UR5210 rack backplane itself should be visually inspected for burn marks or connector damage.

For sites migrating from older SIMATIC S5 or early S7-400 architectures to SIMATIC TDC, the CP50M0 often serves as the PROFIBUS master that replaces legacy CP5431 FMS/DP communication processors. In such migration scenarios, existing PROFIBUS segment topology, termination resistors, and cable shielding practices must be preserved to maintain network integrity after the module swap.

Finally, for commissioning and diagnostics, a PROFIBUS DP diagnostic tool or a laptop running SIMATIC NET PC Software with a CP5711 USB adapter is recommended to verify bus address assignment, baud rate negotiation, and DP slave recognition after the CP50M0 is installed and the TDC system is restarted.

Retrofit Guidance FAQ

Q: Can I reuse existing PROFIBUS wiring when replacing the CP50M0?
A: Yes. The CP50M0 6DD1661-0AD0 uses the same DB9 PROFIBUS connector pinout as previous CP generations in the SIMATIC TDC family. Existing cable runs, termination plugs, and bus topology do not need to be modified. Verify the bus termination at both ends of the segment is active before powering up.

Q: Do I need to reload the TDC application program after swapping the CP50M0?
A: In most cases, the CFC/SFC application program stored on the PM50M0 processor module is unaffected by a CP module replacement. However, PROFIBUS DP configuration parameters (slave addresses, baud rate, GSD assignments) stored in the CP50M0 itself must be reloaded using the SIMATIC TDC Engineering tool after the new module is inserted. Always back up the existing CP configuration before removal.

Q: Is the CP50M0 compatible with both UR5209 and UR5210 racks?
A: Yes. The CP50M0 is designed for the standard SIMATIC TDC module form factor and is mechanically and electrically compatible with both UR5209 (9-slot) and UR5210 (10-slot) rack variants. No physical modification to the rack or cabinet is required.

Q: What is the PROFIBUS baud rate supported by the CP50M0 6DD1661-0AD0?
A: The CP50M0 supports standard PROFIBUS DP baud rates up to 12 Mbit/s. The baud rate is configured via the SIMATIC TDC Engineering software and must match the existing network configuration. No hardware jumper changes are required.

Q: How do I handle the physical installation in a confined control cabinet?
A: The CP50M0 occupies a single slot in the TDC rack. Removal of the old module and insertion of the replacement requires only a standard screwdriver for the front panel retaining screws. The module slides into the rack guides and seats onto the backplane connector. Ensure the rack power is de-energized before insertion. Total physical swap time is typically under 10 minutes.

Q: Can the CP50M0 be used as a spare for preventive maintenance inventory?
A: Absolutely. Given the criticality of SIMATIC TDC systems in continuous-process industries, maintaining at least one CP50M0 as a cold spare is strongly recommended. TOPNLMS can supply multiple units with staggered delivery for spare-parts inventory programs.

Warranty Assurance

Every CP50M0 6DD1661-0AD0 supplied by TOPNLMS is covered by a 12-month warranty from the date of dispatch. Prior to shipment, each unit undergoes a pre-dispatch functional inspection to verify module integrity, connector condition, and firmware version. Units are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a replacement dispatch or repair resolution within an agreed response window. Our after-sales team is reachable directly via email and phone to support fault diagnosis, commissioning questions, and return logistics. We understand that downtime in industrial environments carries significant operational cost — our procurement and logistics process is structured to minimize lead time from order confirmation to delivery.

Bulk orders and standing spare-parts agreements are available for maintenance contractors, OEM integrators, and plant engineering teams managing multiple SIMATIC TDC installations. Contact us to discuss volume pricing, consignment stock arrangements, or priority dispatch agreements.
