Siemens C98043-A7125-L100 SIMOREG DC-MASTER Replacement

Product Overview

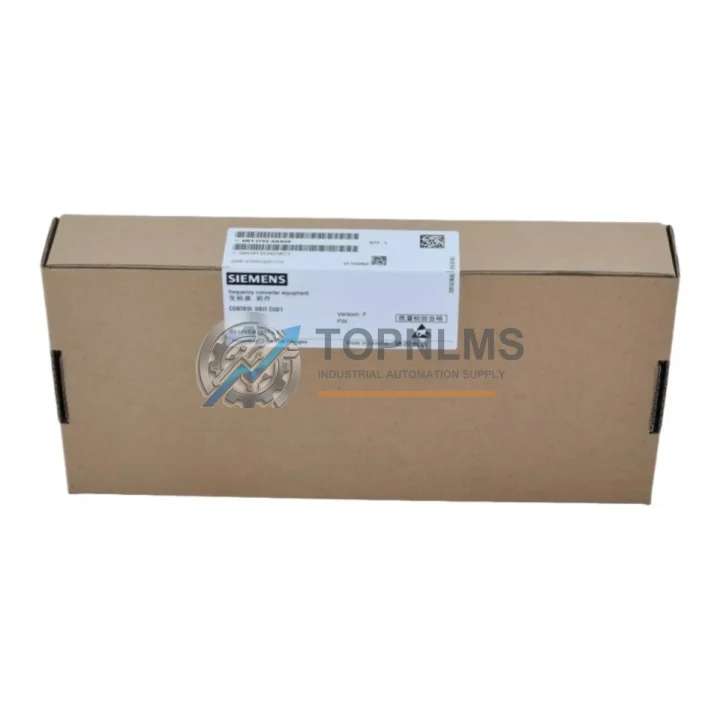

Siemens C98043-A7125-L100 6RY1803-0GA20 SIMOREG DC-MASTER Replacement: Seamless Transition from Legacy DC Drive Systems

The Siemens C98043-A7125-L100 (order number 6RY1803-0GA20) is the main control board for the SIMOREG DC-MASTER series of fully digital DC drive converters, covering the 6RA70 and 6RA24 drive families. This board governs armature current regulation, field excitation control, speed feedback processing, and serial communications — making it the functional heart of any SIMOREG-based DC drive system. When this board fails or reaches end-of-service life, the entire drive train is at risk of unplanned downtime.

At TOPNLMS, we maintain ready stock of the C98043-A7125-L100 6RY1803-0GA20 to support urgent replacement and planned retrofit projects across paper mills, steel rolling lines, extruder drives, crane hoisting systems, and other continuous-process industries that depend on SIMOREG DC-MASTER technology.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SIMOREG DC-MASTER control board replacement rarely involves the C98043-A7125-L100 in isolation. In practice, engineers migrating from a failed or obsolete drive system will also evaluate the surrounding components to ensure the entire control chain is restored to full specification.

On the communications side, many 6RA70 installations rely on the CBP2 PROFIBUS DP communication board (C98043-A7002-L2) to integrate the drive into a SIMATIC S7-300 or S7-400 PLC network. If the existing CBP2 is aged or its firmware is incompatible with the replacement CUD1 board, it should be replaced simultaneously to avoid intermittent bus faults. Similarly, sites running USS protocol over RS-485 should verify that the SCB1 serial communication board firmware version aligns with the new control board.

For field excitation, the C98043-A7002 field supply board works in tandem with the main control board to regulate motor field current. In high-cycle applications such as reversing rolling mills, this board is subject to thermal stress and is a common co-failure item. Replacing it alongside the C98043-A7125-L100 during a planned shutdown eliminates a second unplanned outage.

Wiring compatibility is typically straightforward: the X100–X177 terminal strip layout on the 6RA70 chassis is preserved across board revisions, so existing armature feedback, enable signals, and analog setpoint wiring can remain connected during the board swap. However, engineers should verify that the C98043-A7006 pulse encoder board — used when an incremental encoder replaces the analog tachometer — is correctly seated and that its HTL/TTL jumper settings match the encoder specification.

On the power supply side, the internal 24 V DC SMPS that feeds the control electronics is housed on the C98043-A7003 power supply board. A degraded power supply board can cause erratic control behavior that mimics a faulty CUD1, so it is good practice to measure its output rails before condemning the control board. If ripple or voltage sag is detected, replace the C98043-A7003 first.

For sites upgrading from a standalone SIMOREG to a networked drive architecture, the SIMATIC S7-300 CP 342-5 PROFIBUS module on the PLC side may need a firmware update to recognize the refreshed drive node after the board replacement. Coordination between the drive commissioning engineer and the PLC programmer is essential to avoid address conflicts on the DP network.

Where the legacy system used an OP1S operator panel for local speed reference and fault display, the panel connects directly to the X300 RS-232 port on the replacement board without any adapter — preserving the operator interface investment. Sites that have migrated to PC-based commissioning can use DriveMonitor or STARTER software via the same port to upload a parameter backup from the failed board (if recoverable) or to re-enter parameters from the drive’s commissioning record.

Finally, for installations where the 6RA70 drive feeds a DC motor through a C98043-A7004 snubber and thyristor firing board, it is advisable to inspect the thyristor gate pulse integrity with an oscilloscope after the control board replacement. A mismatch in firing angle calibration between the new CUD1 and an aged firing board can cause current ripple that stresses the motor commutator.

Retrofit Guidance FAQ

Q: Can I replace the C98043-A7125-L100 without re-wiring the drive cabinet?
A: Yes. The terminal strip layout (X100–X177) is mechanically and electrically identical across 6RA70 board revisions. All existing signal, feedback, and power wiring remains connected. Only the board itself is swapped.

Q: Do I need to re-enter all drive parameters after replacement?
A: If a parameter backup was saved to the OP1S panel or via DriveMonitor/STARTER before the failure, parameters can be restored in minutes. If no backup exists, parameters must be re-entered from the drive’s commissioning record or re-commissioned from scratch using the motor nameplate data.

Q: Is the PROFIBUS DP address retained after board replacement?
A: The PROFIBUS node address is stored in parameter P918 on the CUD1 board. After replacement, P918 must be set to the correct address before connecting the drive to the DP network to avoid bus conflicts.

Q: Will the replacement board work with my existing analog tachometer?
A: Yes. The C98043-A7125-L100 supports analog tachometer feedback (0–270 V DC) on terminals X174:1/2. No hardware modification is required. If upgrading to an incremental encoder simultaneously, the C98043-A7006 pulse encoder board must be installed.

Q: What is the physical installation time for a board swap?
A: With a parameter backup available and a trained drive engineer on site, a board swap typically takes 1–2 hours including functional verification. Without a backup, allow 4–8 hours for full recommissioning.

Q: Can this board be used in a 6RA24 drive?
A: No. The C98043-A7125-L100 is designed for the 6RA70 chassis. The 6RA24 uses a different backplane and control architecture. For 6RA24 replacements, a separate board part number is required.

Q: What communication protocols does the replacement board support natively?
A: The CUD1 board supports USS protocol (RS-485) natively. PROFIBUS DP requires the optional CBP2 communication board (C98043-A7002-L2) installed in the option slot.

Warranty Assurance

Every C98043-A7125-L100 6RY1803-0GA20 shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes a functional pre-shipment inspection that verifies power-on self-test completion, communication port integrity, and absence of physical damage or counterfeit markings.

If a board is found to be defective on arrival (DOA) or fails within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement unit or issue a full refund — whichever the customer prefers. Our after-sales response target is within 24 hours of a warranty claim submission.

We ship from Xiamen, China, with DHL Express, FedEx International Priority, and UPI available for urgent orders. Standard lead time for in-stock items is 3–5 business days to most destinations. Export documentation including commercial invoice, packing list, and certificate of origin is provided with every shipment to facilitate customs clearance.

For procurement teams requiring traceability, we can provide batch records and inspection reports on request. Volume orders (5+ units) are eligible for negotiated pricing and priority allocation from our bonded warehouse stock.

Contact our technical sales team before ordering if you need assistance confirming compatibility with your specific 6RA70 drive variant, firmware version, or system architecture.
