Siemens C98043-A7117-L1 6RY1803-0CM01 Ruggedized DC Drive Power Supply Module

Product Overview

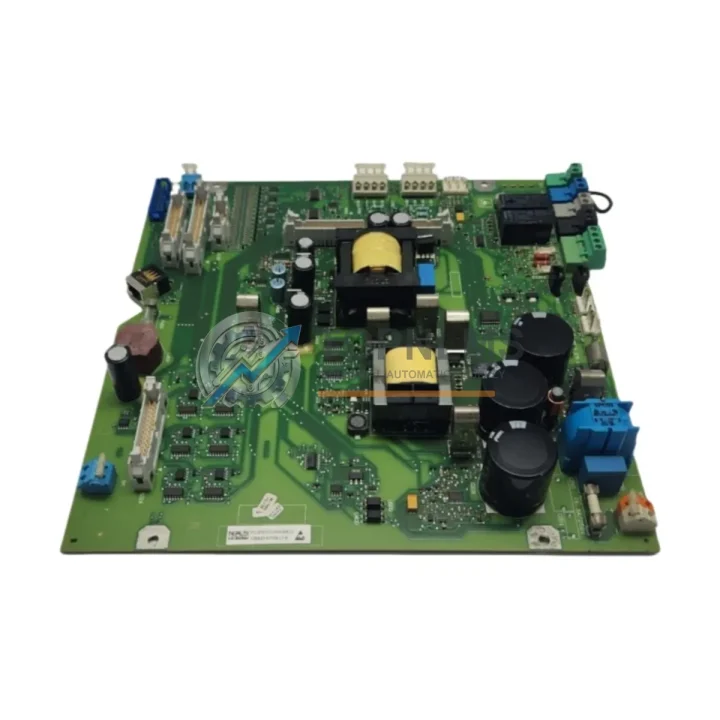

Siemens C98043-A7117-L1 6RY1803-0CM01 Ruggedized DC Drive Power Supply Module for Harsh Industrial Environments

The Siemens C98043-A7117-L1 (6RY1803-0CM01) is a precision-engineered DC drive power supply board designed for the SIMOREG DC Master 6RA70 series — one of Siemens’ most trusted platforms for high-performance DC motor control in demanding industrial applications. Built to operate reliably under extreme thermal stress, high-humidity conditions, heavy vibration, and intense electromagnetic interference, this module is the backbone of continuous-duty drive systems where unplanned downtime is simply not an option.

In heavy industrial environments — from steel rolling mills and mining hoists to paper machine drives and chemical processing lines — the power supply board is the most critical single point of reliability in the entire drive stack. The C98043-A7117-L1 delivers stable, regulated DC bus power to the SIMOREG 6RA70 control electronics, ensuring that the firing pulse generation, current regulation loops, and field excitation circuits all receive clean, conditioned power regardless of upstream grid disturbances or load transients on the production floor.

This board is engineered to withstand the rigors of 24/7 continuous operation. Its robust component selection — including industrial-grade capacitors, conformal-coated PCB traces, and thermally stable voltage references — ensures consistent performance across a wide ambient temperature range. Whether installed in a climate-controlled control room or a dusty, vibration-prone drive cabinet on a mining conveyor, the C98043-A7117-L1 maintains the electrical integrity that the SIMOREG 6RA70 platform demands.

Rugged Specifications Table

Comprehensive Protection Solutions

The C98043-A7117-L1 does not operate in isolation — it is one component in a tightly integrated drive and control architecture. In a typical SIMOREG 6RA70 installation, this power supply board works in concert with the C98043-A7110-L1 (6RY1803-0CA01) firing pulse board, which generates the precise thyristor gate signals that control armature current. The C98043-A7112-L1 (6RY1803-0CC01) current sensing board feeds real-time current feedback into the regulation loop, while the C98043-A7100-L1 (6RY1803-0AA01) main control board (CUD) executes the speed and torque algorithms that define drive performance.

For field excitation control, the companion C98043-A7111-L1 (6RY1803-0CB01) field supply board works alongside this power supply module to maintain stable motor field current — critical for maintaining constant flux in applications with wide speed ranges. In installations where the SIMOREG 6RA70 communicates with a Siemens S7-300 or S7-400 PLC via PROFIBUS-DP, the CBP2 (6SE7090-0XX84-0FF5) communication board relies on the stable 5 V and 15 V rails delivered by the C98043-A7117-L1 to maintain uninterrupted fieldbus communication.

At the cabinet level, Siemens SITOP PSU100S 24 V DC power supplies typically provide auxiliary power to the PLC I/O racks, safety relays, and HMI panels mounted alongside the SIMOREG drive. SIRIUS 3RV2 motor protection circuit breakers and 3RT2 contactors protect the upstream transformer and motor connections, while SIMATIC ET 200SP distributed I/O modules handle field sensor and actuator signals. In safety-critical zones, SIRIUS 3SK1 safety relay modules provide SIL 2-rated emergency stop and safety gate monitoring, ensuring that a drive fault does not cascade into a personnel safety incident. The integrity of all these subsystems ultimately depends on the stable, noise-free power rails that the C98043-A7117-L1 delivers to the SIMOREG control electronics.

Application in Critical Infrastructure

The SIMOREG 6RA70 platform — and by extension the C98043-A7117-L1 power supply board — is deployed across the most demanding sectors of global heavy industry. In steel and metals processing, SIMOREG drives control rolling mill main drives, coiler/uncoiler drives, and leveler drives where precise torque control and rapid current response are essential for product quality and equipment protection. A failed power supply board in this context can halt an entire hot strip mill, with downtime costs measured in tens of thousands of dollars per hour.

In mining and mineral processing, SIMOREG 6RA70 drives power hoist motors, conveyor belt drives, and crusher main drives in environments characterized by extreme dust loading, high vibration, and wide ambient temperature swings. The conformal-coated PCB of the C98043-A7117-L1 provides essential protection against conductive dust ingress that would otherwise cause tracking faults on unprotected boards.

In oil and gas upstream and midstream facilities, DC drives based on the SIMOREG platform control pump jacks, compressor auxiliaries, and pipeline booster stations. These installations often operate in classified hazardous areas (Zone 2 / Division 2), where the drive cabinet must maintain full electrical integrity to prevent ignition risks. The stable power rails from the C98043-A7117-L1 ensure that safety shutdown circuits and fieldbus communications remain operational even during grid disturbances.

Water and wastewater treatment plants rely on SIMOREG drives for large pump and blower applications where continuous operation is mandated by environmental compliance requirements. Pulp and paper mills use these drives on winder, rewinder, and section drive applications where web tension control demands sub-millisecond current regulation response — impossible without a stable, low-ripple internal power supply. In all these sectors, maintaining a verified spare C98043-A7117-L1 in the plant storeroom is standard practice for any reliability-focused maintenance program.

Security & Quality FAQ

Q1: What warranty coverage is provided with the C98043-A7117-L1 6RY1803-0CM01?
All units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers functional failure under normal operating conditions. Each board undergoes functional power-on testing and visual inspection before dispatch. Warranty claims are supported by our technical team with replacement or repair at no additional cost.

Q2: How is each unit tested before shipment?
Every C98043-A7117-L1 board is subjected to a multi-stage pre-shipment inspection: visual inspection for component damage, solder joint integrity, and PCB condition; powered bench testing to verify all output voltage rails (±15 V, +5 V, +24 V) are within specification; and functional compatibility verification against SIMOREG 6RA70 reference documentation. A test report is available upon request for critical infrastructure procurement.

Q3: Is this board compatible with all variants of the SIMOREG 6RA70 series?
The C98043-A7117-L1 (6RY1803-0CM01) is compatible with the full SIMOREG DC Master 6RA70 range, covering frame sizes 6RA7013 through 6RA7095 across all current ratings. It is also cross-compatible with select SIMOREG 6RA24 and 6RA26 legacy platforms where the internal power supply architecture is equivalent — please confirm your drive’s full type designation with our technical team before ordering if you are replacing a board in an older drive generation.

Q4: Can TOPNLMS support long-term and repeat supply of this spare part?
Yes. TOPNLMS maintains dedicated stock of SIMOREG 6RA70 spare boards including the C98043-A7117-L1, C98043-A7110-L1, C98043-A7112-L1, and C98043-A7100-L1 to support planned maintenance programs and emergency breakdown requirements. We offer framework supply agreements for industrial customers requiring guaranteed availability, priority dispatch, and consolidated invoicing across multiple SKUs. Contact our team to discuss your plant’s spare parts strategy.
