Siemens C98043-A7100-L204CUD Original Industrial Spare SIMOREG Compatible: System Stability and Industrial Spare Parts Maintenance Value

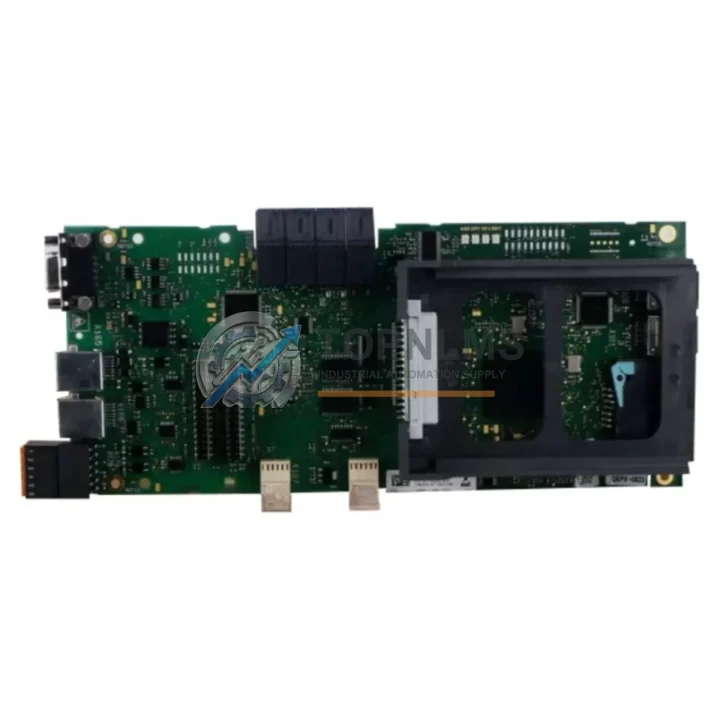

The Siemens C98043-A7100-L204CUD (also referenced as 6RY1803-0AA25-0AA1) is the Central Unit Drive (CUD) control board at the heart of the SIMOREG DC Master series of DC drive converters. In industrial environments where DC motor drives govern critical production lines — rolling mills, paper machines, extruders, hoists, and winding systems — this board is the intelligence layer that manages speed regulation, current control, field weakening, and closed-loop feedback. When this board fails, the entire drive is rendered inoperative, and unplanned downtime costs mount rapidly. Sourcing a verified original replacement is the fastest path back to full production.

At TOPNLMS, every C98043-A7100-L204CUD unit is sourced from authorized supply channels, inspected against Siemens factory specifications, and dispatched with a 12-month quality warranty. Each board undergoes functional verification prior to shipment, ensuring that what arrives on your maintenance bench is ready to install — not a source of further troubleshooting.

Critical Technical Specs Table

Preventive Maintenance Strategy

A CUD control board failure rarely occurs in isolation. In a SIMOREG DC Master drive cabinet, the control board interfaces with multiple subsystems simultaneously — power electronics, feedback encoders, field supply circuits, and communication networks. A disciplined preventive maintenance strategy treats the C98043-A7100-L204CUD replacement as the trigger for a broader cabinet inspection, not just a board swap.

When replacing the CUD board, maintenance engineers should simultaneously inspect the SIMOREG DC Master power interface board (C98043-A7100-L1) for signs of capacitor aging or relay contact wear. The field supply module (C98043-A7002 series) should be checked for output voltage stability, as a degraded field supply can cause the new CUD board to log spurious faults within days of installation. If the drive uses encoder-based speed feedback, the pulse encoder evaluation board (C98043-A7100-L2) should be inspected for connector corrosion and signal integrity.

On the power supply side, the 24 VDC auxiliary power supply module feeding the control section is a common wear item in drives that have operated for more than five years. Replacing it alongside the CUD board eliminates a frequent root cause of repeat failures. Similarly, the fan assembly within the drive enclosure should be tested for airflow adequacy — thermal stress is a leading cause of control board degradation in DC drives operating in high-ambient environments.

For drives integrated into PROFIBUS DP networks, the CBP2 communication board (6GK1500-0FC10) should be inspected and its firmware version verified for compatibility with the replacement CUD board. Mismatched firmware between the CBP2 and CUD is a known source of communication faults post-replacement. If the drive cabinet includes terminal blocks and wiring harnesses connecting the CUD board to external I/O — analog setpoint inputs, digital enable signals, fault relay outputs — these should be inspected for insulation degradation and terminal torque compliance.

Facilities managing multiple SIMOREG DC Master drives should also maintain a buffer stock of SIMOREG fuse modules and surge protection components for the DC bus. A single upstream fuse failure can subject the CUD board to transient overvoltages that cause latent damage not immediately visible during post-replacement commissioning. Proactive fuse inventory management is a low-cost insurance policy against repeat board failures.

Finally, if the drive is part of a legacy system where the operator panel (OP1S) or a connected SIMATIC HMI is used for parameter management, verify that the parameter set (P-list) is backed up before the CUD board is removed. The replacement board ships without customer-specific parameters, and a complete, verified parameter backup is essential for rapid recommissioning.

Strategic Replacement Solutions

The SIMOREG DC Master platform has been in service in industrial facilities worldwide for over two decades. Many installations running 6RA70-series drives are operating well beyond their original design lifecycle, yet the mechanical and electrical infrastructure surrounding these drives — motors, gearboxes, transformers, and switchgear — remains fully serviceable. In this context, replacing the C98043-A7100-L204CUD control board is a strategically sound alternative to full drive replacement, delivering a fraction of the capital cost while restoring full drive functionality.

For maintenance teams managing older 6RA24-series SIMOREG drives, the CUD board upgrade path offers an opportunity to introduce modern closed-loop control algorithms and improved diagnostic capabilities without modifying the power section or motor cabling. This approach is particularly valuable in facilities where motor rewinding or cable replacement would require extended production shutdowns.

TOPNLMS maintains stock of the C98043-A7100-L204CUD to support rapid dispatch for emergency breakdown scenarios. Standard lead time from order confirmation to shipment is 1–3 business days for in-stock units, with express logistics options available for critical downtime situations. All units are packed in anti-static, shock-protected packaging appropriate for sensitive electronic assemblies.

For facilities implementing a planned maintenance cycle, purchasing a spare C98043-A7100-L204CUD board as a shelf spare eliminates the sourcing lead time entirely during an unplanned failure event. Given the criticality of DC drive systems in continuous-process industries, the cost of maintaining one spare board is typically recovered within the first hour of avoided downtime.
