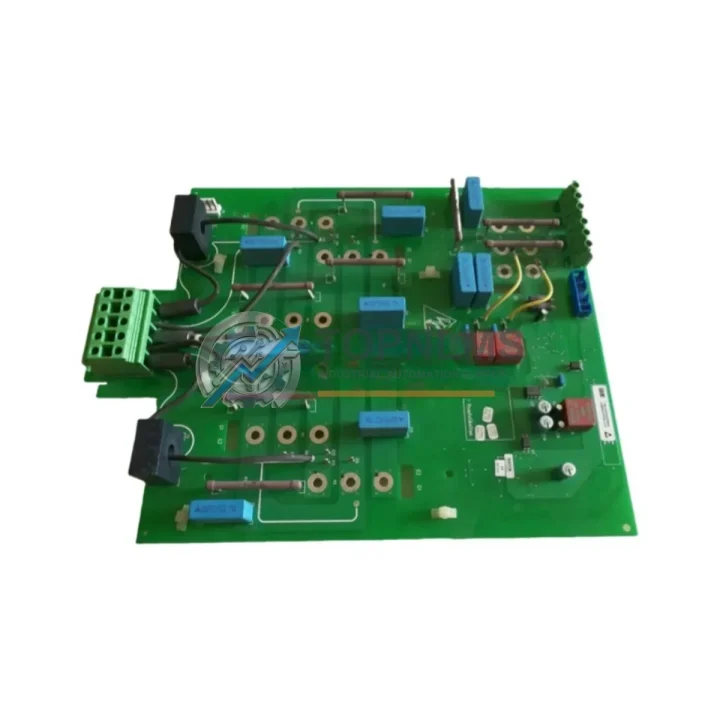

Siemens C98043-A7010-L2 6RY1703-0CA04 Original Industrial Spare SIMOREG Compatible

Product Overview

Siemens C98043-A7010-L2 6RY1703-0CA04 Original Industrial Spare SIMOREG Compatible: Ensuring System Stability in DC Drive Maintenance

In industrial facilities where DC drive systems form the backbone of production lines, the reliability of every internal board directly determines uptime. The Siemens C98043-A7010-L2 / 6RY1703-0CA04 is the original power supply board engineered for the SIMOREG DC Master series — one of Siemens’ most widely deployed DC converter platforms across steel mills, paper plants, mining operations, and heavy manufacturing environments worldwide. Sourced as a genuine original spare, this board is a critical asset for any maintenance team responsible for keeping SIMOREG-based drive cabinets operational.

When a SIMOREG DC Master unit enters an unplanned shutdown, the power supply board is among the first components to be evaluated. Voltage irregularities, internal fuse failures, or aging capacitors on the supply board can cascade into full drive faults, triggering costly production halts. Having a verified, tested replacement unit of the C98043-A7010-L2 on the shelf is the single most effective way to compress mean time to repair (MTTR) from days to hours.

Critical Technical Specs Table

Preventive Maintenance Strategy

A SIMOREG DC Master drive cabinet is a system — and the power supply board does not operate in isolation. During any scheduled maintenance window or unplanned repair involving the C98043-A7010-L2, experienced maintenance engineers know that adjacent components should be inspected simultaneously to prevent repeat failures and maximize the value of each downtime event.

When replacing or inspecting the power supply board, the SIMOREG DC Master CUD1 control board (e.g., C98043-A7002-L1 series) should be evaluated in parallel — it is the intelligence layer of the drive and shares the internal supply rails provided by this board. A degraded CUD1 can mask or mimic power supply faults, making concurrent inspection essential. Similarly, the firing pulse board (C98043-A7004 series) and interface board (C98043-A7006 series) are directly powered through the same internal bus and should be checked for signs of thermal stress or connector oxidation.

On the incoming power side, the line reactor and input fuse assembly (appropriate for the 6RA70 frame size in use) should be verified for continuity and rated capacity. Blown or weakened fuses are a common upstream cause of power supply board stress. The DC bus capacitor bank within the drive should also be assessed for capacitance drift, particularly in drives that have been in service for more than five years.

For facilities running multiple SIMOREG units in a coordinated drive system, the PROFIBUS DP communication module (such as the CBP2 board) and encoder feedback module (SBP or SBR2) are worth inspecting during the same maintenance cycle — communication faults and encoder signal loss are frequently misdiagnosed as power supply issues. Checking the 24V DC external power supply feeding the control section, as well as the terminal block wiring on the X100/X101 connector strips, can prevent nuisance faults after board replacement.

Finally, if the drive cabinet includes a Siemens SIMATIC S7 PLC or OP/TP HMI panel for supervisory control, a brief functional check of the PLC I/O modules and HMI communication link during the same maintenance window ensures the entire control loop is validated before returning the system to production.

Strategic Replacement Solutions

The SIMOREG DC Master platform has been in active industrial service for decades, and many facilities continue to operate 6RA70-series drives as the core of their DC motor control infrastructure. Siemens has transitioned newer projects to the SINAMICS DCM platform, but the installed base of SIMOREG units remains enormous — and the business case for maintaining these systems with original spare boards is compelling.

Replacing the C98043-A7010-L2 with a genuine original board — rather than attempting a repair of the failed unit — eliminates the risk of latent faults, restores full factory-specified performance, and resets the component’s service life. For facilities managing aging SIMOREG fleets, stocking one or two power supply boards per drive frame size is a recognized best practice that directly reduces exposure to extended unplanned downtime.

This board is fully compatible with the original SIMOREG DC Master mechanical and electrical interface — no firmware changes, parameter re-entry beyond standard commissioning steps, or hardware modifications are required. The plug-in connector design allows a trained technician to complete the physical swap in under 30 minutes, making it one of the most time-efficient repairs available for this drive platform.

For facilities transitioning toward SINAMICS DCM, the SIMOREG power supply board also serves as a bridge component — keeping legacy drives operational during phased migration programs, avoiding the capital expenditure of full drive replacement until the migration schedule permits.

Support FAQ

Q1: Is this board compatible with all SIMOREG DC Master 6RA70 variants?
The C98043-A7010-L2 / 6RY1703-0CA04 is designed for the SIMOREG DC Master 6RA70 series. Compatibility should be verified against your specific drive’s nameplate and existing board part number before ordering. Our team can assist with cross-referencing your drive’s serial number and existing board markings to confirm fitment.

Q2: What pre-shipment testing is performed?
Every unit undergoes a functional power-on test prior to dispatch. Output voltages are verified against specification, and the board is inspected for physical integrity. A test report is available upon request for quality-critical applications.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside specified environmental parameters. Warranty claims are processed promptly with replacement or repair as appropriate.

Q4: How should I manage spare board inventory for a multi-drive facility?
For facilities operating three or more SIMOREG DC Master units of the same frame size, maintaining at least one power supply board in local stock is recommended. Given typical lead times for industrial spare parts, a stocked spare eliminates the gap between fault occurrence and repair completion. For critical production lines with zero-tolerance for downtime, a two-board buffer per frame size is advisable. Contact us for volume pricing on multi-unit spare packages.
