Siemens C98043-A7007-L1 Upgrade Solution for SIMOREG

Product Overview

Siemens C98043-A7007-L1 Upgrade Solution for SIMOREG: Seamless Transition from Legacy DC Drive Systems

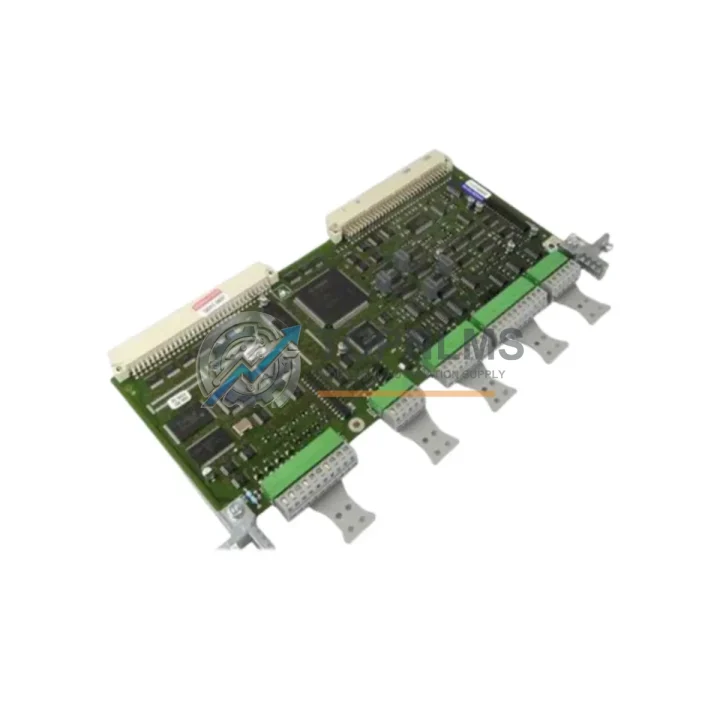

The Siemens C98043-A7007-L1 (cross-reference: 6RY1703-0FA01) is a core control board within the SIMOREG DC Master series — one of Siemens’ most widely deployed DC drive platforms in heavy industrial environments including steel mills, paper machines, extruders, winding systems, and crane drives. As legacy SIMOREG DC Master cabinets age and original control boards reach end-of-life or become discontinued, sourcing a verified replacement or upgrade-compatible unit is critical to maintaining production continuity.

TOPNLMS specializes in supplying tested, ready-to-ship SIMOREG control boards with full retrofit documentation support. Whether you are replacing a failed C98043-A7007-L1 in an existing 6RA70 series DC drive cabinet or planning a phased modernization of your DC motor control architecture, this board provides a direct-fit solution with minimal downtime risk.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SIMOREG DC Master retrofit rarely involves a single component. In most field scenarios, the C98043-A7007-L1 control board is part of a broader drive system that includes several interdependent modules. When upgrading or replacing this board, engineers should assess the condition and compatibility of the surrounding hardware.

The SIMOREG 6RA7085 and 6RA7090 converter units are the most common host chassis for this control board. If the power section of the converter is still functional, replacing only the C98043-A7007-L1 control board is the most cost-effective path. However, if the power electronics have also degraded, a full converter replacement may be warranted.

Communication continuity is a key concern during any DC drive modernization. Many SIMOREG installations rely on the CBP2 PROFIBUS communication board (order reference C98043-A7100-L2) to interface with a Siemens S7-300 or S7-400 PLC via PROFIBUS DP. This board plugs into the option slot on the SIMOREG control board and must be verified for compatibility when swapping the C98043-A7007-L1. In USS-based systems, the serial interface is handled natively by the control board itself, requiring no additional communication module.

For field parameter backup and restoration, the MMC memory card used with SIMOREG drives stores all drive parameters and can be transferred directly to the replacement board, significantly reducing commissioning time. Engineers should also have the PC adapter USB A2 or equivalent DriveMonitor-compatible cable on hand to verify parameter sets and perform test runs after board replacement.

In installations where the SIMOREG DC Master feeds a separately excited DC motor, the field supply module (often integrated within the 6RA70 unit or supplied as a separate C98043-series field board) should be inspected alongside the armature control board. A degraded field board can cause erratic speed control even after the armature control board is replaced.

For systems migrating from older SIMOREG 6RA24 or 6RA26 series drives to the 6RA70 platform, the C98043-A7007-L1 represents a significant functional upgrade. The 6RA70 platform offers superior diagnostic capability, integrated PI controllers, and expanded I/O — but the migration requires new wiring harnesses and updated PLC function blocks. TOPNLMS can advise on wiring adaptation requirements for these cross-generation upgrades.

Where the SIMOREG drive interfaces with a Siemens OP7 or OP17 operator panel for local speed reference and fault display, these HMI units typically connect via the drive’s RS-232/RS-485 port and remain fully compatible with the replacement control board. No HMI reconfiguration is required in standard setups.

Finally, in multi-drive systems where several SIMOREG units share a common DC bus or are coordinated via a Siemens SIMATIC S7-400H redundant controller, the replacement of a single control board should be validated against the master drive coordination logic to ensure speed reference and torque limit signals are correctly re-established after commissioning.

Retrofit Guidance FAQ

Q: Can I replace the C98043-A7007-L1 without rewiring the drive cabinet?
A: Yes, in standard SIMOREG 6RA70 installations. The C98043-A7007-L1 uses the same backplane connector layout as the original board. No rewiring of power terminals, feedback signals, or I/O wiring is required for a direct board swap. Only the control board itself is removed and replaced.

Q: Do I need to re-enter all drive parameters after replacement?
A: If you have a backup MMC card or a DriveMonitor parameter file (.par), parameters can be restored in minutes. If no backup exists, parameters must be re-entered manually based on the motor nameplate data and application settings. TOPNLMS recommends always maintaining a parameter backup before any board replacement.

Q: Is PROFIBUS DP communication affected by the board swap?
A: The PROFIBUS interface is handled by the optional CBP2 communication board, which is separate from the C98043-A7007-L1 control board. The CBP2 board is retained during the swap and reconnected to the new control board. PROFIBUS node address and telegram configuration remain unchanged.

Q: What is the physical installation space requirement?
A: The C98043-A7007-L1 is a slide-in card designed for the standard SIMOREG 6RA70 chassis. No additional panel space or mounting hardware is required. The board slides into the existing card guide and connects via the backplane — the entire swap can typically be completed in under 30 minutes by a qualified drive technician.

Q: Can this board be used to upgrade from an older SIMOREG revision?
A: Yes, with verification. The C98043-A7007-L1 is compatible with the SIMOREG DC Master 6RA70 platform. If upgrading from an earlier 6RA24 or 6RA26 series, a full drive replacement is required rather than a board swap, as the hardware architecture differs significantly. Contact TOPNLMS for cross-generation migration guidance.

Q: What commissioning steps are required after installation?
A: After installing the replacement board, perform the following: (1) Restore parameters from backup or re-enter manually; (2) Verify motor identification routine (P051 = 25 for automatic motor data identification); (3) Check speed feedback signal from tachometer or encoder; (4) Confirm field current regulation; (5) Run a no-load test before reconnecting the mechanical load.

Warranty Assurance

Every Siemens C98043-A7007-L1 / 6RY1703-0FA01 control board supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection process includes functional verification, visual inspection for component damage, and firmware version confirmation. Units are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team is available to assist with installation verification, parameter restoration guidance, and fault diagnosis. Response time for warranty inquiries is within 24 hours on business days.

We ship from Xiamen, China, with DHL Express, FedEx International Priority, and UCP available as shipping options. Most orders are dispatched within 1–3 business days of payment confirmation. Expedited same-day dispatch is available for urgent breakdown situations — contact us directly to arrange.

TOPNLMS maintains stock of SIMOREG DC Master components including control boards, communication modules, and field supply boards to support rapid response for production-critical breakdowns. All units are sourced from verified supply channels and carry full traceability documentation.
