Siemens C98043-A7002-L4-12 Ruggedized Thyristor Firing Control Module

Product Overview

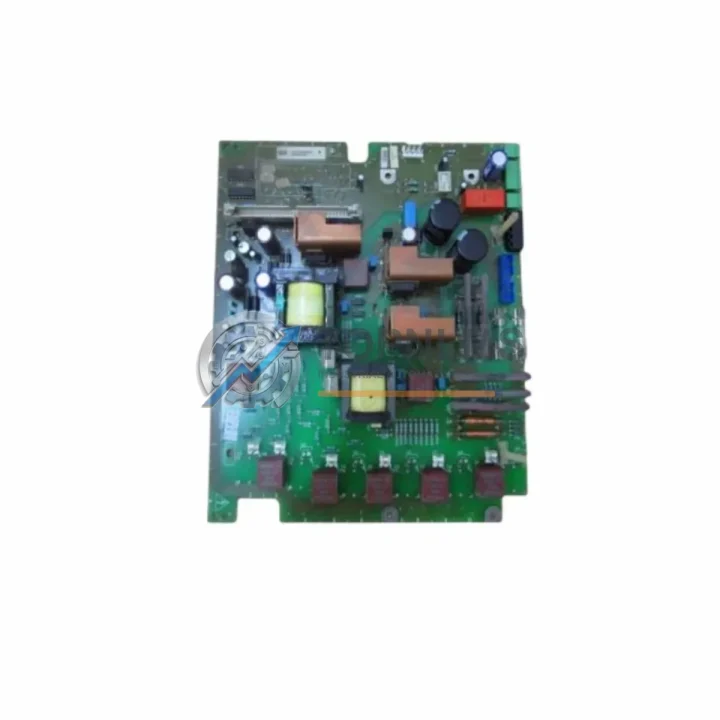

Siemens C98043-A7002-L4-12 Ruggedized Thyristor Firing Control Module for Harsh Industrial Environments

The Siemens C98043-A7002-L4-12 is a precision-engineered thyristor firing control board designed for the SIMOREG DC Master drive family, including the widely deployed 6RA70 and 6RA24 series. Built to Siemens’ exacting industrial standards, this board governs the gate-pulse generation and phase-angle control that regulates DC motor armature current in high-demand production environments. Its robust design makes it a trusted backbone component in continuous-process industries where unplanned downtime carries severe operational and financial consequences.

In facilities where ambient temperatures fluctuate between sub-zero cold stores and high-heat furnace areas, where humidity condenses on control-cabinet walls, and where airborne particulates from grinding, welding, or cement production settle on every exposed surface, the C98043-A7002-L4-12 maintains stable firing-angle accuracy. Siemens’ conformal-coating process on critical PCB traces provides a first line of defence against moisture ingress and corrosive atmospheres, while the board’s EMC-hardened signal paths resist the electromagnetic interference generated by large variable-frequency drives, high-current bus bars, and nearby arc-welding equipment sharing the same control cabinet.

Vibration and mechanical shock are constant threats in mining headframes, steel-rolling mills, and offshore platform motor rooms. The C98043-A7002-L4-12’s through-hole and surface-mount components are selected and soldered to withstand the continuous micro-vibration profiles typical of these sites, preventing the solder-joint fatigue that prematurely fails lesser boards. When installed in a properly grounded SIMOREG 6RA70 drive cabinet alongside the companion C98043-A7001 main control board and the C98043-A7100 interface board, the complete firing-control assembly delivers the deterministic pulse timing that high-power DC drives demand.

Rugged Specifications Table

Comprehensive Protection Solutions

A thyristor firing board does not operate in isolation — its reliability is only as strong as the system surrounding it. In a fully configured SIMOREG DC Master 6RA70 cabinet, the C98043-A7002-L4-12 works in concert with the C98043-A7001 main control board, which handles speed-loop and current-loop regulation, and the C98043-A7100 technology board, which manages optional fieldbus communication via PROFIBUS-DP. Together, these boards form the closed-loop control architecture that keeps large DC motors running at precise speeds under varying load conditions.

On the power side, the drive’s thyristor stack — typically a six-pulse or twelve-pulse bridge assembly — receives its gate signals directly from this firing board. Protecting that stack requires coordinated action from the drive’s built-in 6RA70 snubber network and external Siemens 3NE or 3NA fuse assemblies rated for the drive’s short-circuit current. Upstream, a Siemens SIRIUS 3RW soft-starter or a dedicated line reactor conditions the incoming supply, reducing harmonic distortion and protecting the thyristors from voltage transients.

For facilities running mixed AC and DC drive architectures, the C98043-A7002-L4-12 complements Siemens SINAMICS S120 and SINAMICS G120 variable-frequency drives that may control auxiliary motors on the same production line. Communication between the SIMOREG drive and the plant’s distributed control system is typically handled through a Siemens SIMATIC S7-300 or S7-400 PLC via PROFIBUS-DP, with the drive’s fieldbus interface board translating speed and torque setpoints in real time. In safety-critical zones, a Siemens SIRIUS 3SK safety relay module monitors emergency-stop circuits and provides safe-torque-off signals to the drive, ensuring personnel protection without requiring a full power-down of the control cabinet.

Terminal connectivity within the cabinet is managed through Siemens SIRIUS 8WA terminal blocks and 8WH busbar systems, which provide the organised, vibration-resistant wiring infrastructure that keeps signal integrity high even in environments subject to continuous mechanical shock. For remote diagnostics and predictive maintenance, the drive’s data can be surfaced through a Siemens SIMATIC HMI TP700 or TP1200 panel, giving operators real-time visibility of firing-angle values, current feedback, and fault codes without opening the cabinet door.

Application in Critical Infrastructure

In oil and gas upstream facilities, SIMOREG DC Master drives fitted with the C98043-A7002-L4-12 control the high-torque DC motors that drive mud pumps, drawworks, and top-drive systems on drilling rigs. These applications demand firing-angle precision across a wide speed range, from near-zero creep speeds during pipe-connection operations to full-speed drilling, all while the drive cabinet is exposed to hydrogen sulphide atmospheres and salt-laden sea air on offshore platforms.

In steel and metals production, the board governs the main drive motors of rolling mills, where strip tension must be maintained within tight tolerances at rolling speeds exceeding 1,000 metres per minute. The thermal cycling caused by proximity to reheat furnaces — where radiant heat can push cabinet ambient temperatures to the upper limits of the operating range — tests the board’s thermal stability continuously. Facilities that have standardised on the SIMOREG 6RA70 platform across multiple rolling stands benefit from the C98043-A7002-L4-12’s direct interchangeability, allowing a single spare board to cover multiple drive positions and minimising the spares inventory investment.

In mining operations, winder and hoist drives rely on SIMOREG DC Master systems for the precise speed and torque control required during man-riding and ore-hoisting cycles. Safety regulations in these environments mandate that drive components meet stringent reliability and traceability standards. The C98043-A7002-L4-12, sourced through TOPNLMS with full documentation and pre-shipment testing, satisfies the audit trail requirements that mine operators and their insurers demand.

In water and wastewater treatment plants, large DC pump drives controlled by SIMOREG systems handle the variable-flow demands of raw-water intake and effluent-discharge pumping stations. The continuous-duty cycle — often 8,760 hours per year with no planned shutdown — places exceptional demands on every component in the drive. Procurement teams at these utilities increasingly hold strategic spare boards such as the C98043-A7002-L4-12 on-site, recognising that the lead time for obsolete or long-delivery Siemens boards can exceed acceptable mean-time-to-repair targets.

In power generation and metallurgy, excitation systems for large synchronous generators and electrolytic rectifier systems for aluminium smelters both employ thyristor firing control technology closely related to the SIMOREG platform. Engineers familiar with the C98043-A7002-L4-12’s firing-pulse architecture can apply that knowledge directly to maintaining these allied systems, making the board a valuable reference component for training and cross-platform troubleshooting programmes.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating and storage conditions from the date of shipment. If a board fails within the warranty period, contact TOPNLMS at [email protected] with the order reference and a description of the fault. We will arrange return shipping, perform a failure analysis, and dispatch a replacement or repaired unit within an agreed lead time. Warranty does not cover damage caused by incorrect installation, overvoltage events beyond the drive’s rated surge immunity, or physical mishandling.

Q2: How is each board tested before shipment?
Every C98043-A7002-L4-12 unit undergoes a full functional inspection prior to dispatch. This includes visual examination of PCB traces, solder joints, and component condition; continuity and insulation checks on key signal paths; and where test fixtures are available, a powered functional verification of gate-pulse output timing. A test report is available on request for customers with quality-management system requirements.

Q3: Is this board compatible with all variants of the SIMOREG 6RA70 and 6RA24?
The C98043-A7002-L4-12 is the standard thyristor firing board used across the SIMOREG DC Master 6RA70 range and the earlier 6RA24 platform. Compatibility depends on the specific drive rating and firmware revision. TOPNLMS recommends customers provide their drive’s full nameplate data — including the complete 6RA70 order number and firmware version — when enquiring, so our technical team can confirm fit before shipment. This eliminates the risk of receiving an incompatible board variant.

Q4: Can TOPNLMS support long-term supply for sites with multiple SIMOREG drives?
Yes. TOPNLMS maintains strategic stock of high-demand SIMOREG spare boards and can support blanket-order agreements for customers managing fleets of 6RA70 or 6RA24 drives. For critical-infrastructure operators who cannot afford extended downtime, we offer priority-dispatch arrangements and can advise on recommended on-site spares holdings based on drive population and criticality. Contact [email protected] or call +86 18359293191 to discuss a supply agreement tailored to your maintenance strategy.
