Siemens C98043-A7001-L1 Original Industrial Spare SIMOREG Compatible: System Stability & Industrial Spare Maintenance Value

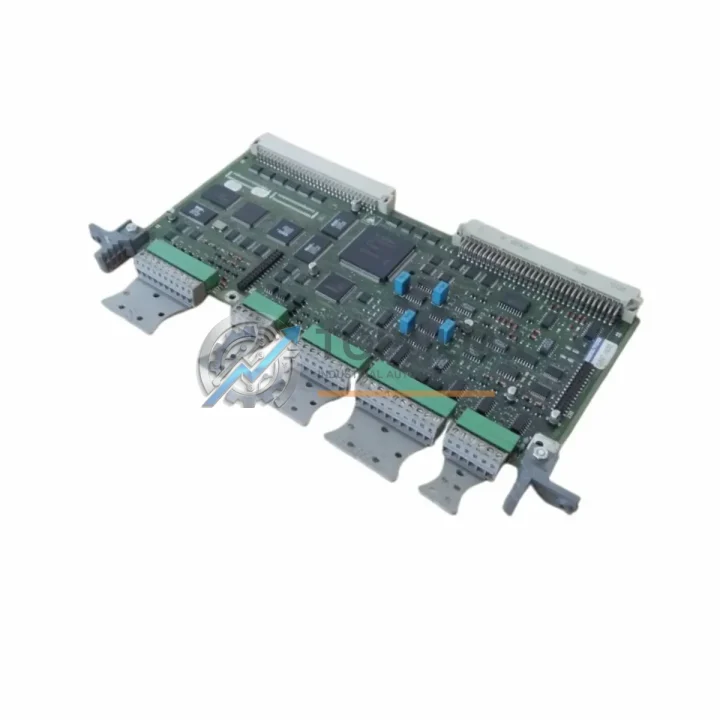

The Siemens C98043-A7001-L1 CUD1 Central Unit Drive Board is the core intelligence of the SIMOREG DC Master 6RA70 series DC drive system — one of Siemens’ most widely deployed and long-running DC drive platforms in heavy industrial environments. Whether you are managing a steel mill, paper machine, crane system, extruder line, or any process requiring precise DC motor speed control, this board is the operational heart of your drive cabinet. Sourced as an original Siemens spare part manufactured in Germany, this unit delivers the exact firmware compatibility, signal integrity, and thermal performance required for mission-critical replacement without system reconfiguration.

In industrial maintenance environments, unplanned downtime caused by drive board failure is among the most costly events a facility can face. The C98043-A7001-L1 CUD1 board governs all closed-loop control functions of the 6RA70 drive, including armature current regulation, field current control, speed feedback processing, and serial communication with supervisory SCADA or DCS systems. When this board fails — whether due to capacitor aging, firmware corruption, overvoltage transients, or thermal fatigue — the entire DC drive axis goes offline. Having a verified original spare on the shelf is the single most effective strategy to reduce mean time to repair (MTTR) and protect production continuity.

Critical Technical Specs

Preventive Maintenance Strategy

Experienced maintenance engineers know that a DC drive system is only as reliable as its weakest component. When scheduling a planned shutdown or responding to a 6RA70 fault alarm, the C98043-A7001-L1 CUD1 board should never be inspected in isolation. A comprehensive drive cabinet audit during the same maintenance window dramatically reduces the risk of repeat failures and secondary callouts.

Begin with the power supply section: the 6RA70 drive relies on a stable internal 24 VDC logic supply board (such as the C98043-A7004 series power supply card) to keep the CUD1 operational. A degraded power supply can cause intermittent CUD1 resets, parameter loss, or false fault codes — symptoms that are frequently misdiagnosed as CUD1 board failure. Replacing or bench-testing the power supply card alongside the CUD1 is standard practice in professional DC drive overhaul procedures.

Next, inspect the pulse generation and firing board (C98043-A7002 series), which translates CUD1 control signals into thyristor gate pulses. Degraded firing boards cause asymmetric phase control, increased armature ripple, and motor heating — all of which accelerate CUD1 wear through abnormal feedback signals. Verifying the firing board condition during a CUD1 replacement prevents premature failure of the new board.

The field supply module and field current controller board should also be checked during the same intervention. In 6RA70 systems, the field circuit operates semi-independently but shares diagnostic communication with the CUD1. A failing field controller can trigger CUD1 fault codes F030 or F031, leading maintenance teams to incorrectly condemn the CUD1 board. Stocking a field controller spare alongside the C98043-A7001-L1 is a prudent inventory decision for facilities running multiple 6RA70 drives.

At the cabinet level, inspect all terminal blocks and signal wiring connected to the CUD1’s X100–X172 connector strip. Loose or corroded terminals on speed reference inputs, enable signals, and tachometer feedback lines are a leading cause of intermittent drive faults. Replacing aged terminal blocks and verifying cable shield grounding at this stage costs minutes but prevents hours of future fault-finding. Similarly, check the PROFIBUS-DP communication module (if installed) and its fiber-optic or copper interface cable — communication faults between the CUD1 and the plant DCS are a common source of nuisance trips in older 6RA70 installations.

For facilities managing legacy DC motor systems, also consider the condition of the motor’s tachometer encoder or analog speed feedback device. The CUD1 board processes speed feedback continuously; a worn tachometer or degraded encoder cable introduces noise into the speed control loop, causing hunting, instability, or overcurrent trips. Replacing the tachometer or its signal cable during a planned CUD1 swap eliminates a major source of post-repair callbacks.

Finally, review the drive’s cooling fan module and thermal sensors. The 6RA70 is a heat-generating thyristor converter, and the CUD1 board monitors internal temperature via NTC sensors. A failing cooling fan or blocked air filter causes thermal derating and, in severe cases, board damage. Stocking a replacement fan module and filter mat as part of your 6RA70 spare parts kit ensures that a CUD1 replacement is not undermined by thermal issues within weeks of installation.

Strategic Replacement Solutions

The Siemens SIMOREG DC Master 6RA70 series has been in production and field service for over two decades, and many installations continue to operate well beyond their original design life. Siemens has progressively reduced active support for older 6RA70 variants, making original spare parts increasingly difficult to source through standard distribution channels. The C98043-A7001-L1 CUD1 board is one of the most frequently requested 6RA70 spares globally, precisely because it is the component most likely to require replacement as drives age.

Unlike third-party repair services that return boards with unknown component substitutions and no traceability, sourcing an original C98043-A7001-L1 from a verified industrial spare parts supplier ensures full firmware compatibility, original Siemens component quality, and a clean maintenance record. Drop-in replacement requires no parameter re-engineering: the existing 6RA70 parameter set (P-list) is retained in the drive’s non-volatile memory and is fully compatible with the replacement CUD1 board, provided the firmware version is matched. This means a skilled maintenance technician can complete a CUD1 swap in under two hours, restoring full drive functionality without a Siemens service engineer on-site.

For facilities managing fleets of 6RA70 drives across multiple production lines, a strategic inventory of two to three CUD1 boards per site is a recognized best practice in industrial asset management. The cost of a single unplanned production stoppage — in lost output, emergency logistics, and overtime labor — typically exceeds the cost of maintaining a small CUD1 buffer stock by a factor of ten or more. Procurement teams evaluating total cost of ownership consistently find that pre-positioned original spares deliver the highest return on maintenance investment for legacy DC drive systems.

Support FAQ

Q1: Is the C98043-A7001-L1 compatible with all 6RA70 frame sizes?
The CUD1 board is the standard central unit for the SIMOREG DC Master 6RA70 series across multiple frame sizes. Compatibility depends on the specific drive variant and firmware version. Please provide your full drive nameplate data (order number and firmware version) when ordering to confirm direct interchangeability.

Q2: What is included in the 12-month warranty?
All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failure under normal operating conditions. Each board is tested prior to dispatch. Warranty claims are supported with full documentation and replacement or refund as applicable.

Q3: How is the board tested before shipment?
Units undergo functional verification including power-on self-test, I/O signal integrity checks, and communication interface validation before packaging. Test records are available upon request for quality-critical procurement processes.

Q4: Can I replace the CUD1 board without re-parameterizing the drive?
In most 6RA70 installations, drive parameters are stored in non-volatile memory on the drive’s parameter memory module, not on the CUD1 board itself. A direct CUD1 replacement typically does not require full re-parameterization. However, firmware version matching is recommended, and a parameter backup should always be performed before any board swap as a standard maintenance precaution.
