Siemens C98043-A1242-L1 Simoreg DC Master Replacement

Product Overview

Siemens C98043-A1242-L1 Simoreg DC Master Replacement: Smooth Transition from Legacy DC Drive Systems

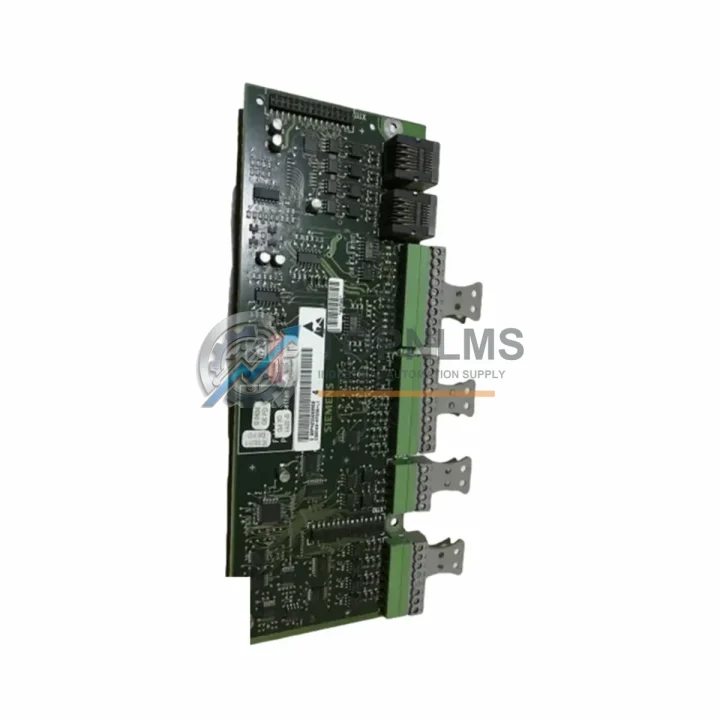

The Siemens C98043-A1242-L1 is the pulse encoder and speed feedback control board used in the Simoreg DC Master series of fully digital DC drive converters — one of the most widely deployed DC drive platforms in heavy industry, machine tools, paper mills, steel rolling lines, and extruder applications worldwide. As original Simoreg DC Master hardware ages and OEM support windows close, sourcing a verified replacement board becomes a critical path item for any plant maintenance or modernization project.

At TOPNLMS, we stock the C98043-A1242-L1 as a ready-to-ship replacement unit, fully tested and backed by a 12-month warranty. Whether you are performing an emergency swap on a failed spindle drive, executing a planned retrofit of an aging 6RA24 or 6RA70 series converter, or building a spare-parts buffer for a multi-drive production line, this board ships directly from our Xiamen warehouse with full documentation support.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Simoreg DC Master modernization rarely involves a single board in isolation. In most field scenarios, the C98043-A1242-L1 is replaced as part of a broader drive system restoration or upgrade. The CUD1 central control board (C98043-A7002) is the most common companion replacement — it handles parameter storage, PROFIBUS-DP communication, and closed-loop speed regulation, and its firmware version must be compatible with the L1 encoder board revision you are installing.

On the power side, the Simoreg DC Master power section (6RA7031, 6RA7075, 6RA7085, or higher current variants depending on motor rating) should be inspected for thyristor degradation and snubber capacitor condition whenever the control board is being replaced — a failed encoder board is sometimes a symptom of upstream power quality issues rather than an isolated component failure. The C98043-A1680 interface board and the C98043-A1691 firing pulse board are two additional boards in the Simoreg card stack that are frequently replaced together with the L1 board during a full drive overhaul.

For plants migrating from an older Simoreg K (6RA22 / 6RA24) platform to the Simoreg DC Master architecture, the wiring harness between the drive and the DC motor armature and field circuits typically remains reusable, but the encoder cable pinout must be verified against the new HTL/TTL input specification of the C98043-A1242-L1. A PROFIBUS-DP communication module (such as the CBC10 or CBP2 option board) can be added to the CUD1 slot to enable integration with a Simatic S7-300 or S7-400 PLC host controller, replacing older point-to-point analog speed reference wiring.

In control cabinet environments where multiple Simoreg DC Master units share a common DC bus, the 6SY7010-0AA00 fuse set and the 6RY1803-0GB00 fan assembly are standard consumables that should be refreshed during any planned board-level maintenance window. For spindle drive applications on CNC machine tools, the encoder feedback path from the spindle motor to the C98043-A1242-L1 board is critical for accurate speed regulation — verify that the incremental encoder (typically 1024 or 2048 PPR) is within specification before commissioning the replacement board.

Retrofit Guidance FAQ

Q: Can I replace the C98043-A1242-L1 without re-parameterizing the drive?
A: Yes, in most cases. The parameter set is stored on the CUD1 central control board, not on the L1 encoder board. Replacing the L1 board alone does not erase drive parameters. However, after installation, verify encoder feedback signal quality using the Simoreg DC Master diagnostic display (r-parameters) before returning the drive to production.

Q: Is the C98043-A1242-L1 compatible with both 6RA70 and 6RA24 series converters?
A: The L1 revision is primarily designed for the 6RA70 series. For 6RA24 applications, confirm the board slot designation and backplane connector pinout against your drive’s circuit diagram before installation. Contact our technical team with your drive nameplate data for confirmation.

Q: What encoder types are supported?
A: The C98043-A1242-L1 supports HTL (High Threshold Logic) and TTL incremental encoders. Encoder supply voltage and signal levels must match the board’s input specification. Do not connect a SIN/COS or EnDat absolute encoder directly to this board without an appropriate signal converter.

Q: Can this board be used in a PROFIBUS-DP networked drive system?
A: The L1 board itself handles encoder feedback only. PROFIBUS-DP communication is managed by the CUD1 board and the optional CBP2 communication module. Replacing the L1 board has no impact on PROFIBUS-DP configuration or network addressing.

Q: How do I verify the board is functioning correctly after installation?
A: Power up the Simoreg DC Master in no-load condition and monitor the speed actual value (r0021) on the operator panel or via STARTER/DriveMonitor software. A stable, noise-free speed feedback signal at standstill (zero) and under controlled jog confirms correct encoder board operation.

Q: What if my control cabinet has limited space for board removal?
A: The C98043-A1242-L1 is a plug-in card that slides into the Simoreg DC Master card cage. No special tools are required. The card cage design allows individual board replacement without disturbing adjacent boards or power wiring, minimizing downtime during the swap.

Warranty Assurance

Every C98043-A1242-L1 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each board undergoes functional verification including visual inspection, connector integrity check, and component-level testing to confirm it meets Siemens Simoreg DC Master operational specifications.

If a unit develops a fault within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or full refund — no lengthy RMA bureaucracy. Our average response time for warranty claims is under 24 hours, and replacement units are dispatched from Xiamen stock within 1–3 business days. For urgent production-down situations, expedited shipping options are available on request.

We maintain a standing inventory of Simoreg DC Master spare boards and components to support both emergency replacement orders and planned maintenance programs. Bulk procurement pricing is available for MRO departments and system integrators managing multi-site drive fleets.
