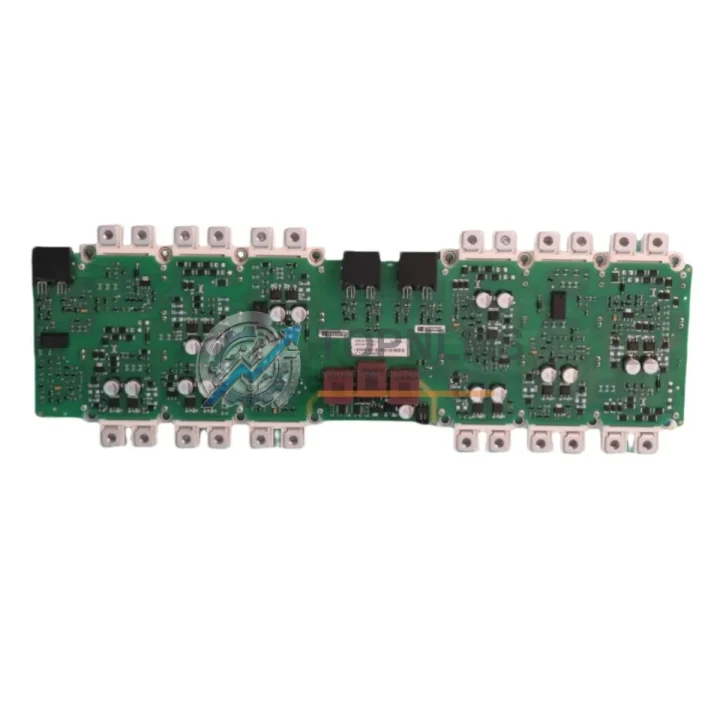

Siemens A5E45508683002 Replacement for GH180 NXGpro DC Drive

Product Overview

Siemens A5E45508683002 Replacement for GH180 NXGpro DC Drive: Seamless Transition from Legacy DC Drive Systems

The Siemens A5E45508683002 is the NXGpro DCR (DC Regulator) Controller module for the SINAMICS GH180 DC drive platform — a high-performance digital controller designed for demanding industrial applications including rolling mills, extruders, winders, hoists, and large-scale pump and fan drives. As legacy Siemens DC drive systems reach end-of-service milestones, plant engineers and procurement teams are actively seeking verified replacement and upgrade paths that minimize downtime, preserve existing wiring infrastructure, and maintain compatibility with established control architectures.

At TOPNLMS, we stock the A5E45508683002 as a direct replacement module for GH180 drive cabinets currently running earlier NXGpro firmware revisions or predecessor DCR controller boards. Our inventory is sourced from authorized industrial channels, fully tested prior to dispatch, and backed by a 12-month warranty. Whether you are executing a planned retrofit, responding to an unplanned failure, or building a critical spare inventory, this module ships from our Xiamen warehouse with full documentation support.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful GH180 DCR controller migration rarely involves a single module swap. In practice, field engineers replacing the A5E45508683002 will also evaluate the surrounding drive architecture to ensure the entire control loop remains stable after the upgrade. During commissioning, it is common to simultaneously inspect or replace the SINAMICS GH180 Power Interface Board and the GH180 Pulse Encoder Interface Module, both of which interact directly with the DCR controller over the internal drive bus.

For sites migrating from PROFIBUS-only architectures to PROFINET-capable networks, the CBE20 Communication Board Extension can be installed alongside the A5E45508683002 to enable PROFINET IO connectivity without replacing the entire drive cabinet. Plants that previously relied on SIMATIC S7-300 or S7-400 PLCs as the upstream controller can retain their existing PLC hardware and simply remap the drive telegram structure in the CPU’s hardware configuration — a significant cost saving compared to a full drive replacement.

Where the GH180 cabinet feeds into a larger DCS environment — for example, a SIMATIC PCS 7 or third-party DCS using PROFIBUS DP — the A5E45508683002’s native PROFIBUS interface ensures that existing field bus segments, DP addresses, and GSD files remain valid. No re-engineering of the fieldbus topology is required. Engineers should, however, verify that the PROFIBUS DP termination resistors and cable shielding at the drive end are intact, as degraded bus termination is a common root cause of intermittent faults after a controller board replacement.

For sites that use SINAMICS S120 or S150 drives in adjacent machine sections, the NXGpro platform shares a common parameterization philosophy with the broader SINAMICS family, reducing the learning curve for maintenance teams already familiar with STARTER or TIA Portal Startdrive. Terminal modules, SMC30 Speed Encoder Evaluation Modules, and VSM10 Voltage Sensing Modules used in S120 topologies are not directly interchangeable with GH180 hardware, but the diagnostic and commissioning workflow is consistent — an important consideration when planning multi-drive retrofit projects across a facility.

Finally, for applications where the GH180 drives a DC motor with a tachometer feedback loop, the integrity of the tachometer signal conditioning card and the analog input scaling on the DCR controller should be verified during the replacement procedure. TOPNLMS can supply technical documentation and pre-shipment test reports on request to support your site acceptance testing and commissioning sign-off.

Retrofit Guidance FAQ

Q: Can I replace the A5E45508683002 without re-wiring the GH180 cabinet?
A: Yes. The NXGpro DCR Controller uses the same terminal block layout and internal bus connector as predecessor GH180 DCR boards. No wiring changes are required for a direct module swap. Always isolate the drive and discharge DC bus capacitors before removing the controller board.

Q: Do I need to re-enter all drive parameters after replacement?
A: If a parameter backup was saved to the GH180’s MMC/SD memory card or exported via STARTER, parameters can be restored in minutes. If no backup exists, TOPNLMS can provide the factory default parameter set for the A5E45508683002 upon request, and your commissioning engineer will need to re-enter application-specific settings.

Q: Is the A5E45508683002 compatible with PROFINET, or only PROFIBUS?
A: The base A5E45508683002 supports PROFIBUS DP and USS natively. PROFINET IO capability requires the optional CBE20 Communication Board Extension, which slots into the controller’s option board interface. Existing PROFIBUS DP wiring and DP addresses are fully preserved.

Q: Will the physical dimensions fit my existing GH180 cabinet cutout?
A: Yes. The A5E45508683002 is a form-factor-compatible replacement for the GH180 DCR controller slot. No cabinet modifications, additional DIN rail space, or panel cutout changes are required.

Q: What if my upstream PLC is a SIMATIC S7-300 with an existing drive telegram configured?
A: The NXGpro DCR controller supports standard SINAMICS drive telegrams (e.g., Telegram 1, 20, 352). If your S7-300 hardware configuration already references the GH180 via a GSD file, the replacement module will respond to the same telegram structure. A brief online test after replacement is recommended to confirm cyclic data exchange.

Warranty Assurance

Every A5E45508683002 unit dispatched by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional verification check including power-on self-test, communication interface validation, and visual inspection for physical damage. Our quality control process is documented and available for review upon request.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our technical team at [email protected] with your order reference and a brief fault description. We will arrange a replacement unit or issue a credit note within the warranty terms. Our average response time for warranty inquiries is one business day.

For procurement teams requiring additional assurance, we can provide pre-shipment inspection reports, serial number documentation, and country-of-origin certificates. Bulk orders and critical spare inventory programs are supported with priority allocation and dedicated account management.

We ship globally from Xiamen, China, with DHL Express, FedEx International Priority, and UPS Worldwide Expedited as standard carrier options. Most in-stock orders are dispatched within 1–2 business days. Expedited same-day dispatch is available for urgent breakdown situations — contact us directly to arrange.
