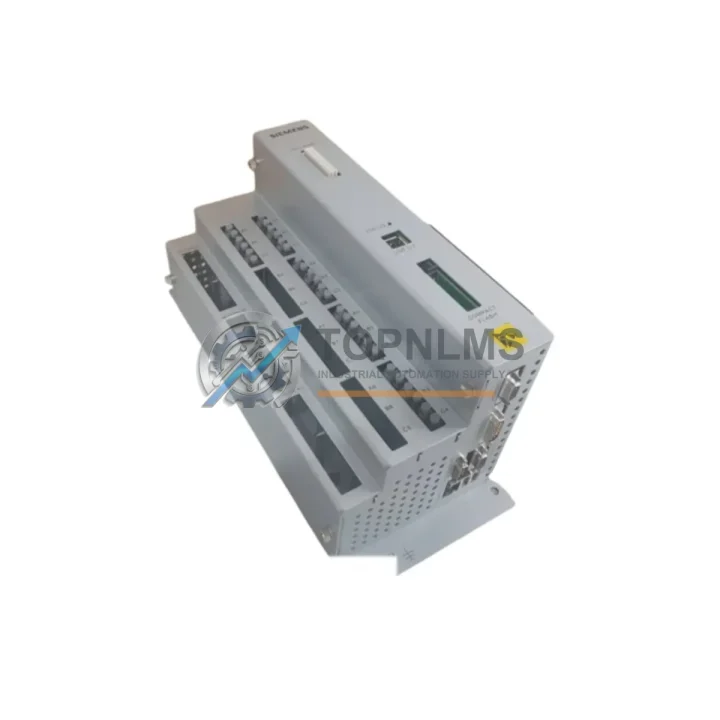

Siemens A5E37764609 Ruggedized MV Drive Controller: Industrial Resilience for Harsh Environments

The Siemens A5E37764609 is the NXGpro control board engineered for the SINAMICS MV series of medium-voltage variable-speed drives. Designed to operate reliably in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining galleries, vibration-intensive heavy machinery platforms, and zones with severe electromagnetic interference — this control board represents Siemens’ commitment to uncompromising uptime in critical infrastructure. Whether deployed in a petrochemical compressor drive train, a steel mill rolling mill drive, or a water treatment pump station, the A5E37764609 delivers the processing power, communication integrity, and fault-tolerance that modern industrial automation demands.

As the central intelligence of the SINAMICS MV drive system, the NXGpro control board manages all closed-loop speed and torque regulation, I/O coordination, protection logic, and fieldbus communication. Its ruggedized PCB construction — featuring conformal coating, reinforced connectors, and wide operating temperature tolerance — ensures stable performance even when ambient conditions fluctuate beyond standard industrial ratings. The board interfaces seamlessly with the SINAMICS MV power section, including the associated gate driver boards, fiber-optic interface modules, and DC link capacitor banks that form the complete drive assembly.

Rugged Specifications Table

Comprehensive Protection Solutions

The A5E37764609 NXGpro control board does not operate in isolation — it is the command center of a tightly integrated drive protection ecosystem. In a typical SINAMICS MV installation, the control board works in concert with the SINAMICS MV gate driver board (responsible for IGCT or IGBT firing signals), the SINAMICS MV fiber-optic interface module (which isolates high-voltage power sections from low-voltage control circuits), and the SINAMICS MV DC link voltage sensing board (which feeds real-time bus voltage data back to the NXGpro processor for overvoltage and undervoltage protection).

On the PLC and safety side, the A5E37764609 integrates with Siemens SIMATIC S7-300 or S7-400 PLCs via PROFIBUS DP, enabling coordinated process control across the entire production line. Safety-critical applications often pair the drive with a Siemens SIRIUS 3SK safety relay module or a SIMATIC ET 200SP fail-safe I/O module to enforce SIL 2 or SIL 3 emergency stop and safe torque-off (STO) functions. For power quality and protection upstream, a Siemens SENTRON 3WL air circuit breaker or 3VA molded case circuit breaker is commonly installed in the same MCC or control cabinet to provide short-circuit and overload protection for the drive input.

Communication integrity across the plant network is maintained through Siemens SCALANCE X industrial Ethernet switches and PROFIBUS DP repeaters, ensuring that the NXGpro control board maintains uninterrupted data exchange with the SCADA system and DCS even in environments with high electromagnetic noise from large motors, welding equipment, or high-frequency inverters. Terminal connections within the control cabinet are typically managed using Siemens SIRIUS ACT terminal blocks or compatible Phoenix Contact or Weidmüller DIN-rail terminal modules, all rated for the vibration and thermal cycling common in heavy industrial enclosures.

Application in Critical Infrastructure

In oil and gas facilities, the Siemens A5E37764609 is deployed in pipeline compressor drives and subsea pump variable-speed drive systems, where continuous operation at full load under high ambient temperatures and corrosive atmospheres is non-negotiable. The NXGpro’s advanced fault-logging and predictive diagnostics allow maintenance teams to schedule planned interventions rather than react to unplanned shutdowns — a critical advantage in offshore platforms or remote pipeline stations where spare parts logistics are complex.

In mining operations, the control board manages the drives powering conveyor belts, ball mills, SAG mills, and slurry pumps — applications characterized by heavy mechanical shock, pervasive silica dust, and wide voltage fluctuations from diesel generator sets. The board’s robust EMI filtering and conformal coating protect sensitive signal circuits from the harsh electrical environment generated by large DC motors and thyristor rectifiers operating nearby.

In power generation and utilities, including coal-fired, gas turbine, and hydroelectric plants, the A5E37764609 controls boiler feed pump drives and cooling water pump drives that must maintain precise flow rates under varying load conditions. Its compatibility with PROFINET IO enables integration into modern DCS architectures, including Siemens SPPA-T3000 and ABB System 800xA platforms, through standard OPC-UA gateways.

In water and wastewater treatment plants, the NXGpro control board drives large submersible pump motors and aeration blowers, where energy efficiency and soft-start capability reduce mechanical stress on pump impellers and extend mean time between failures (MTBF). The board’s PID control loop maintains constant pressure or flow setpoints automatically, reducing operator intervention and improving process stability.

In metallurgy and steel production, the A5E37764609 is found in rolling mill main drive systems and electric arc furnace electrode regulation drives, where rapid torque response and high dynamic performance are essential. The NXGpro’s vector control algorithm delivers sub-millisecond torque response, enabling precise tension control in continuous casting and hot rolling lines.
