Siemens A5E03383661 Original Industrial Spare IPC477C Compatible

Product Overview

Siemens A5E03383661 Original Industrial Spare IPC477C Compatible: System Stability and Industrial Spare Parts Maintenance Value

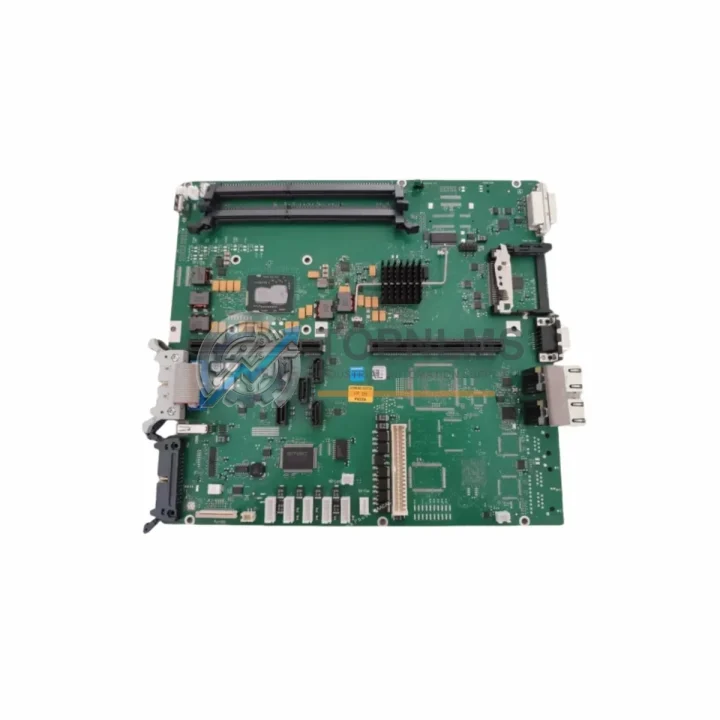

The Siemens A5E03383661 is the original embedded motherboard designed for the SIMATIC IPC477C Industrial Panel PC — a cornerstone computing platform widely deployed across manufacturing lines, process control stations, SCADA operator terminals, and MES workstations in heavy industry. When this motherboard fails or degrades, the entire HMI and supervisory control layer of the production cell is at risk. Sourcing a verified original replacement — not a counterfeit or incompatible substitute — is the single most important decision a maintenance engineer can make to restore system stability and minimize unplanned downtime.

At TOPNLMS, every A5E03383661 unit is sourced from authorized industrial supply channels, individually inspected, and shipped with a 12-month quality warranty. Whether you are executing an emergency corrective replacement or building a strategic spare parts buffer for a multi-site SIMATIC IPC477C fleet, this listing provides the exact component you need — tested, documented, and ready to deploy.

Critical Technical Specs Table

Preventive Maintenance Strategy

The SIMATIC IPC477C is rarely a standalone device — it operates as the nerve center of a broader control architecture. A motherboard failure in this platform typically signals that adjacent components have been operating under stress for an extended period. Experienced maintenance engineers treat an A5E03383661 replacement event as a trigger for a comprehensive cabinet and system audit, not merely a board swap.

During the replacement procedure, it is strongly recommended to inspect and — where service life is approaching — proactively replace the IPC477C’s internal power supply unit, which conditions the 24 V DC input and protects the motherboard from voltage transients. A degraded PSU is one of the leading causes of premature motherboard failure in panel PCs operating in electrically noisy industrial environments. Alongside the PSU, the system’s CFast or SSD storage module should be evaluated: storage media in continuous-write SCADA and historian applications accumulates wear cycles rapidly, and a failing drive will corrupt the OS image that the new motherboard depends on.

At the cabinet level, the maintenance window created by an IPC477C board replacement is an ideal opportunity to inspect the SIMATIC S7-300 or S7-400 PLC rack that the panel PC communicates with via PROFIBUS DP or Industrial Ethernet. CPU modules such as the 6ES7315-2EH14-0AB0 or 6ES7416-3XR05-0AB0 should be checked for firmware currency and battery backup status. Digital input/output modules — including 6ES7321 series DI modules and 6ES7322 series DO modules — should be inspected for contact wear and terminal tightness, as loose terminals in the same electrical loop as the HMI can introduce communication errors that are misdiagnosed as motherboard faults.

The PROFIBUS DP network connecting the IPC477C to field devices deserves particular attention. Bus termination resistors, DP connectors (such as the 6ES7972-0BB52-0XA0), and cable shielding integrity should all be verified. A degraded PROFIBUS segment will cause intermittent communication faults that stress the IPC477C’s network interface and can accelerate motherboard aging. If the installation uses Industrial Ethernet instead, the managed switches (e.g., SCALANCE X208 or X308) should be checked for port error counters and firmware updates.

For facilities running WinCC or WinCC flexible on the IPC477C, the replacement event is also the right time to verify that the SIMATIC IPC Memory Card or the backup CFast image is current. Maintaining a verified OS and application image backup eliminates the risk of extended downtime caused by software restoration failures after hardware replacement. Additionally, the UPS module (if installed — e.g., SITOP UPS1600) that protects the IPC477C from power interruptions should be tested for battery capacity, as UPS batteries in industrial environments typically require replacement every 3–5 years regardless of cycle count.

Finally, if the IPC477C is mounted in a control cabinet alongside SIMATIC ET 200SP or ET 200M distributed I/O stations, the interface modules and power supply segments of those stations should be included in the inspection checklist. A holistic maintenance approach — treating the A5E03383661 replacement as the anchor event for a full system health check — dramatically reduces the probability of a secondary failure within the same maintenance cycle.

Strategic Replacement Solutions

The SIMATIC IPC477C platform was introduced in the early 2010s and remains operational in thousands of production facilities worldwide. Siemens has progressively transitioned support toward the IPC477E and IPC477D successor platforms, meaning that A5E03383661 motherboards are no longer available through standard Siemens distribution channels in many regions. This supply gap creates significant risk for facilities that have not established a spare parts strategy.

TOPNLMS specializes in sourcing and qualifying original Siemens spare parts for legacy and end-of-life industrial platforms. The A5E03383661 available through this listing is the exact OEM board — not a third-party clone or reverse-engineered substitute — ensuring full compatibility with the IPC477C chassis, power delivery system, I/O backplane, and Siemens-licensed BIOS/firmware. This eliminates the compatibility validation burden that comes with aftermarket alternatives and allows maintenance teams to restore the system to its original certified configuration.

For facilities managing a fleet of IPC477C units, we recommend a minimum buffer stock of one A5E03383661 per three installed units, with a review cycle aligned to the platform’s expected end-of-support timeline. Procuring buffer stock now — while verified original units are available — is significantly more cost-effective than emergency sourcing during an unplanned outage, where premium pricing and extended lead times compound the cost of downtime. The 12-month warranty on every unit shipped by TOPNLMS provides additional assurance that buffer stock retains its value during storage.

For facilities considering a longer-term migration path, the A5E03383661 replacement also provides a stable operational window to plan a controlled upgrade to the SIMATIC IPC477E platform, which offers improved processing performance, extended OS support, and a longer Siemens product lifecycle commitment — without requiring changes to the panel cutout, mounting hardware, or field wiring.

Support FAQ

Q1: Is the A5E03383661 compatible with all variants of the SIMATIC IPC477C?
The A5E03383661 is the primary embedded motherboard for the SIMATIC IPC477C platform across its 15-inch and 19-inch display variants. Compatibility depends on the specific hardware revision of your IPC477C chassis. We recommend providing your full IPC477C order number (MLFB) when placing your order so our technical team can confirm the correct board revision for your unit before shipment.

Q2: What testing and inspection does each unit undergo before shipment?
Every A5E03383661 unit shipped by TOPNLMS undergoes a functional power-on test, visual inspection for physical damage, and connector integrity verification. Units are packaged in anti-static ESD-safe materials with desiccant to prevent moisture ingress during transit. A test report is available upon request for units designated for critical infrastructure applications.

Q3: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions as defined in the SIMATIC IPC477C technical documentation. It does not cover damage caused by incorrect installation, overvoltage events, or physical impact. To initiate a warranty claim, contact TOPNLMS at [email protected] with your order number, a description of the failure symptom, and photographic documentation. Replacement or repair will be arranged within 5 business days of claim verification.

Q4: How should the A5E03383661 be stored if purchased as buffer stock?
Store the board in its original ESD-safe packaging in a dry environment at 15–35 °C with relative humidity below 75%, away from direct sunlight and electromagnetic interference sources. Avoid stacking heavy objects on the packaging. Under these conditions, the board can be stored for 24–36 months without degradation of electrical performance. Inspect the board visually for oxidation on connectors before installation if stored for more than 18 months.
