Siemens A5E00842112 Original Industrial Spare SINAMICS Compatible

Product Overview

Siemens A5E00842112 Original Industrial Spare SINAMICS Compatible: System Stability & Industrial Spare Parts Maintenance Value

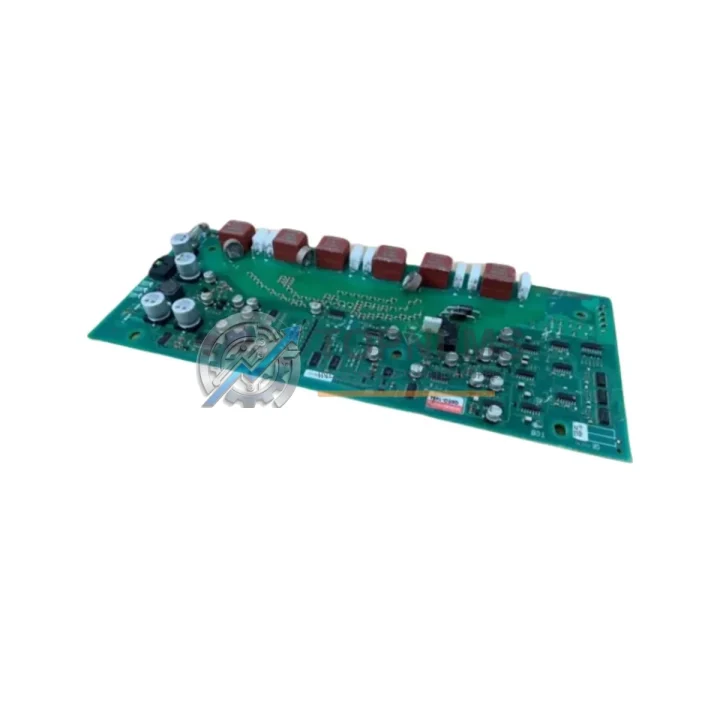

In modern industrial facilities, the reliability of variable-frequency drive systems is directly tied to production uptime. The Siemens A5E00842112 is an original SINAMICS PowerBlock Module — the core power stage responsible for converting DC bus voltage into controlled AC output to drive induction and synchronous motors across a wide range of industrial applications. Whether you are managing a continuous process line, a packaging machine, a conveyor system, or a heavy-duty pump and fan installation, this module sits at the heart of your drive cabinet’s power conversion chain.

Sourced as a genuine Siemens original spare part, the A5E00842112 is engineered to exact OEM specifications for the SINAMICS drive platform. It is not a compatible substitute or aftermarket replica — it is the same power stage assembly used in factory-built SINAMICS units, ensuring full electrical and mechanical interchangeability with the original installation. For maintenance engineers and procurement teams managing aging SINAMICS installations, stocking this module as a critical spare is one of the most effective strategies to eliminate unplanned downtime caused by power stage failure.

Critical Technical Specs

Preventive Maintenance Strategy

A PowerBlock module failure rarely occurs in isolation. In a SINAMICS drive cabinet, the power stage operates in close interdependence with several other critical components. A comprehensive preventive maintenance program should treat the A5E00842112 as part of a broader system inspection rather than a standalone replacement event.

When scheduling a planned shutdown to inspect or replace the A5E00842112, maintenance teams should simultaneously evaluate the SINAMICS Control Unit (such as the CU320-2 DP or CU240E-2) for firmware currency and parameter backup integrity. The DC link capacitor bank within the same drive frame should be checked for capacitance degradation, as capacitor aging is a leading contributor to DC bus instability that accelerates power stage stress. The Line Module or Active Infeed Module feeding the DC bus should be inspected for ripple and harmonic distortion.

On the signal side, the DRIVE-CLiQ communication cables connecting the PowerBlock to the Control Unit are a frequent source of intermittent faults — inspect connectors for corrosion and cable routing for mechanical wear. The Sensor Module Cabinet-Mounted (SMC) units used for encoder feedback should be verified for signal integrity, as encoder errors can cause the drive to command abnormal current through the power stage. If the installation includes a Braking Module and braking resistor, confirm that the resistor’s thermal protection is functional and that the chopper circuit is not contributing to DC bus overvoltage events.

At the cabinet level, inspect 24 VDC SITOP power supply modules that power the control electronics — an unstable 24 V rail is a common root cause of spurious drive faults that are misdiagnosed as power stage failures. Check terminal blocks and busbar connections for torque compliance and signs of thermal cycling damage. If the drive feeds a motor through an output filter, inspect the dV/dt filter or sine-wave filter for capacitor condition and connection integrity. Finally, review the fan and cooling system of the drive enclosure — blocked airflow is the single most common cause of premature IGBT failure in PowerBlock modules operating in dusty or high-ambient-temperature environments.

Stocking the A5E00842112 alongside these associated components — particularly the Control Unit, DRIVE-CLiQ cables, SITOP PSU, and braking module — as a coordinated spare parts kit gives maintenance teams the ability to restore a failed drive system within hours rather than days, dramatically reducing the financial impact of unplanned production stops.

Strategic Replacement Solutions

Many industrial facilities operating SINAMICS installations commissioned in the 2005–2015 period are now encountering end-of-service-life challenges. Siemens has progressively transitioned older SINAMICS hardware variants to limited availability or obsolescence status, making original spare parts like the A5E00842112 increasingly difficult to source through standard distribution channels.

Procuring the A5E00842112 as a direct OEM replacement eliminates the engineering risk associated with third-party compatible modules, which may differ in IGBT gate drive characteristics, thermal interface specifications, or firmware handshake protocols. A genuine Siemens PowerBlock module slots directly into the existing drive frame without parameter reconfiguration, mechanical modification, or re-commissioning of the Control Unit — the replacement technician simply follows the standard Siemens swap procedure documented in the SINAMICS hardware installation manual.

For facilities managing multiple SINAMICS drive cabinets across a plant, a strategic approach is to maintain at least one A5E00842112 per drive frame size in the on-site spare parts store. This inventory posture, combined with a documented replacement procedure and trained maintenance personnel, reduces mean time to repair (MTTR) for drive failures from days to under four hours — a critical metric for high-OEE production environments. Procurement teams should also consider the total cost of ownership: the cost of a single production hour lost to an unplanned drive failure typically exceeds the cost of stocking two or three spare PowerBlock modules by a significant margin.

Support FAQ

Q1: Is the A5E00842112 a new original part or a refurbished unit?
All units supplied are either original new (factory-sealed) or surplus new (unused, removed from original packaging for inspection). No refurbished or repaired units are supplied. Each unit undergoes functional verification testing before dispatch, and a 12-month warranty is provided from the date of shipment.

Q2: Which SINAMICS drive models is the A5E00842112 compatible with?
The A5E00842112 is designed for the SINAMICS platform, with primary compatibility across the S120, G120, G130, and G150 drive families in the applicable power and voltage frame. We recommend confirming the exact drive model and frame size against your existing installation documentation or contacting us with your drive nameplate data for compatibility verification before ordering.

Q3: How quickly can the module be shipped, and what documentation is provided?
Orders are typically dispatched within 1–3 business days following payment confirmation. International shipment is available via DHL Express, FedEx International Priority, or EMS depending on destination. Each shipment includes a packing list and, where available, original Siemens packaging and labeling. A certificate of conformity or test report can be provided upon request.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions as specified in the Siemens SINAMICS hardware documentation. It does not cover damage resulting from incorrect installation, overvoltage events, environmental contamination, or operation outside rated parameters. In the event of a warranty claim, contact us at [email protected] with the order reference, a description of the fault, and any available drive fault codes. We will arrange return logistics and replacement or refund as appropriate.
